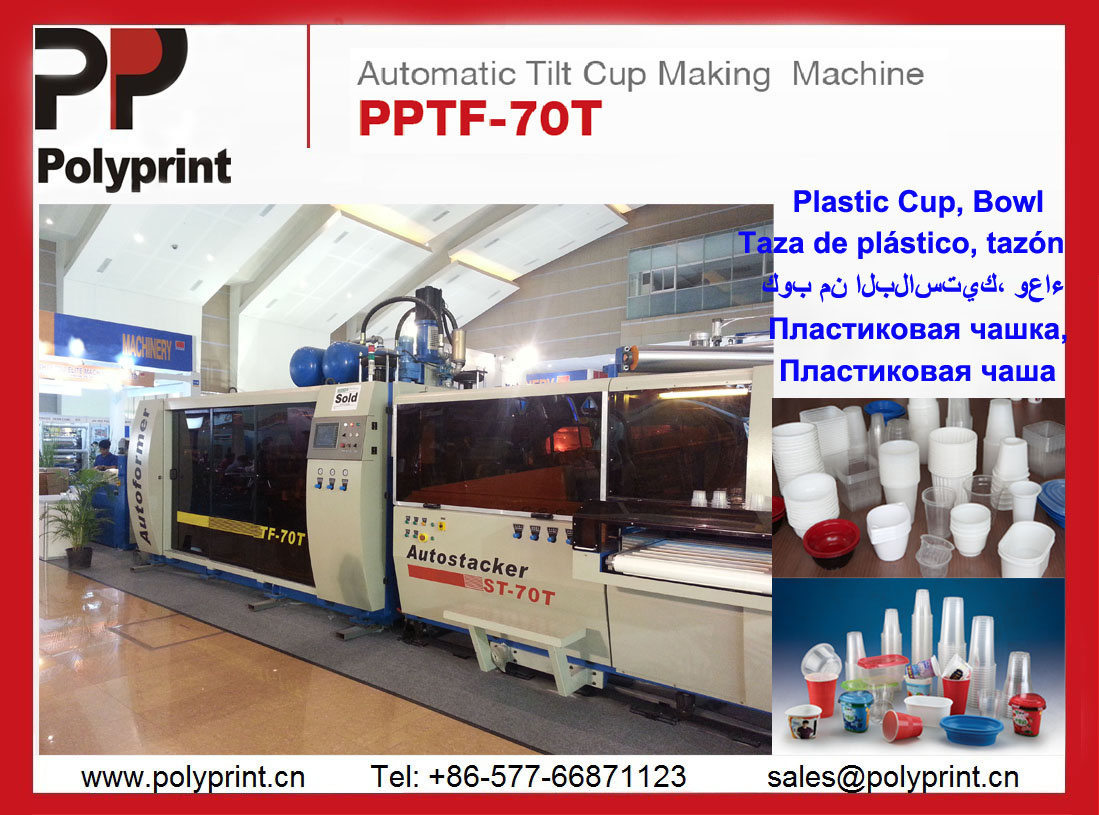

Plastic Cup Tilting Thermoforming Machine (PPTF-70T)
| Price: | US $ 165000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | PPTF-70T |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fully Automatic: | Servo Plug Motor |
Product Description
Products Description:It is suitable for PP, HIPS, PVC and PET sheet.
PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
FEATURE:
- Rapid mould changing device
- Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
- Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
- Automatic stacker system
- PLC and humanized color touch screen control operation interface.
- Mould automatic memory system.
Technical Parameter:
| 1 | Model | PPTF-70T | PPTF-70T-H | PPTH-80T |
| 2 | Max. Tool Size with Pneumatic Clamp Frame | 685X320mm | 685X320mm | 780X500mm |
| 3 | Max. Forming Depth | 130mm | 180mm | 200mm |
| 4 | Max. Sheet Width | 720mm | 735mm | 850mm |
| 5 | Sheet Thickness Range | 0.35-2.2mm | 0.35-2.5mm | 0.4-2.5mm |
| 6 | Clamping Force | 300KN | 350KN | 750KN |
| 7 | Max. Dry Speed | 45cycles/min | 45cycles/min | 40cycles/min |
| 8 | Upper/lower Heating Power | 70/60kw | 70/60kw | 80/70kw |
| 9 | Air Pressure | 7-8.5bar | 7-8.5bar | 7-8.5bar |
| 10 | Total Installed Power | 160kw | 160kw | 200kw |
| 11 | Machine Dimension | 12X4X3.5m | 12X4X3.5m | 13X4.5X3.8m |
| 12 | Machine Weight | 12000kg | 12000kg | 15000kg |
Our services:
1. warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3. Quotation: valid for 60days.
Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
