Prod Model: |
EBIL-GTHJ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
as Request |
Color: |
as Request |
Finishing: |
Powder Coated |
Quality Control: |
ISO9001:2008,CE,SGS |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Fixed |
Weight: |
150-500kg |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Height: |
According to You Request |
Product Description

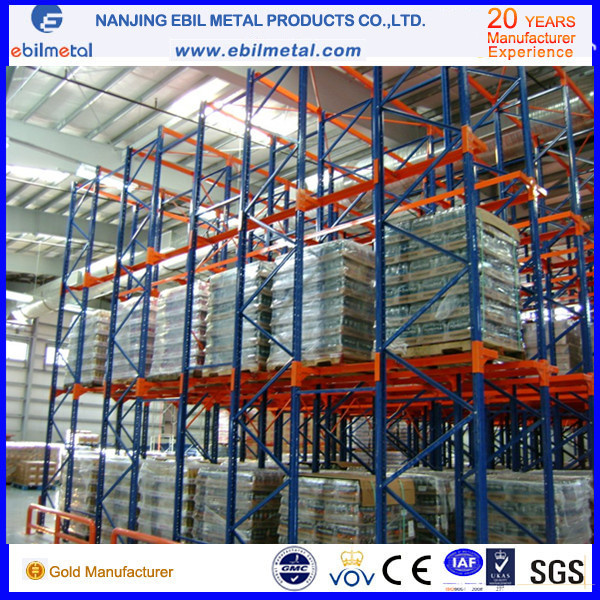

Popular Cold Rolled Strong High Capacity Warehouse Drive in Rack:Description of drive in rack

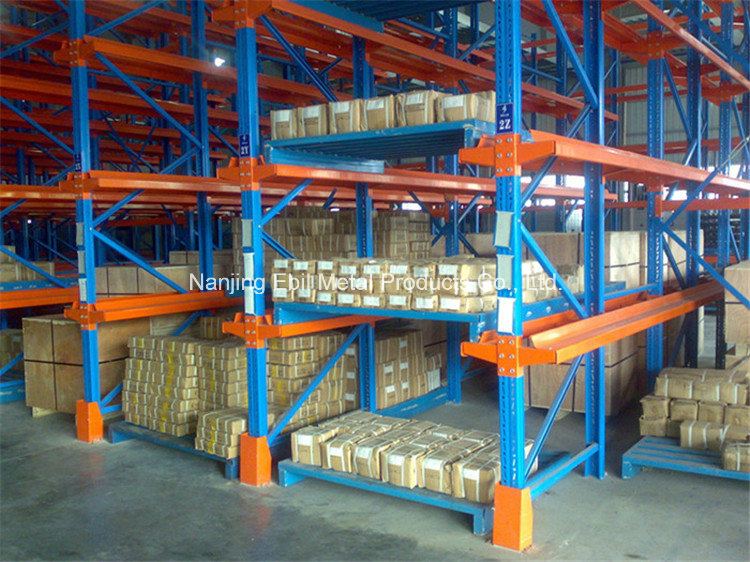

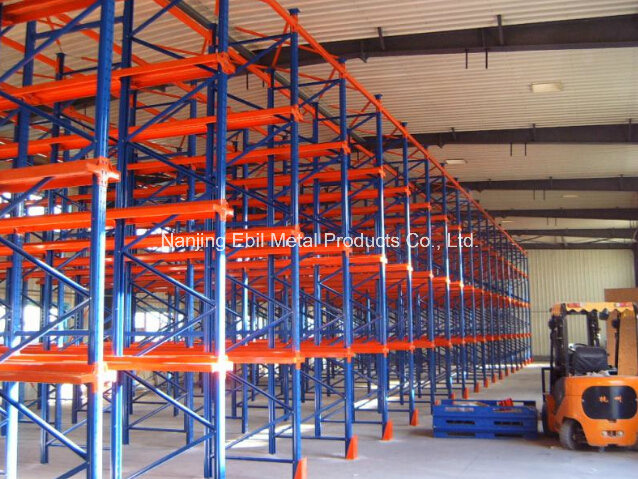

Heavy Duty Drive-In Pallet Racks for High-Density Storage Drive-In Racks allow a lift truck to enter the rack from one side to pick up or pull out pallets. This is done because pallets can slide backwards on a continuous rail. Forklifts drive into the rack to access pallets two or more deep. You are limited in the depth of storage for a particular bay by the size of your facility.
1. Style | Pallet style, easy installation and adjustable. |
2. Certification | CE, ISO9001: 2008 |
3. Suitable for pallet size | 800/900/1000/1100/1200/1300/1400 * 800/1000*1200mm |
4. Customized pallet sizes accepted | Yes |
5. Pallet weight | 500-2500kgs |
6. Pallet in depth | 3-12 pallets |
7. Pallet in height | 3-7 pallets |
8. Storage style | FIFO or FILO |
9. Standard color | Blue, orange, green, red, grey |
10. Special color available | Yes |
11. MQQ | 10 units |
12. Delivery time | 7 -15days for 2*40' containers |
13. Standard exporting package | Metal strip, film, paper board and master carton |
Drive-In racks are typically subject to more abuse than selective racks due to the way they are utilized, so rack integrity and strength are important factors. It is ideal rack for cooler or freezer applications.This is a last-in, first-out arrangement for your pallets.
Drive-In & Drive-Through Racks offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Racking can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.
Description:1) Very high utility ratio of the warehouse
2) Goods can first in - first out or first in - last out
3) Structural steel construction for durability
4) Pallet positions configure from 2 to 5 deep and 2 to 5 high deal for roofing
5) Finish: Powder coating.
Advantage:1. Low MQQ: Meeting actual small requests;
2. OEM Acceptable: We can produce you design;
3. Good service: We treat clients as friend;
4. Good quality: We have strict quality control system. Good reputation in the market;
5. Fast delivery: Scientific production arrangement to ensure the fast delivery.
Please inform us of the following information for quick quotation:1. Drawing (if available)
2. Size of your warehouse
3. Size of racking (H*W*L)
4. How levels of the racking?
5. Loading capacity of each level?
6. (RAL) Color you want.
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
For new and old import & export customers supply:
1. Solutions simple /regular warehouse rack/storage metal shelving, high-end warehouse / complete large-scale Intelligent Storage logistics system(6000MT/PER MONTH) warehouse planning, conveyance equipment; Various racking and storage management.; Optimize your warhouse; Economize space and cost.
2. A professional team, experienced engineers, advanced manufacturing equipment, particular production technology; Ebilmetal strictly implements ISO9001 Standard in all peration; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3. Supply Specialized installation guidance and after services that anytime and any country if customer need
4. Reply your inquiries within 24 hours anytime and anywhere
Intelligent Manufacturing, Exclusive Customized
Create value services for the clients who approval our brand
