Home LED Light Products Powder Coated Warehouse Storage Stacking Rack

Powder Coated Warehouse Storage Stacking Rack

Powder Coated Warehouse Storage Stacking Rack
Price: US $ 40-60/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
Prod Model: HML-NR1302
Company Type: China Professional Manufacturer
Product Warranty: 1 Year
Exterior Dimension: 1300X1200X1200 L*W*H mm
Interior Dimension: 1200X1150X1000 L*W*H mm
Loading Capacity: 1000kg
Finish: Powder Coating
Product Shelf Life: up to 3 or 5 Years Against Proper Handling
Remark: Customized and OEM Support
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 0-5m
Closed: Open
Development: Conventional
Serviceability: Common Use
Weight: 1000kg

Product Description

Powder coated warehouse storage stacking rack
Specification of stacking rack
Same design, defferent sizes
Model No. Exterior DimensionInterior DimensionLoading
capacity
StackabilityTotal
container
 LxWxH(mm) LxWxH(mm) kg
HML-NR13021300x1200x12001200x1150x1000100041x40'HQ
HML-NR13041300x1200x14001200x1150x120010004
HML-NR14021400x1200x12001300x1150x1000100041x40'HQ
HML-NR14041400x1200x14001300x1150x120010004
HML-NR15021500x1200x12001400x1150x1000100041x40'HQ
HML-NR15041500x1200x14001400x1150x120010004
MaterialMild steel Q235
FinishPowder coating
Available designDetachable/undetachable
Application areaWarehouse, logistic, recycling, etc.
RemarkCostomized or OEM support
Key features

Exclusive Inverted Angles

  • Safe, secure and simple stacking
  • Increased handling and storage flexibility
  • By positioning the bottom angles of the top rack over the stacking tubes of the unit below, the Nestainer rack can be guided into it's stacked position for full column-to-column loading

Stacking rack details(stackable and detachable)

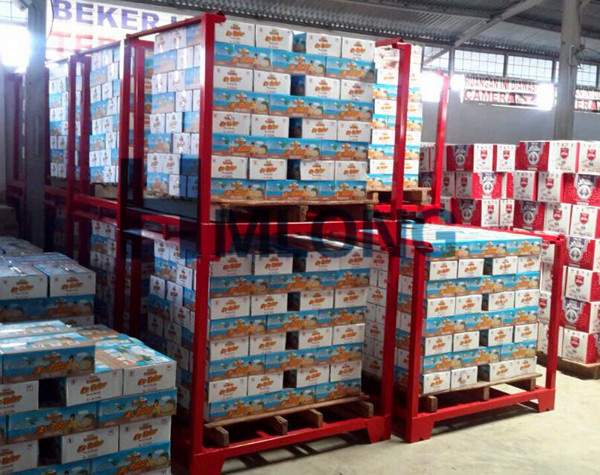

Application of stacking rack

Other kinds of stacking rack



Company Introduction



FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195

2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.

3, What is the payment terms I can get?
---TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?
-- A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor
   storage)

   B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor
and cold storage)

   C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)


5, What is the loading capacity?
 ---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldn't find the right model from the products list, is custom
size available?

---Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.

9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment


10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size

11 What is your average production lead time?
--2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for z
inc plated and powder coated products, no limitation for hot dip galvanized)
.
Contact Person:

Mary Kong

Dalian Huameilong Metal Products Co.,Ltd.
Website: www.hmlwires.com
Tel: +86-411-83615995
Dalian Huameilong Metal Product Co. Ltd, one of the most professional manufactures in North China founded in 1993, which specializing in transportation security facilities, material handling equipment and welded wire mesh products.

We can supply nearly 1.000 tons of mesh products each month based on the modern 15.000squaremeter office and factory premises. The company has sheet metal and tube bending, cutting, punching, as well as electronically controlled multiple projection welding machines to manufacture components and other finished products. With our own powder coating system, we are capable of meeting almost every decorative and functional powder coating need. All production and test personnel have received have received the strict training. Only the best quality product could pass our stringent grading process.

Timely service, highly quality products and competitive prices have given us a great reputation among clients worldwide. Since established foreign trade department in 2004, we have accumulated successfully export experience in North American, European, Australian and Japanese market. And we have successfully taken on many domestic isolated gate projects of national items, such as the United Arab Emirates Dubai F1 circuit, Shanghai Floating Magnetic Train Project, Shanghai Pudong International Airport Flying Area Project and Dalian Fast Tram, many of which are highly commend and regarded as popularized items in some cites and provinces.

We not only value existed achievements, but also continuously develop new technology and products to satisfy different requirement from different levels, which is regarded as our invariable purpose wishing a steady and continuous development for ever.

If you are interested in any of our products, please feel free to contract us for more information. We'll be please to create custom orders for you based on your needs. We are looking forward to established business relations with customers from all over the world.
