Powder Coating Flare Big Size Wire Decking for Pallet Rack
| Price: | US $ 5-20/Piece |
|---|---|
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | Multi-beam deck |
|---|---|
| Company Type: | China Professional Manufacturer |
| Product Warranty: | 1 Year |
| Exterior Dimension: | 1000mm*1340mm |
| Loading Capacity: | 800kg |
| 1*40hq: | 1700pieces |
| Finish: | Zinc Plated/ Hot DIP Galvanized/Powder Coating |
| Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
| Remark: | Customized and OEM Support |
| Material: | Steel Wire |
| Hole Shape: | Square |
| Surface Treatment: | Galvanized |
| Color: | White |
| Type: | Wire Mesh |
| Certification: | BV |
| Condition: | New |
| Mesh Size: | 50*50mm or 50*100 mm |
| Application: | Warehouse |
Product Description

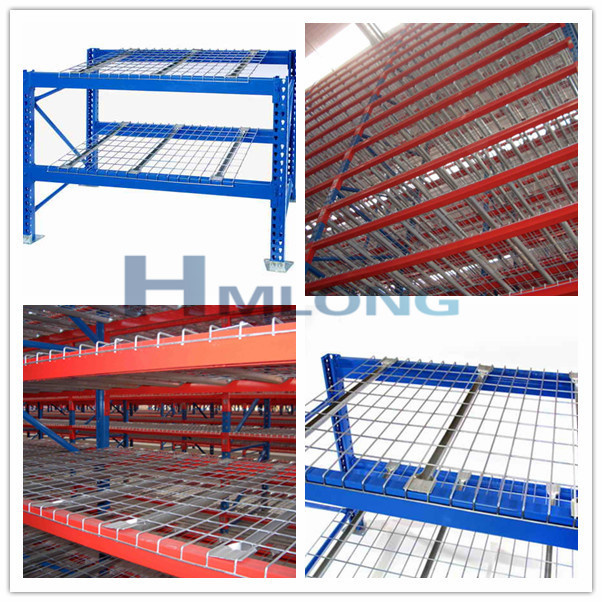

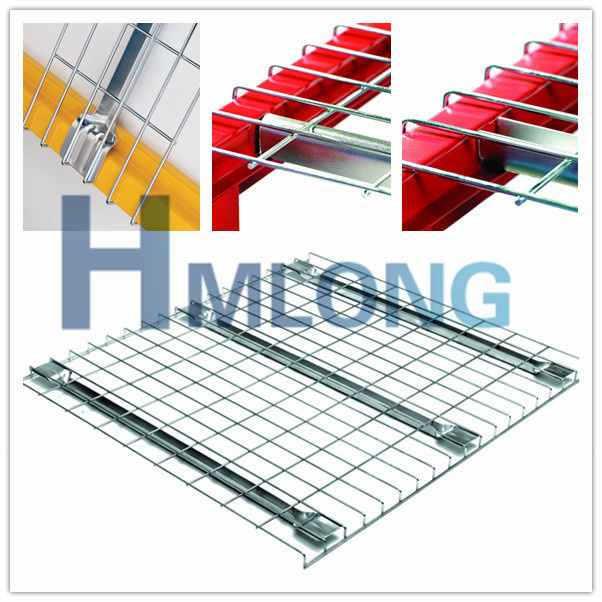

Powder coating flare big size wire decking for pallet rackF channel(for box/structural beam), Inverted U channel & U channel(for step beam)
Specifications of wire decking
| Euro Sizes | ||
| A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg |
| Mesh 50×150 mm | Mesh 50×100mm | Mesh 50×100mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 600×880 | 1000×880 | 1000×1340 |
| 1000×880 | 1050×880 | 1050×1340 |
| 1050×880 | 1100×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1340 |
| American Sizes | ||
| Standard U-channel | Flared channel | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Choose from a variety of:
- Wire diameters 4.5mm, 5mm, 5.5mm, etc.
- Mesh apertures 50*50mm, 50*100mm, 25*100mm, etc.
- Channel thickness 1.5mm, 1.8mm, 2mm, etc.
- Channel quantities 3pcs, 4pcs, 5pcs, etc.
Tell us what you need and we'll make our wire decking to suit your specific application based on loading capacities, equipment used, load handling and other criteria.

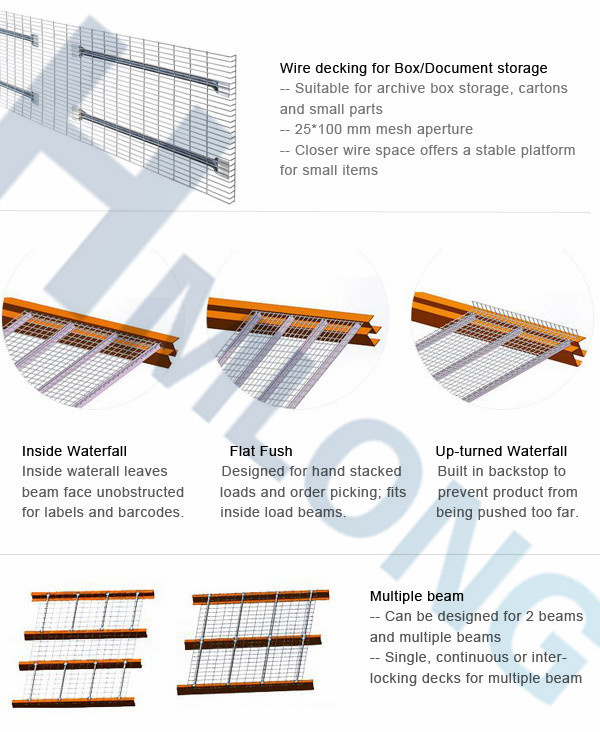

Other designs of wire decking in Huameilong
Company Information
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)
