Powder Coating Warehouse Stacking Storage Nestainer Rack

Powder Coating Warehouse Stacking Storage Nestainer Rack
Price: US $ 40-60/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
Prod Model: HML-NR1302
Company Type: China Professional Manufacturer
Product Warranty: 1 Year
Exterior Dimension: 1300X1200X1200 L*W*H mm
Interior Dimension: 1200X1150X1000 L*W*H mm
Loading Capacity: 1000kg
Finish: Powder Coating
Product Shelf Life: up to 3 or 5 Years Against Proper Handling
Remark: Customized and OEM Support
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 0-5m
Closed: Open
Development: Conventional
Serviceability: Common Use
Weight: 1000kg

Product Description

Powder coating warehouse stacking storage nestainer rack
Specification of nestainer rack
Same design, defferent sizes
Model No. Exterior DimensionInterior DimensionLoading
capacity
StackabilityTotal
container
 LxWxH(mm) LxWxH(mm) kg
HML-NR13021300x1200x12001200x1150x1000100041x40'HQ
HML-NR13041300x1200x14001200x1150x120010004
HML-NR14021400x1200x12001300x1150x1000100041x40'HQ
HML-NR14041400x1200x14001300x1150x120010004
HML-NR15021500x1200x12001400x1150x1000100041x40'HQ
HML-NR15041500x1200x14001400x1150x120010004
MaterialMild steel Q235
FinishPowder coating
Available designDetachable/undetachable
Application areaWarehouse, logistic, recycling, etc.
RemarkCostomized or OEM support
Key features

Exclusive Inverted Angles

  • Safe, secure and simple stacking
  • Increased handling and storage flexibility
  • By positioning the bottom angles of the top rack over the stacking tubes of the unit below, the Nestainer rack can be guided into it's stacked position for full column-to-column loading

Nestainer rack details(stackable and detachable)

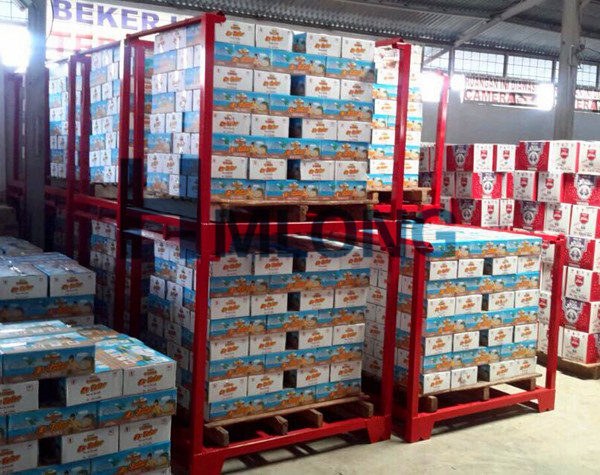

Application of nestainer rack

Other kinds of nestainer rack



Company Introduction



FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195

2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.

3, What is the payment terms I can get?
---TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?
-- A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor
   storage)

   B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor
and cold storage)

   C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)


5, What is the loading capacity?
 ---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldn't find the right model from the products list, is custom
size available?

---Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.

9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment


10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size

11 What is your average production lead time?
--2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for z
inc plated and powder coated products, no limitation for hot dip galvanized)
.
