PP Cup/Tray for Planting Seeds Making Machine (PP-70T)
| Price: | US $ 90000-150000/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | PPTF-70 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: | 13000kgs |
| Speed: | 40cycles/Min |
| Forming: | Servo Motor |
| Servo Motor: | Yaskawa |
| Max.Sheet Width: | 720mm |
Product Description

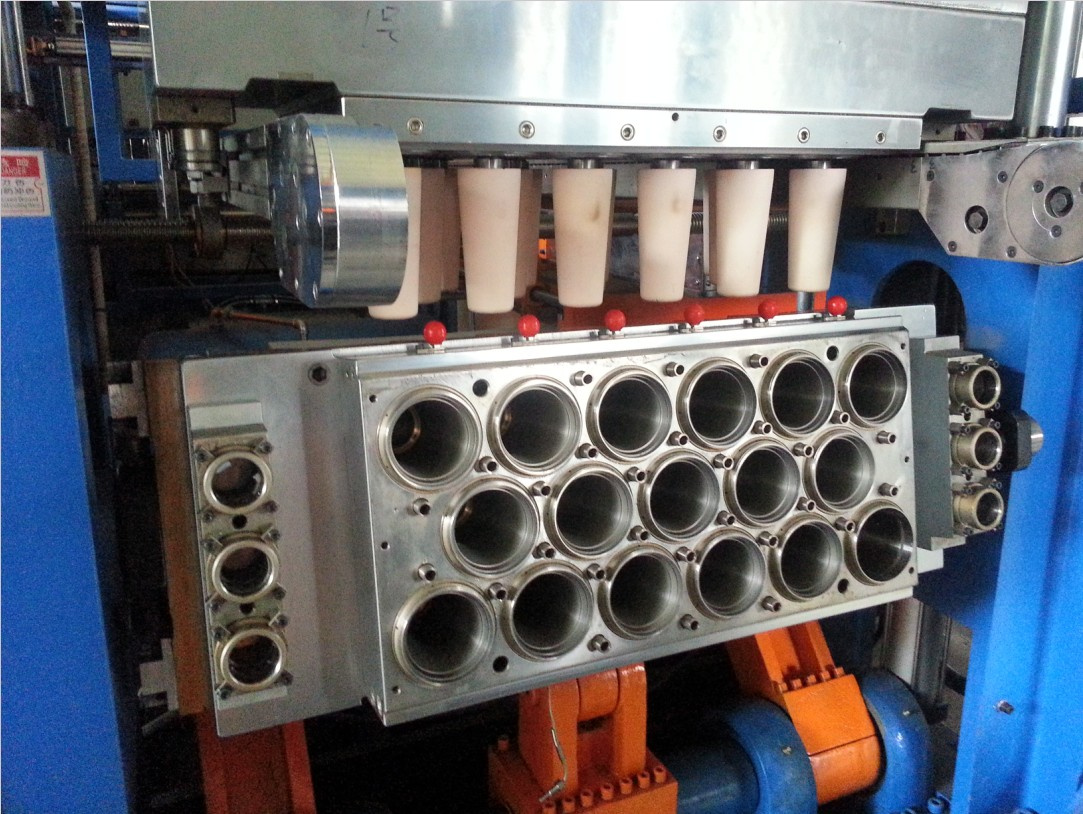

APPLICATION:PP-70T Automatic Thermoforming Machine suitable for PP, HIPS, PVC and PET sheet.
It special designed for high quality cups.
Servo motor for sheet feeding and plug system.
The whole line controlled by PLC.
It is operates man-interface, which can works all by itself.
Feeding system droved by chain and it adopt cam forming and cutting method.
This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking finished one process.
FEATURE:
Rapid mould changing device
Width of chain holder design with tension
Heating adopt Up and down ceramic heater controlled by SSR and PID temperature
PLC and humanized color touch screen control operation interface.
Mould automatic memory system.
| 1- Max. Forming Area | 680*320mm |
| 2- Max. Forming Depth | 160mm |
| 3- Sheet Thickness | 0.3-2.0mm |
| 4- Speed | 10-35 Cycles/min |
| 5- Clamping Force | 350KN |
| 1- Max. Forming Area | 680×325mm |
| 2- Max. Forming Depth | 160mm |
| 3- Sheet Width Range | 500-700mm |
| 4- Sheet Thickness | 0.3-2.0mm |
| 5- Max. Roller Diameter | Φ1200mm |
| 6- Air Pressure | 0.7mpa |
| 7- Water Consumption | 50L/min |
| 8- Air Consumption | 2000L/min |
| 9- Speed | 10-35 Cycles/min |
| 10- Power (Three Phase Four Wire) | 3×380V+NP+PE.50HZ |
| Heating Power | 120kw |
| 12- Main Motor Power | 11kw |
| 13- Feeding Motor Power | 5kw |
| 14- Scrap Rewinding Motor Power | 0.55kw |
| 15- Machine Weight | 10000kg |
| 16- Dimension | 14000×3000×3500mm |
