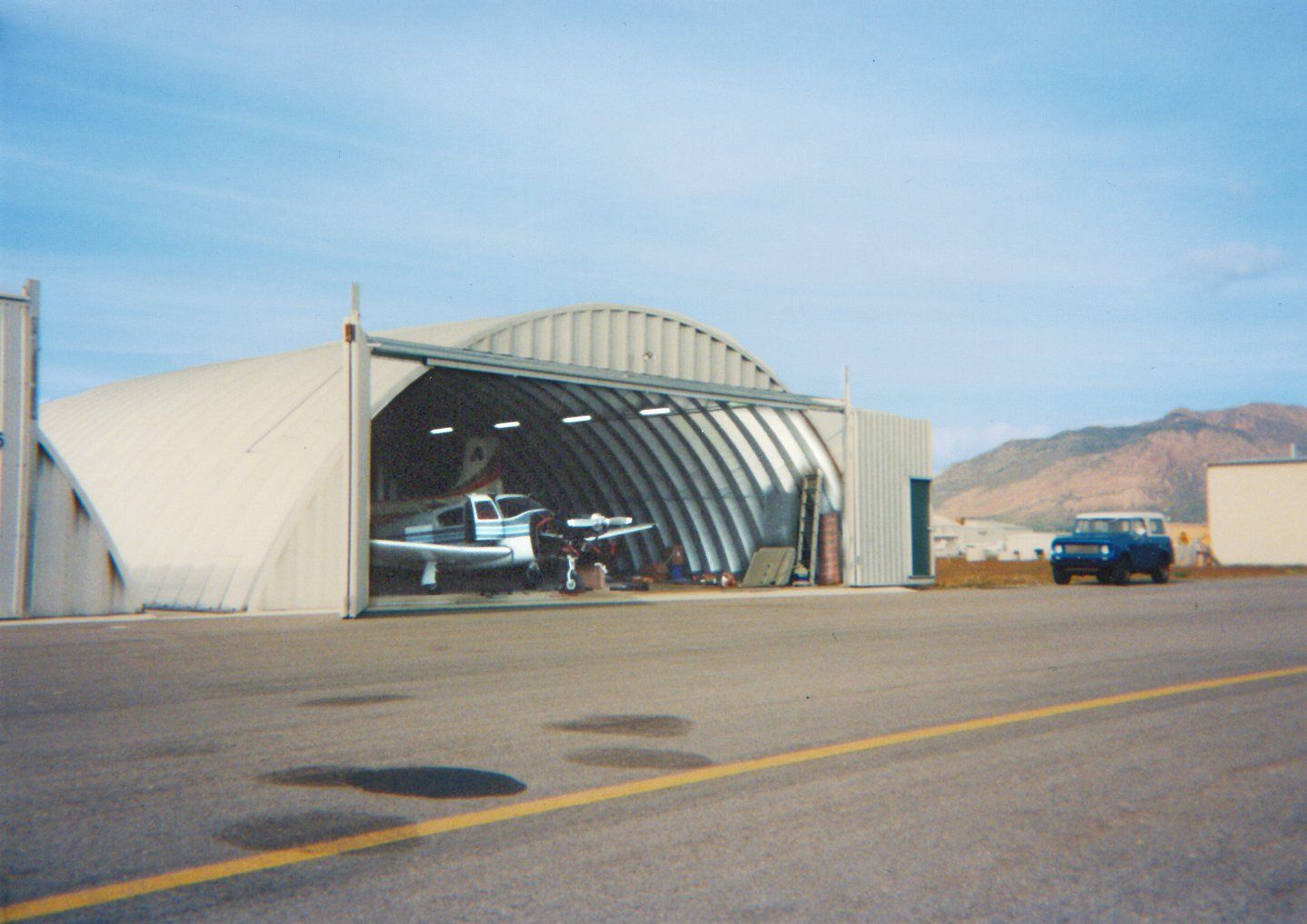

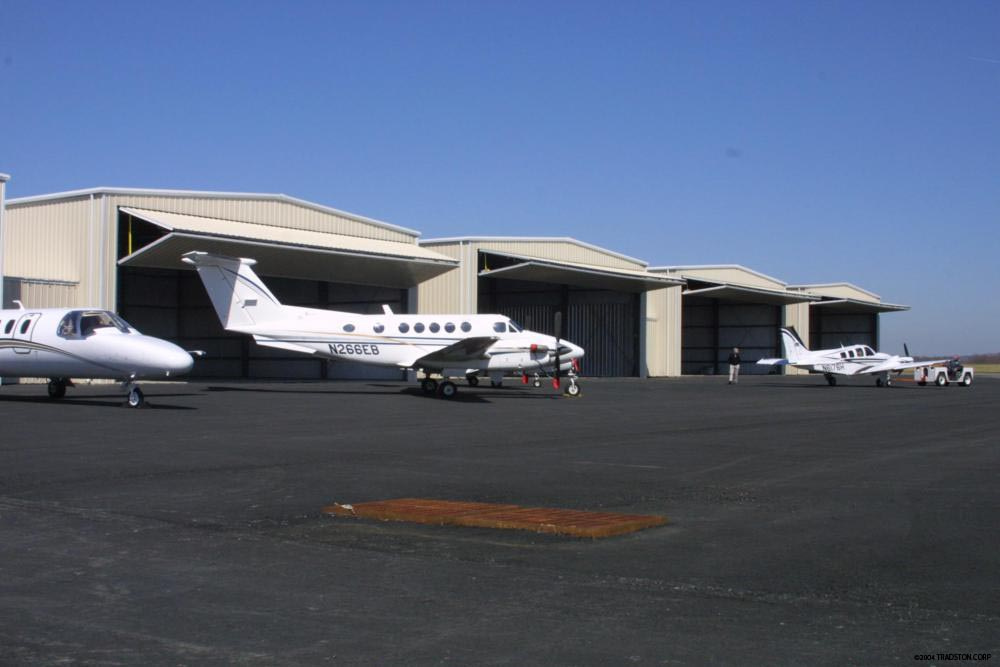

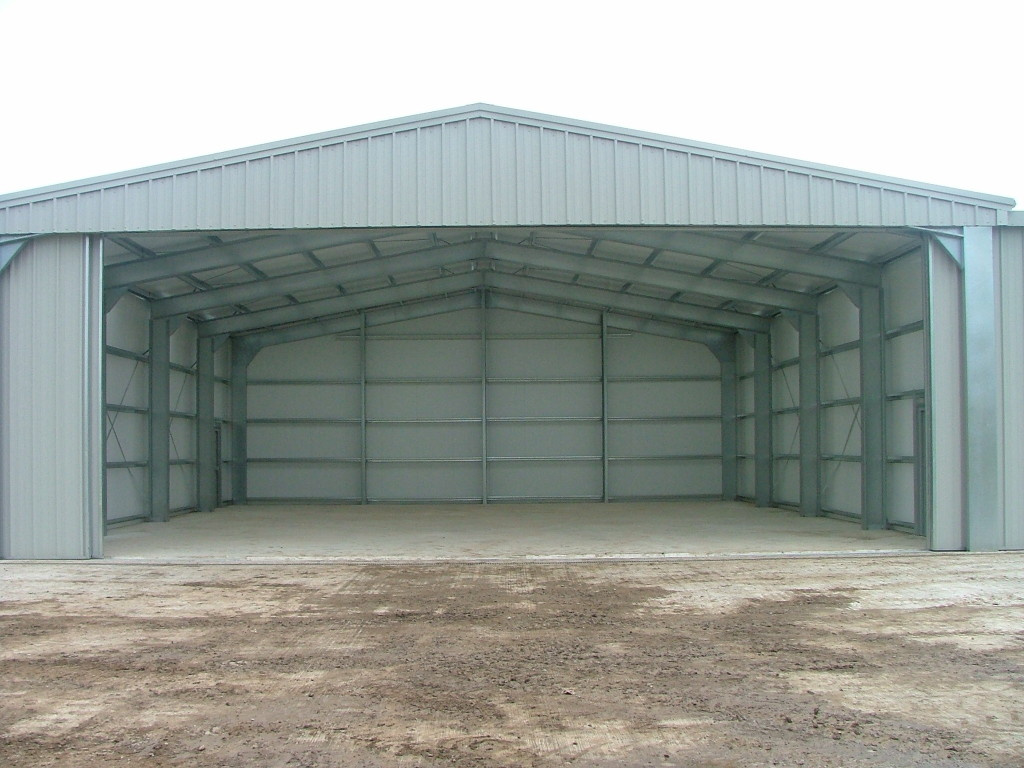

Prefab Aircraft Hangar/Prefabricated Steel Structures Hanger Building
| Price: | US $ 25-60/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | CUS-SX-AH |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Type: | AISI, ASTM, BS, DIN, GB, JIS |
| Grade Type: | Q235 Q345b |
| Dimensions: | Minimum 1000sqm |
| Weight: | Depends on Different Design |
| Application Type: | Hanger Building |
| Drawing Design: | Autocad Pkpm Mts |
| Section: | U-Section Steel Components |
| Surface Treatment: | Hot DIP Galvanized |
| Roof Cladding: | Corrugated Steel Sheet |
| Window: | Plastic Steel Window |
| Type: | H-Section Steel |
| Standard: | BS |
| Trademark: | Special Purpose Steel |
| Forming: | Hot-Rolled Steel |
| Connection Form: | Bolt Connection |
| Member: | Steel Column |
| Type Of Steel For Building Structure: | High-Strength Steel |
| Residential Wall Structure: | Top Wall Beam |
| Application: | Steel Structure Bridge |
| Carbon Structural Steel: | Q345 |
Product Description
* Project scope:
Industrial steel structure warehouse/workshop/hangar/garage/chicken shed,container house, prefabricated home,sandwich panel, welded H steel,C/Z channel,corrugated steel sheet,etc.
* Products&Service Scope:
Design&Engineering Service, Steel Building,Space Frames, Portable Cabins, Tubular Steel Structures,basic building elements(built-up welded H-section , hot-rolled H-section, channel, steel column, steel beam),standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels
* Engineering Design Software:
AutoCAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
Crane: 5T,10T,15T,ect.
Bolt: Foundation bolt(M24,Q235),
High strengthen bolt(M20X70) ,
Normal bolts(M16x50;M12X30
Drawings&Quation:
1.Customized design to welcome.
2.As long as you like, we can design and provide drawings for you.
3.In order to give yo an exactly quotation and drawings,pls tell us the ;Length,width,eave height and local weather. we'll quote for you asap.
Tems:
Payment : L/C or by T/T(30% prepaid as depsit, the balance 70% before shipment)
Delivery time : 15~40 days,usually as customers's order
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
| tions | 1) Different sizes: |
2) Different types:
double slope Sing span double-span Multi-span single floor, double floors | |
| 3) Different Bases: Cement and steel foundation bolts | |
| 4) Different Columns and Beams: Material Q345(S355JR)or Q235(S235JR) steel, all bolt connections, Straight cross-section or Variable cross-section | |
| 5) Different bracings: X-type or V-type or other type bracing made from angle, round pipe, etc | |
| 6) Different Purlins: C or z type: Size from C120~C320, Z100~Z200 | |
| 7) Different Roof and Wall Panel: Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm | |
| 8) All accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc | |
| 9) Surface: Two lays of Anti-Rust Paint | |
| 10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ |
You ONLY need you to provide us with the following information:
Design Parameters | 1) Live load on roof (KN/M2) |
2) Wind speed (KM/H) | |
3) Snow load (KG/M2) - If Applicable | |
4) Earthquake load - If Applicable | |
5) Style of Doors and Windows | |
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure | |
7) Size: width X length X eave height, roof slope | |
8) Or your idea! |
Color | Decided by customers |
Truss | square tube |
| Roof | Color-steel Sandwich Panel (EPS/rockwool/glass fiber 50mm/75mm/100mm) |
| Wall | Color-steel Sandwich Panel (EPS 50mm/75mm/100mm) PS: customers can choose other sandwich panel material. |
| Door Frame | steel sheets |
| Door | 2000mm*900mm iron security door or PVC door |
Window | PVC Window |
| Earthquake proofing | Grade 7 |
Fire Proofing | Grade 3 |
Wind Proofing | 120km/h |
certification: SGS;ISO9001;BV
Only one company passed CEstandard Henan province
Packaging & Delivery
| Packaging Details: | According to container size,container of 20 feet:Inside capacity is 5.69m x 2.34m x 2.18m,Gross weight of allocation is generally 17.5 ton,volumn is 24-26m3. container of 40 feet:Inside capacity is 11.8m x 2.34m x 2.18m,Gross weight of allocation is generally 22 ton,volumn is 54m3. HC container of 45 feet:Inside capacity is 13.58m x 2.34m x 2.71m,Gross weight of allocation is generally 29 ton,volumn is 86m3. |
| Delivery Detail: | 25-40 work days after received the deposit |
1.Main Structure: Steel Welded H Section
2.Purlin: C Section Channel or Z Section Channel
3.Roof Cladding: Sandwich Panel or Corrugated Steel Sheet with Fiber
Glass Wool Coil
4.Wall Cladding: Sandwich Panel or Corrugated Steel Sheet
5.Tie Rod: Circular Steel Tube
6.Brace: Round Bar
7.Column & Transverse Brace: Angle Steel or H Section Steel or Steel
Pipe
8.Knee Brace: Angle Steel
9.Wrapping Cover:Color Steel Sheet
10.Roof Gutter: Color Steel Sheet
11.Rainspout: PVC Pipe
12.Sliding Sandwich Panel Door or Metal Door
13.Windows: PVC/Plastic Steel/Aluminum Alloy Window
14.Connecting: High Strength Bolts
1. Wall and roof materials : EPS/Rockwool/PU/PIR Sandwich Panel
2. Color: normally, white gray, blue and red;
3. Moudle: Single slope or double slop;
4. Window material: Plastic steel or aluminum, swing or slidding
5. Door: EPS Sandwich panel, PU sandwich Panel, Plastic steel or Aluminum.
CUS-GROUP is an enterprise group which was established in 1998. It manufactures and distributes pre-painted steel coils, galvanized steel coil, cold roll-forming machinery, steel structure-based construction, metal roofing tiles, stone-coated metal roofing tiles, and building and decoration materials.
The company has several subsidiary companies and joint venture companies. Scope of the company has been extended to cover raw material supplies, productions, steel structure production and installation, technical and application researches. The products have passed through the ISO 9002 and 14001 quality assurance systems. Our company has been highly recognized as a contract-held, high creditability (AAA), and outstanding exportation company.
