Home LED Light Products PS Cup Making Machine with Automatic Stacker (PPTF-70T)

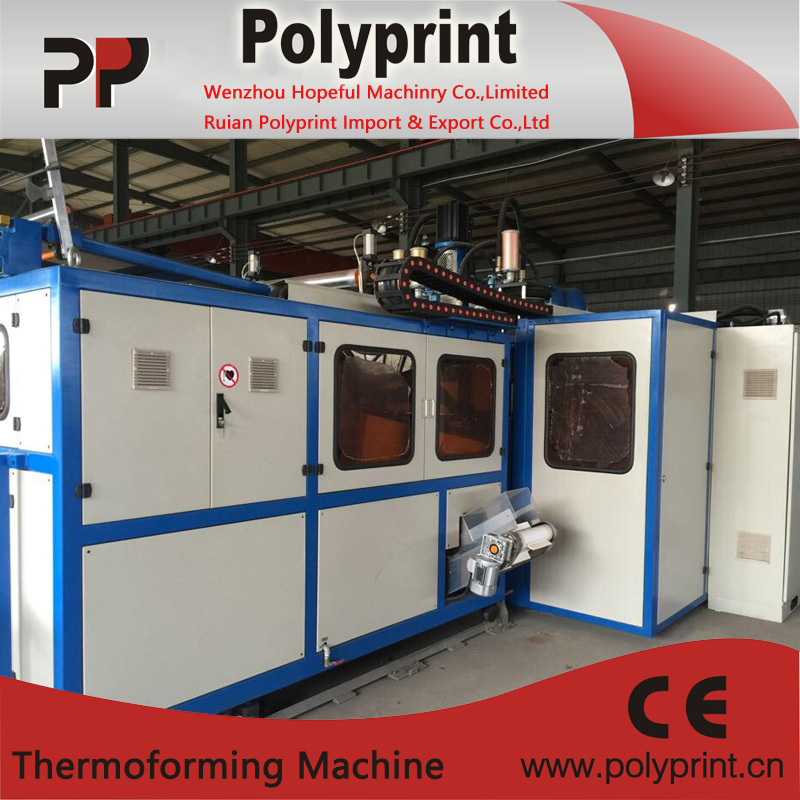

PS Cup Making Machine with Automatic Stacker (PPTF-70T)
| Price: | US $ 160000-210000/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | PPTF-70T |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Aluminimum |
| Cavity: | Multi-Cavity |
| Cutting: | in Mould Cutting |
| Cutting Plate: | Complete |
| Control: | PLC, All Servo Motor |
| Automatic: | Automatic Counting and Stacking |
Product Description
Products Description:Water cup forming mold suitable forming PP, PS pet sheet to made different disposal cup, drinking cup, water cup, jelly cup tec.
Our products are mainly exported to America, Europe, southeast Asia and southwest Africa. Most of our products are accepted and favored by our clients from all over the world. With the principle of scientific management, our company actively carries out ISO9001 quality management system and implements this standard strictly. The slogan that best epitomizes our approach to quality is: Service must run ahead of time, the customer is our priority, take technology as our lead, and production must be carried out meticulously and with care.
FEATURE:
- Rapid mould changing device
- Width of chain holder design with tension
- Heating adopt Up and down ceramic heater controlled by SSR and PID temperature
- PLC and humanized color touch screen control operation interface.
- Mould automatic memory system.
Main Parameter:
| 1- Max. Forming Area | 680*320mm |
| 2- Max. Forming Depth | 160mm |
| 3- Sheet Thickness | 0.3-2.0mm |
| 4- Speed | 10-35Cycles/min |
| 5- Clamping Force | 350KN |
| 1- Max. Forming Area | 680×325mm |
| 2- Max. Forming Depth | 160mm |
| 3- Sheet Width Range | 500-700mm |
| 4- Sheet Thickness | 0.3-2.0mm |
| 5- Max. Roller Diameter | Φ1200mm |
| 6- Air Pressure | 0.7mpa |
| 7- Water Consumption | 50L/min |
| 8- Air Consumption | 2000L/min |
| 9- Speed | 10-35 Cycles/min |
| 10- Power (Three Phase Four Wire) | 3×380V+NP+PE.50HZ |
11-Heating Power | 120kw |
| 12- Main Motor Power | 11kw |
| 13- Feeding Motor Power | 5kw |
| 14- Scrap Rewinding Motor Power | 0.55kw |
| 15- Machine Weight | 10000kg |
| 16- Dimension | 14000×3000×3500mm |

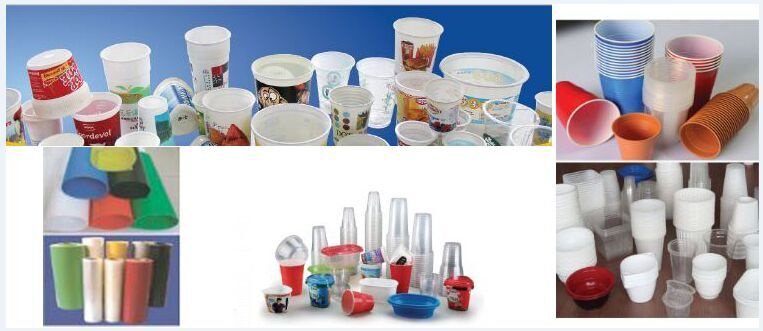

Samples:
our services:
1.. Installation and Training: We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.
2.. Quotation: The quotation is available in 60 days
3. 1 year warranty after installation of machine.

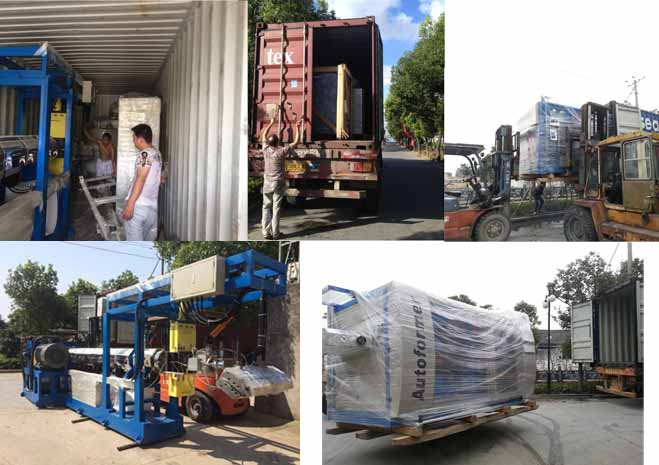

Packaging shipping:
Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine and cup packing machine since 2006.Contact information
