Push Back Racking Storage Warehouse Safety Rack
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Fixed |
Height: |
5-15m |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Weight: |
1ton-15ton |
Product Description

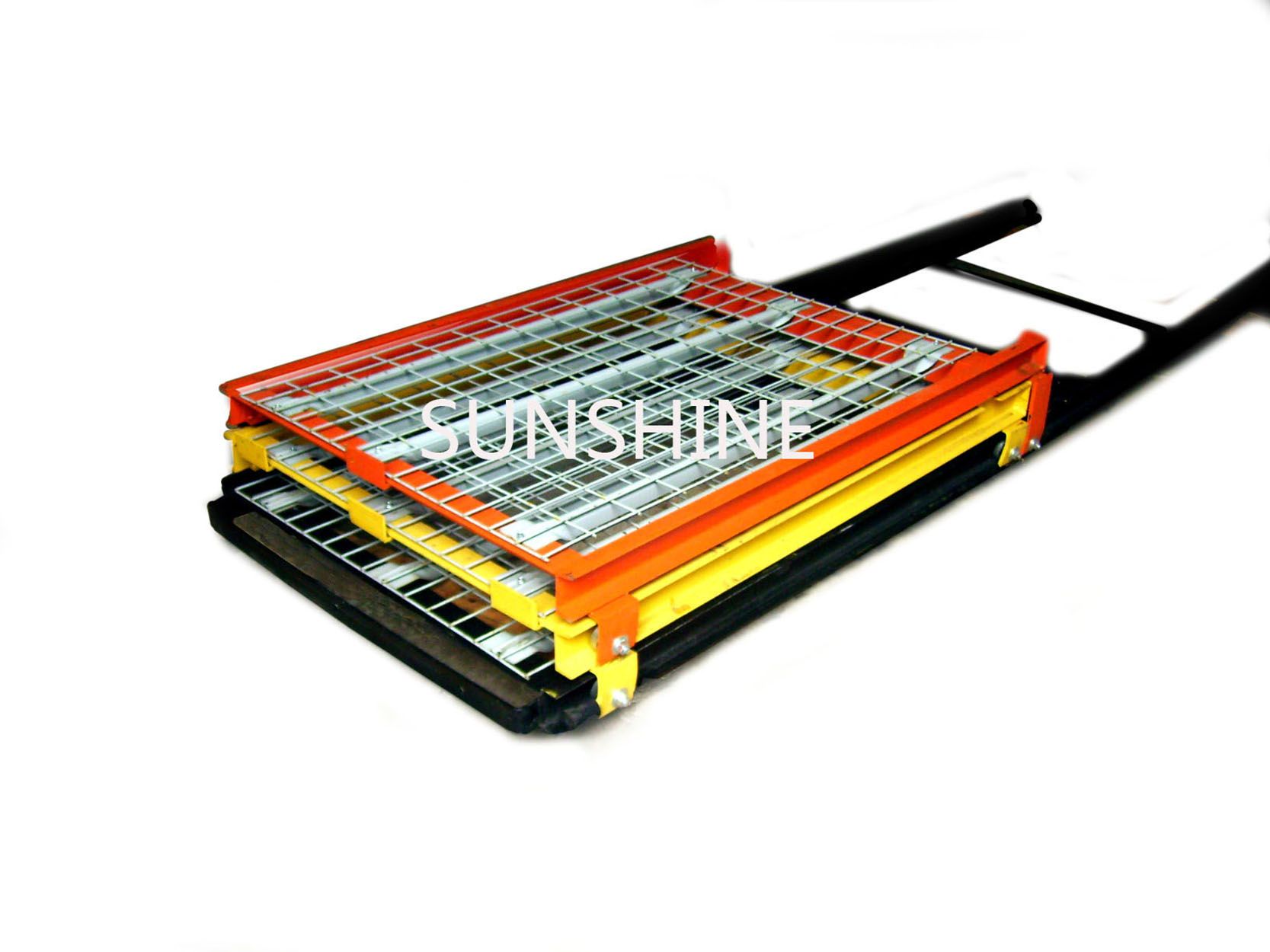

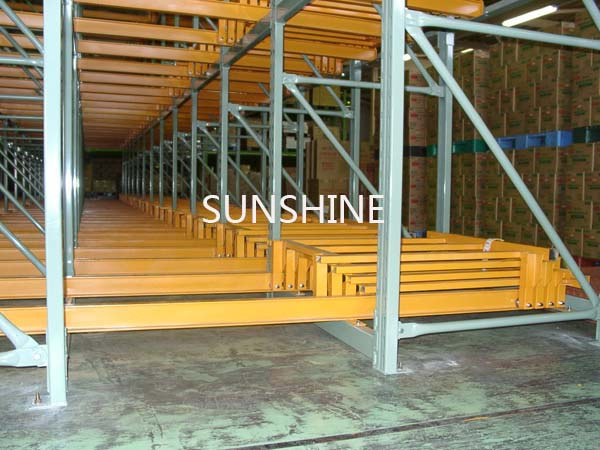

Push Back Racking systems allow you to eliminate aisles and gain pallet storage in your warehouse. Is your current racking system costing you money due to high labor costs from loading and unloading? Are you experiencing costly maintenance due to rack damage from driving in and out of the rack system? Do you have a lot of the same SKU mixed? Do you need to store a wide variety of different size pallets? Let Sunshine design a Push Back Racking system for your warehouse! Push Back Rack systems utilize gravity-fed telescoping carts to provide the densest storage. In most cases, Push Back Racks can double your storage capacity and allow for more picking faces. Push Back lanes can be designed to accommodate all different or unique pallet sizes. Pallets are fed and retrieved from one aisle, which makes Push Back Racking easy to operate. You simply load the first pallet onto the top cart, and then as you load the second pallet it pushes the first pallet back, which can be continued up to 6 pallets deep. To remove pallets, simply lift the pallet and back out slowly until the next pallet is in the front position. ush Back Racking Advantages:- Exceptional use of space, as eliminates unnecessary aisles
- Allows for both selectivity and dense storage
- More picking face locations
- Color-coded carts make it easier for forklift driver to position the pallets during loading and unloading process
- Carts can be low-profile design, which helps in areas with height restrictions
- Flexibility to store multiple SKUs on each level
- Minimizes honeycombing
- No special fork trucks required
- Few moving mechanical parts
- Fully operational in freezers, coolers, or high temperature environments
- Floor-mounted Push Back available
- Push Back carts designed to accommodate any and all pallet sizes
- Available in roll-formed or structural materials
Push Back Rack Applications:- Having inventory with multiple SKUs
- Wide variety of different size pallets
- LIFO storage (last in, first out) rotation
- Configurations from 2 to 6 pallets deep
- Storing up to 6 pallets of each SKU while maintaining the ability to select one pallet of each SKU
Push Back Pallet Racking Considerations:- The impact of time-sensitive or dated inventory
- The depth of system is based upon available space and the average quantity of pallets
- The height of system is dictated by the pallet height, building clear height, and the maximum lift of the fork truck
- The load on the pallets must be firmly secured to the pallet by stretch wrapping or otherwise, in order to safeguard against shifting or spillage
Push Back Racking systems can enhance your throughput of storing and retrieving product pallets, which amounts to impressive dollar savings! Let 1 Stop Rack Services lend a hand in designing, installing, and supplying your Push Back Rack System. Don't wait, contact us today so you can get the "pallet" rolling and enhance your storage and picking process to help push profits higher!
