PV Application 1p 1000V DC Fuse Holder
| Price: | US $ 0.08-0.5/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | GSTP-25 |
|---|---|
| Current: | 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A |
| Voltage: | 1000VDC |
| Giggest Block Ability(Ka: | 33ka |
| Working Temperature: | "-5°"to +40° |
| Protection Degree: | IP20 |
| Installation Altitude: | ≤2000m |
| Material: | Ceramic Body |
| Finish: | Chrome-Plated |
| Dimension: | 10X38 |
| Name: | Ceramic Solar DC Fuse PV-30 10A Fuse |
| Breaking Capacity: | High |
| Usaga: | Low Voltage |
| Type: | Solar Fuse |
| Fusing Speed: | Fast |
| Fusing Device: | PV System |
| Standard: | High Quality Ce&TUV Certificate |
Product Description
Product DescriptionDC Solar Fuse Application:
A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).

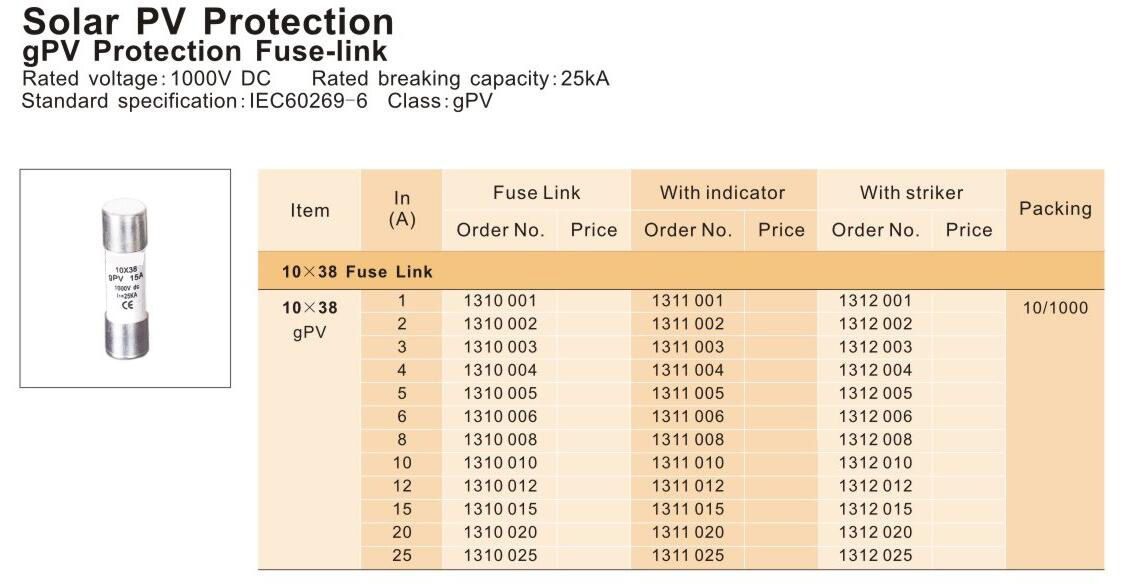

DC Solar Fuse Parameters:
| Item | DC Solar Fuse | |
| Code | GDS-32 | |
| Name | FUSE | FUSE HOLDER |
| Pole | 1P | 1P |
| Voltage | ≤1000VDC | |
| Current | 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A | |
| Giggest block ability(KA) | 33KA | |
| Standard | IEC/EN60269 | |
| Commection(mm) | 2.5-10 | |
| Power consumption(W) | 3.5 | |
| Working Temperature | "-5°"to +40° | |
| Protection Degree | IP20 | |
| Dimension(W)X(H)X(D) | 10X38 | 18X60X78 |
| Installation | 35MM DIN RAIL | |
| Installation Altitude | ≤2000M | |

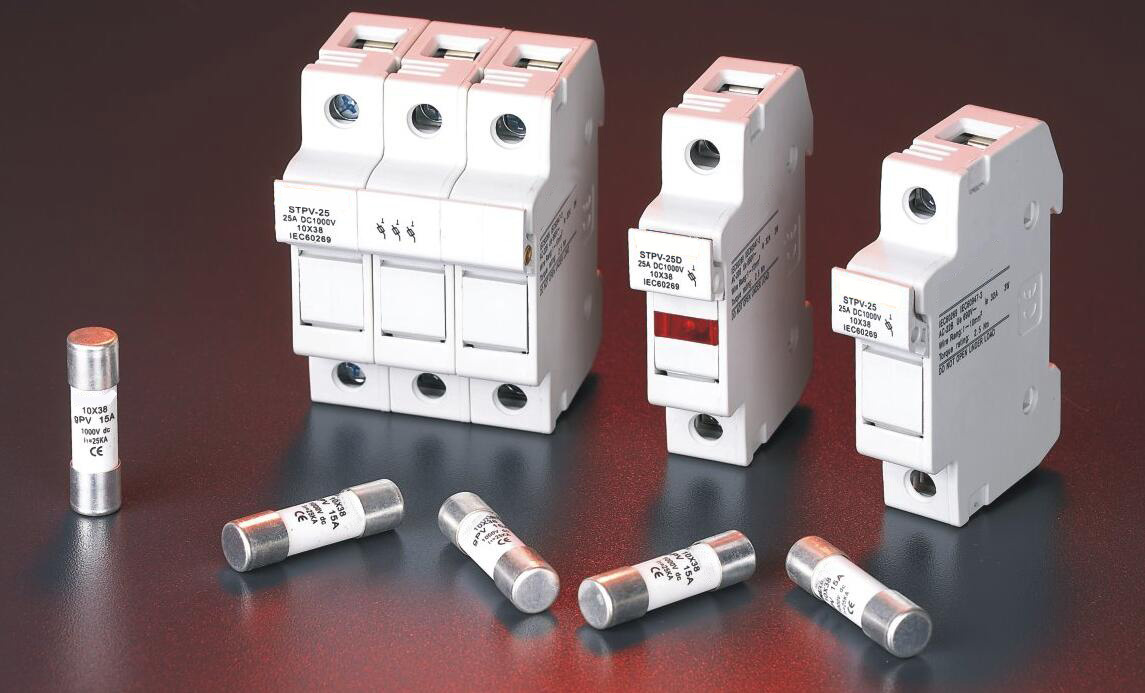

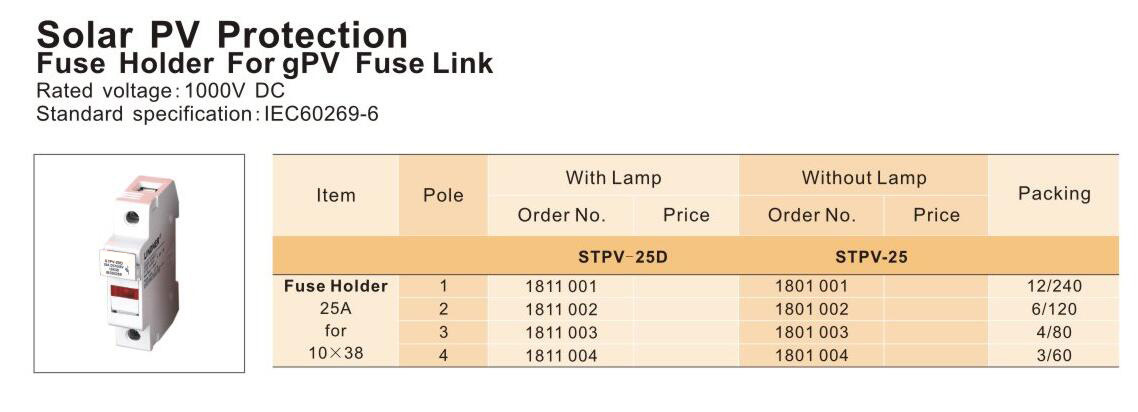

Solar PV protection Fuse Holder 1000V DC for gPV Fuse Link
1.Ceramic Fuse Link High Quality series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.
News:
Recently we ship to the following countries:
*Europe: Netherlands(Rotterdam), U. K. (Southampton/Manchester), Italy(Genoa), Macedonia(via Greece), Croatia(Rijeka), Georgia(Poti), Greece(Thessalonica), Lithuania(Klaipeda) etc.
*Asia: Korea(Inchon), Dubai(Jebel Ali), Indonesia (Jakarta), Turkey(Haydarpasa), Kazakhstan(Almaty), Philippines(Manila North Port ), Lebanon(Beirut), Brunei(Muara), Iran(Abbas), Singapore, Israel(Haifa), Malaysia(Kelang)
*Africa: South Africa(Durban), Mauritius(Louis),
* North America: USA(Boston), Canada(Vancouver/Toronto), Mexico( Mexico City via Manzanillo), Panama(Colon),
*South America: Venezuela(La Guaira), Argentina( Buenos Aires)
Ceramic Solar DC Fuse PV-30 10A Fuse Feature:
Ceramic Solar DC Fuse PV-30 10A Fuse series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.
Ceramic Solar DC Fuse PV-30 10A Fuse FAQ:

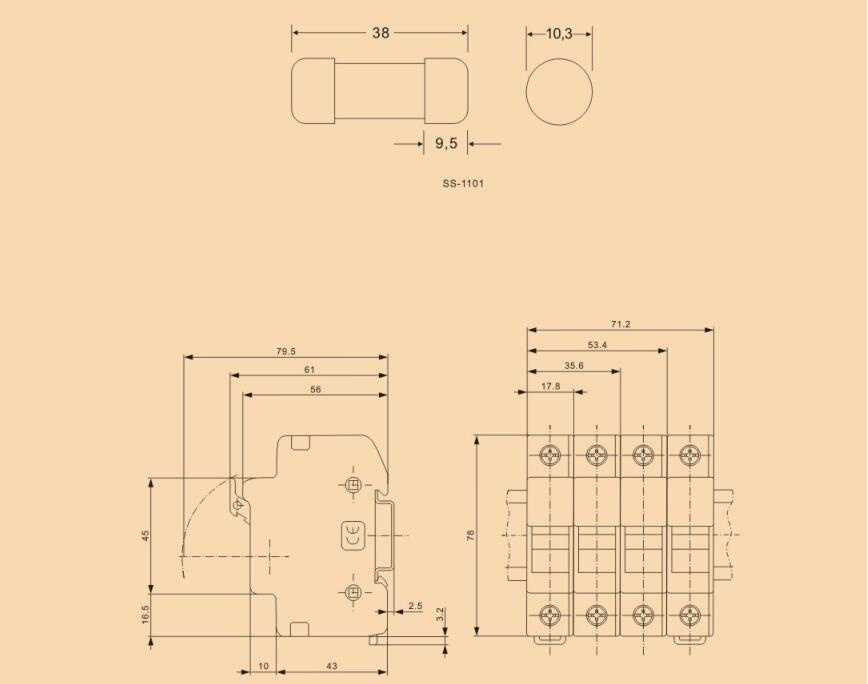

Demension
