Home LED Light Products Q235 Structural Steel Pallet Racking
Q235 Structural Steel Pallet Racking
| Price: | US $ 100-180/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | EBIL-GTHJ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | According to Your Request |
| Colour: | According to Your Request |
| Layer: | 2-7 |
| Certification 1: | ISO |
| Certification 2: | CE |
| Certification 3: | SGS |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Storage Racking |
| Weight: | 500-2000kg |
Product Description
Q235 Structural Steel Pallet RackingProduct Description
Racking is taken as a suitable and economical storage solution:
1. All the layers can be fix at any height according to the pitch 50, 75 or 76.2mm, user will adjust different height for various pallet storage;
2. We supply quite big sections of upright to suit special needs;
3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
4. Epoxy powder coated and galvanized surface treamment to prevent against corruption;
5. Compatible with European top brands like Dexion, Schaefer, etc.

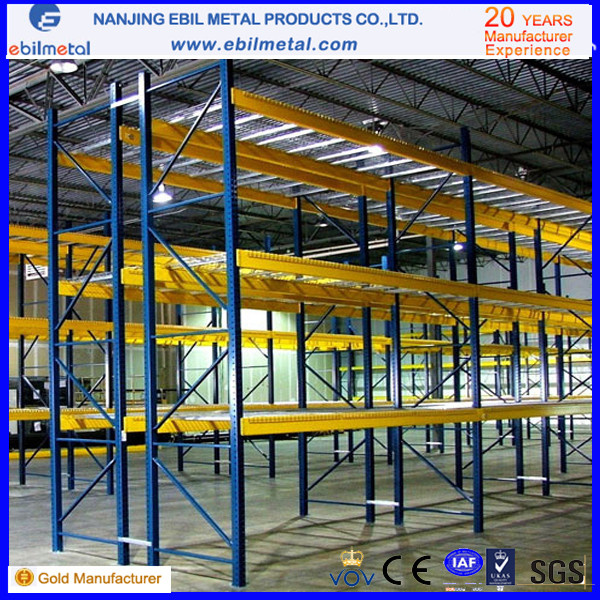

Ebil Metal Heavy duty rack

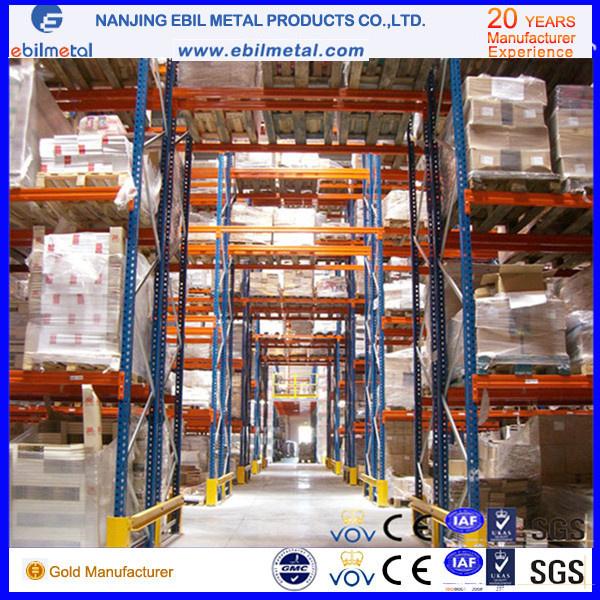

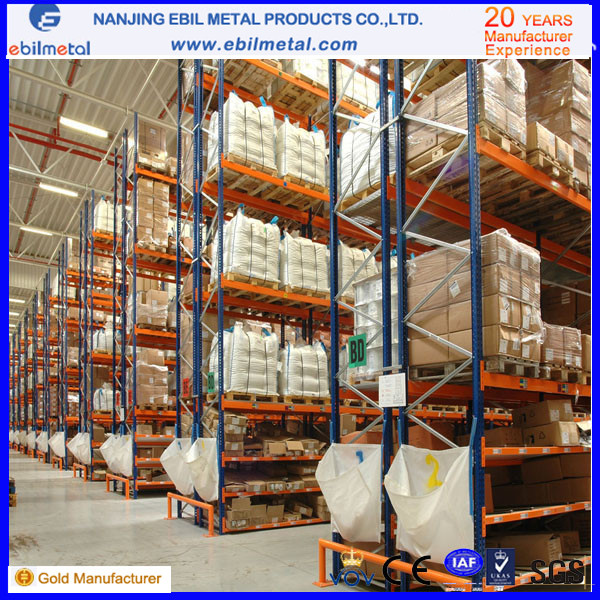

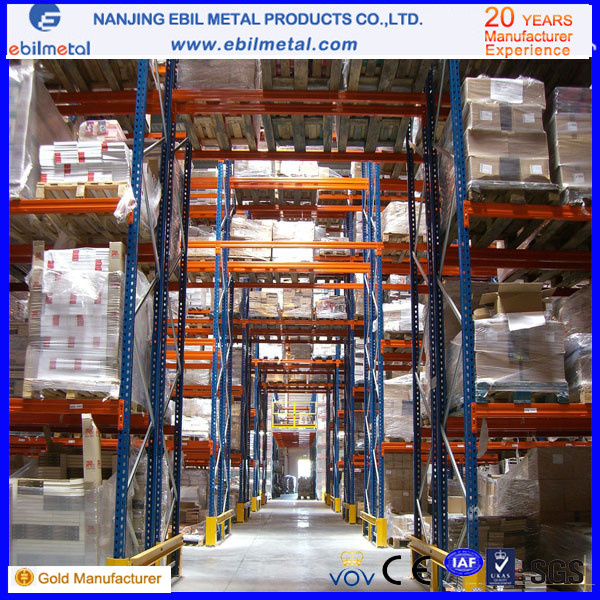

Storage Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Parameters:
| Loading Capacity: | Up to 4,000 kgs UDL/level |
| Racking Height: | Up to 12,000mm |
| Racking Depth: | 700-1200mm |
| Beam Length: | Up to 4000mm |
| Racking Finish: | Powder Coated Finish or Galvanised Finish for Frames. |
| Raw Steel Code: | Q235B |
Ebil Metal Features
- Pallets can be located, accessed and moved individually.
- Rapid handling of almost all types of palletized goods.
- Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- Strength and rigidity prevents compression damage to goods.
- Bottom level of pallets can be stored on the floor, lowering structure costs.
Ebil Metal Size
| rame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm | ||
| Thickness: 2.0/2.3/2.5/3.0mm | ||
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm | |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm | ||
| Thickness: 1.4--1.5mm | ||
| Load capacity | 1-4Tons/Layer | |
| Others | - Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Raw material: Q235 - Production capacity: 3000T/month - Main market: exported more than 40countries, such as AU, PH, SG, UK, INDIA and etc. - Available in various colors/specifications/sizes | |
Ebil Metal Company Information
Ebil Metal (China Factory) is a specialized designer and manufacturer of storage logistics techniques systems, including metal racks, multi-layer /Mezzanine warehousing systems,warehouse storage logistics solutions systems has more than 20years experiences and exported more than 160 countries.
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
For new and old import & export customers supply:
1. Solutions simple /regular warehouse rack/storage metal shelving, high-end warehouse / complete large-scale Intelligent Storage logistics system(6000MT/PER MONTH) warehouse planning, conveyance equipment; Various racking and storage management.; Optimize your warhouse; Economize space and cost.
2. A professional team, experienced engineers, advanced manufacturing equipment, particular production technology; Ebilmetal strictly implements ISO9001 Standard in all peration; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3. Supply Specialized installation guidance and after services that anytime and any country if customer need
4. Reply your inquiries within 24 hours anytime and anywhere
