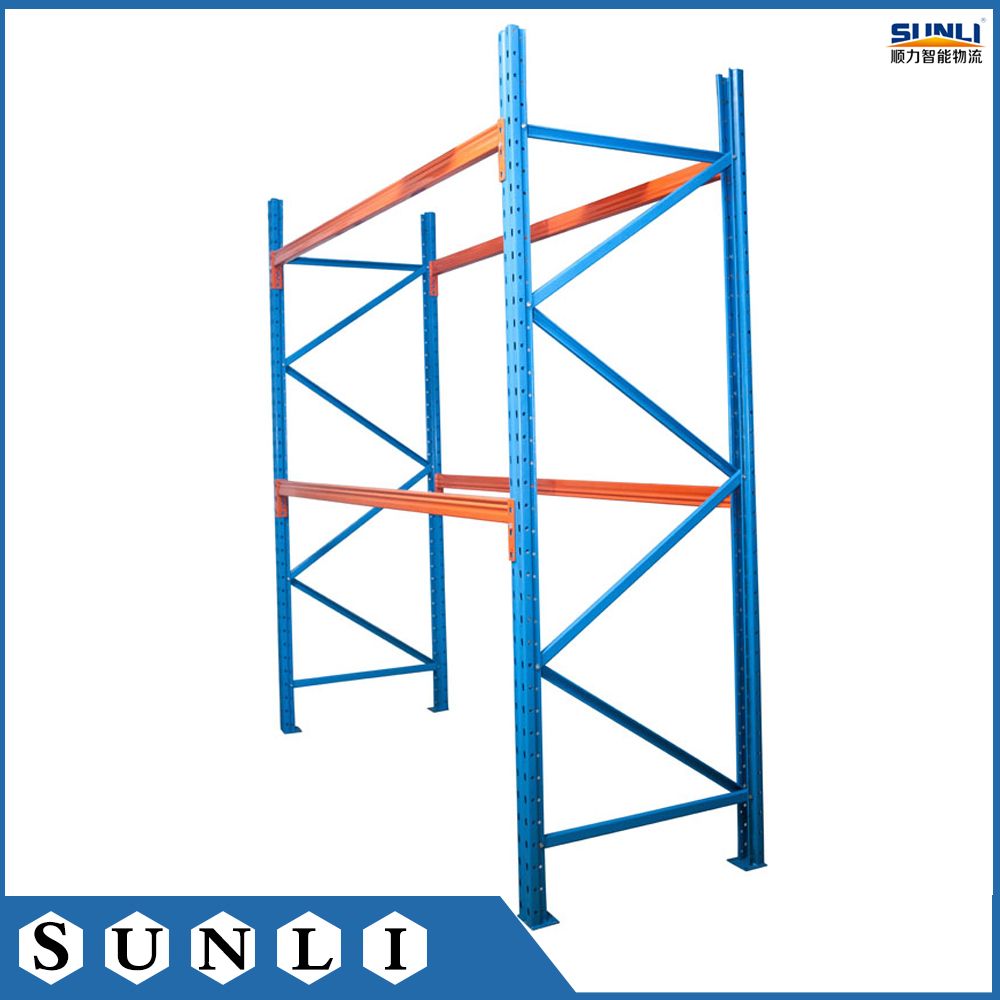

Q235B Steel H4000~5000mm Pallet Rack System with 1000kg~3000kg
| Price: | US $ 104.3-107/Piece |
|---|---|
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SL-PR-02 |
|---|---|
| Item: | Pallet Rack System |
| Upright Frame: | Bolt-on or Welded-on |
| Beam: | Corrugated Edges and Double C-Shaped |
| Beam Locked: | Safety Bins |
| MOQ: | 2 Units |
| Layed Deck: | Plywood/Wire Mesh Deck/Solid Steel Panel |
| Lead Time: | 18~25days |
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | 2m~11mm |
| Weight: | 800kg~4500kg |
Product Description
Q235B Steel H4000~5000MM Pallet Rack System with 1000KG~3000KGPallet rack's superior advantage over other suppliers
+ Upright with corrugated edge to gain stronger rigidity
+ Beam H45mm with double C-Shaped panel roll-formed, there is not any welding at all.
+ Uprigt frame selection: bolt-on and welded-on structure
( it will take less time for assembling but take up larger space in container
Techincal Data for pallet Rack System
| Style | Pallet storage warehouse rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
Dimension of | Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm |
| Customized Pallet: other special size( you can contact us directly) | |
| Beam Range | Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm |
| Upright Range | 80*60; 88*68; 90*60; 100*68; 120*68mm, Thickness: 1.5~3.0mm |
| Colour | Standard: Customized: MOQ( per 20FT container) (www.RALCOLOUR.com) |
| Weight Capacity | 5000KG per level max ; 1500KG per pallet max |
| Package | Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper |
| Export Area | South America; Middle America; South(South East) Asia; Africa; Middle East |
| MOQ | 2 units( 1 start unit+1 extension unit) |
| Lead time | 1, 18days for one container 2, 25~27days for less than one container |
Product Details
What we can do compared with other supplier:

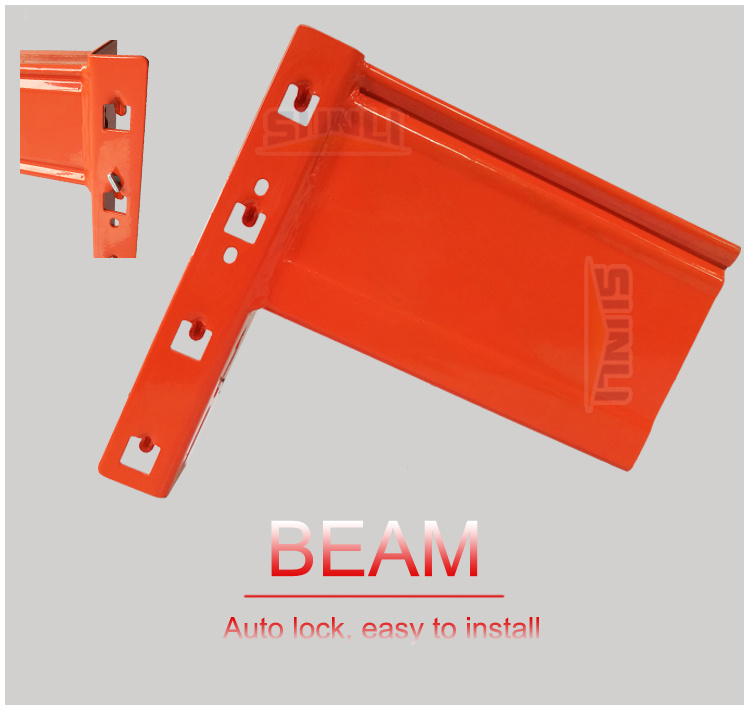

| Beam | 1,Double C-shaped tubes roll-formed without welding(H45mm) To make bigger loading section when beam is spreaded out 2, 4 Corrugated edges along section( for 2 sides) To make beams not easy to bend during rated capacity |

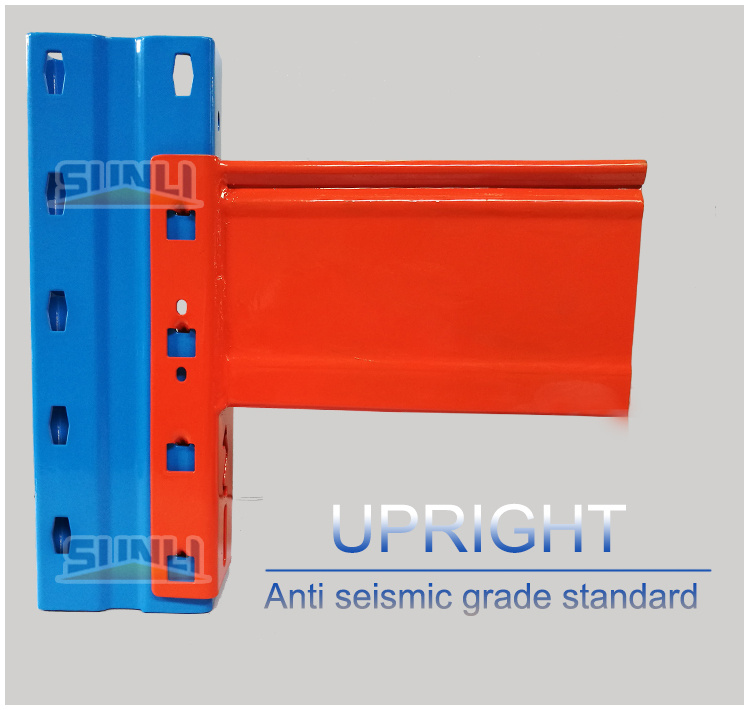

| Upright | 3, Corrugated edges ( 4pcs) |
| Anti-shock resistance | 4, Suitable for harsh working condition |

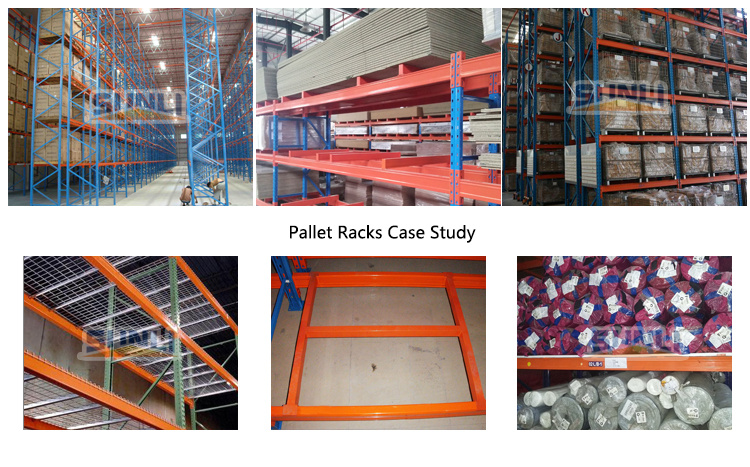

Pallet Rack applied to different Industry
Company Information
Our Services
Business scope within Sunli Company
| Pallet storage | Warehouse Rack | Double deep pallet rack |
| Radio shuttle rack | Double deep pallet rack | |
| Accessories | Long span shelving rack | Mezzanine Rack System |
| Long items | Cantilever rack | Stackable Pallet Rack |
Please inform us following information to get prompt offer for pallet rack
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for pallet storage pallet rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
