Home LED Light Products Q235B Steel Medium Duty Shelving Storage Rack with Industrial Use
Q235B Steel Medium Duty Shelving Storage Rack with Industrial Use
| Price: | US $ 50-80/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | SL-008 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fast Delivery: | Within 10 Days |
| Certifications: | Ce/SGS/As4084/ISO9001 |
| Standrd Size: | L2000*D600/400*H2000 |
| Colour: | Blue Upright+Orange Beam |
| Surface Treatment: | Powder Coating |
| Warranty: | 5 Years |
| Material: | Steel |
| Structure: | Layer Frame |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Medium Duty Rack |
| Weight: | 200-800kg |
Product Description

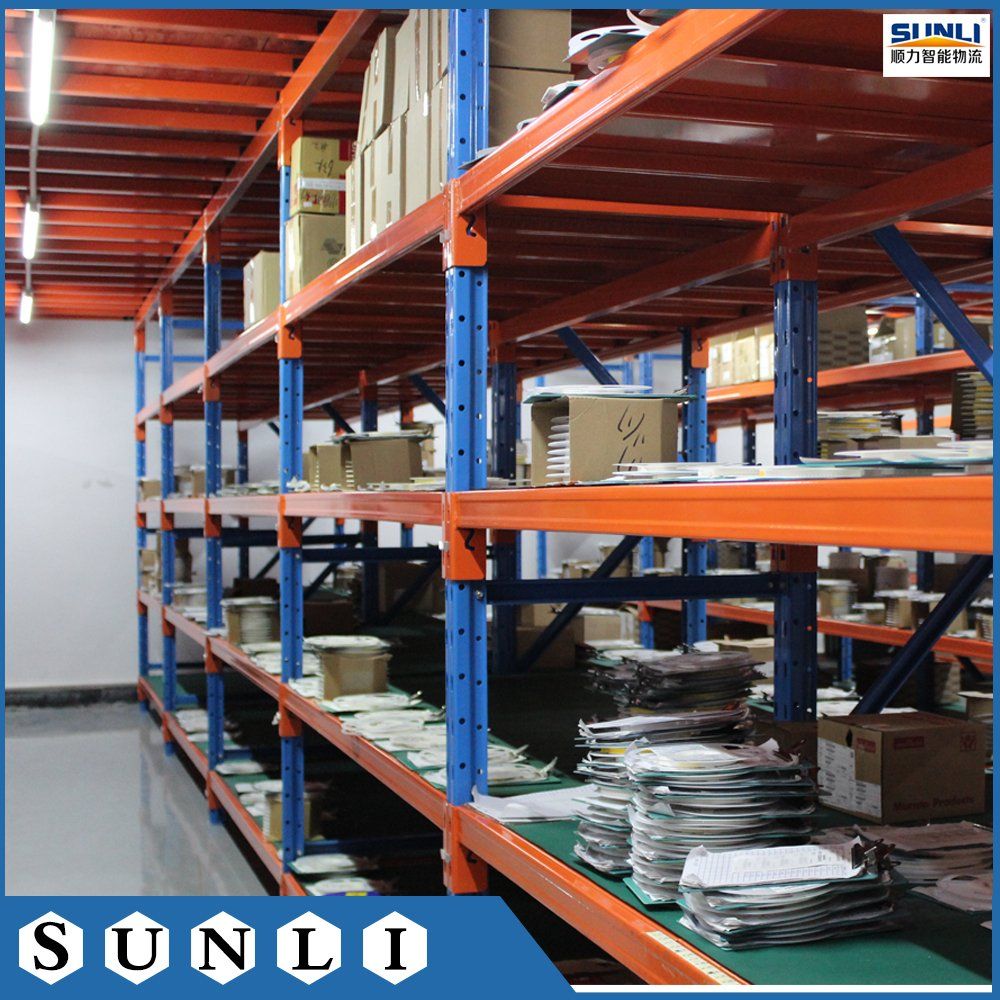

Q235B Steel Medium Duty Shelving Storage Rack with Industrial Use
Preview to Sunli Shelving Rack System
+ Competitive Strength(200KG~800KG):
+ Bolt-on and welded structure make your work as easy as a piece of cake
+ Can be extended on existing workload/racks
Main Feature for Shelving Storage rack ststem
1. Easy-to-buy and easy-to-specify starter and adder units together so you can quickly define your size and capacity
2, Durable racks are constructed from rigi roll-form steel of fine rigidity.
3, 60*35mm wide beams are usually used with plywood board or steel decking as the extra
3, Durable, attractive powder-coat. Beams finished in orange. Frames finished in sky blue
+ Competitive Strength(200KG~800KG):
+ Bolt-on and welded structure make your work as easy as a piece of cake
+ Can be extended on existing workload/racks
Main Feature for Shelving Storage rack ststem
1. Easy-to-buy and easy-to-specify starter and adder units together so you can quickly define your size and capacity
2, Durable racks are constructed from rigi roll-form steel of fine rigidity.
3, 60*35mm wide beams are usually used with plywood board or steel decking as the extra
3, Durable, attractive powder-coat. Beams finished in orange. Frames finished in sky blue
Technical Descriptions for shelving storage rack
| Style | Metal decking shelves/metal decking shelving |
| Selection | Single row, multiple rows |
| Dimension of rack | 1, popular sizes W2000*D600*H2000/W2000*D400*H2000 2, Depth: 200MM~2000MM 3,Width: 500MM~2700MM 4, Height: Less than 3000MM |

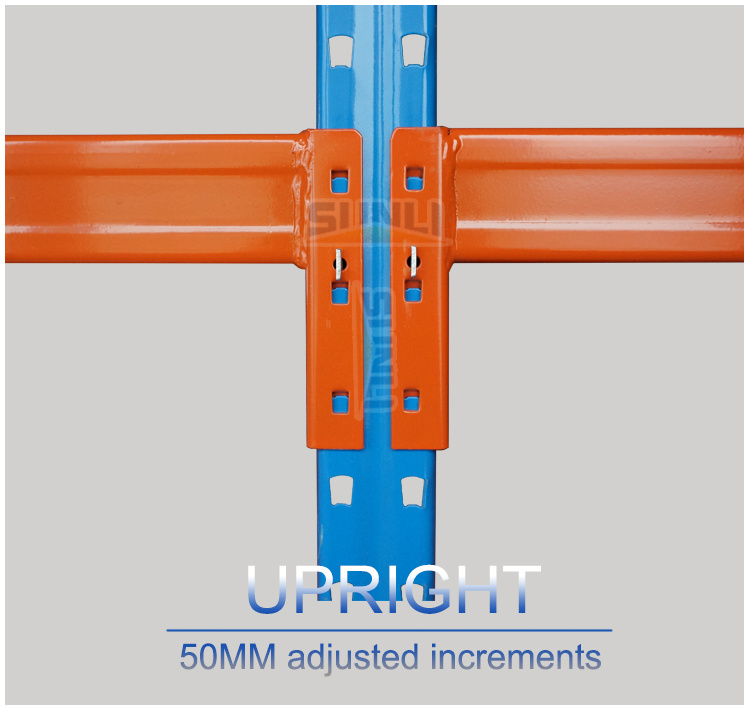

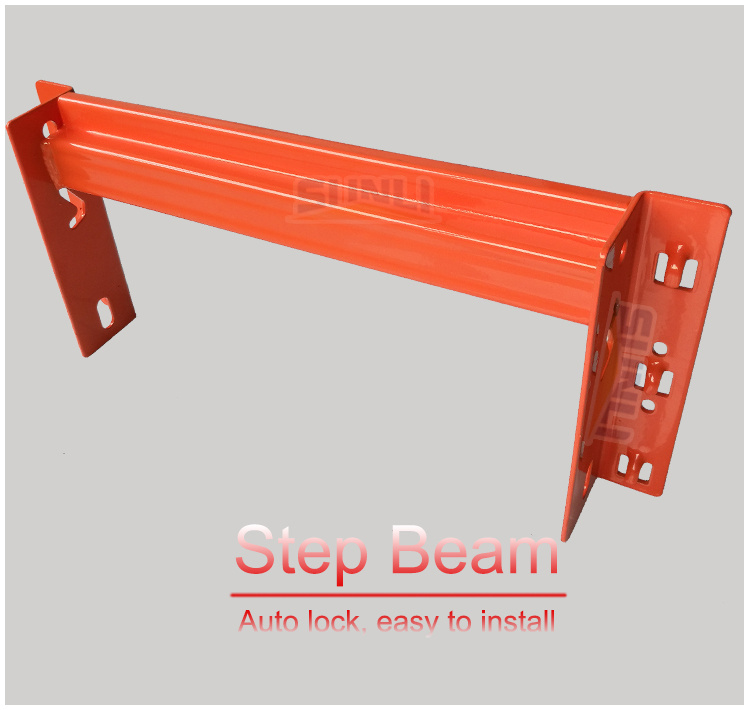

| Components (medium duty 200KG~800KG) | 1, step beam: 60*35/80*35mm 2, uprights: 55*45/60*45mm/80*60MM 3, Thickness: step beam: 1.2~1.5mm; upright:1.2mm~1.5mm Steel panel: 0.5~1.0mm |
| Components (heavy duty 800KG~2000KG) | 1,Beam: 80*45mm/90*45mm 2, uprights: 80*60mm 3, Thickness: Beam: 1.5~1.8mm; upright:1.5mm~1.8mm Steel panel: 1.0mm*2.0mm |
| Colour | Manufactured in RAL2004(step beam/steel panel)+RAL5015(upright) ( www.ralcolour.com) |
| Weight capacity | 200KG~2000KG per level |
| Package | 1, Less than one container: steel pallets/steel straps/plastic film 2,full container: plastic film/steel pallets for items |
| Services | CAD drawings for rack layout; CAD drawings for installation |
Our Services available for storage solution
Business scope within Sunli Company
| palletized storage | Adjustable pallet Rack | Narrow aisle pallet rack |
| Radio shuttle pallet rack | Double deep pallet rack | |
| Accessories | Long span shelving rack | Mezzanine Rack System |
| Long items | Cantilever rack | Stacking Pallet |
Please inform us following information to get prompt offer for shelving storage rack
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
We know your concerns during business with our company
1, What is MOQ limitation for ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
6, What about the installation ?
++ Pallet rack, shelving rack, cantilever rack, drive in rack are bolt-on structure, no skillful workers is involved
++ For complicated project such as mezzanine rack and radio shuttle rack we can send one engineer overseas to help.
