Q235B Steel Wire Deck Heavy Duty Pallet Warehouse Racking Manufacturer
| Price: | US $ 87-98/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SL-PR06B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stand: | Vertical Type |
| Feature: | Corrosion Protection |
| Fast Delivery: | 10 Days |
| Upright: | Max 8000mm/Customized |
| Beam: | Max2500mm/Customized |
| Surface Treatment: | Powder Coated,Galvanized Finish |
| Colour: | Blue Upright/Orange Beam |
| Adjustable: | 50/75mm Per Pitch Adjustable |
| Quality Warranty: | 5 Years |
| OEM: | Acceptable |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1000kg-4000kg Per Layer |
Product Description

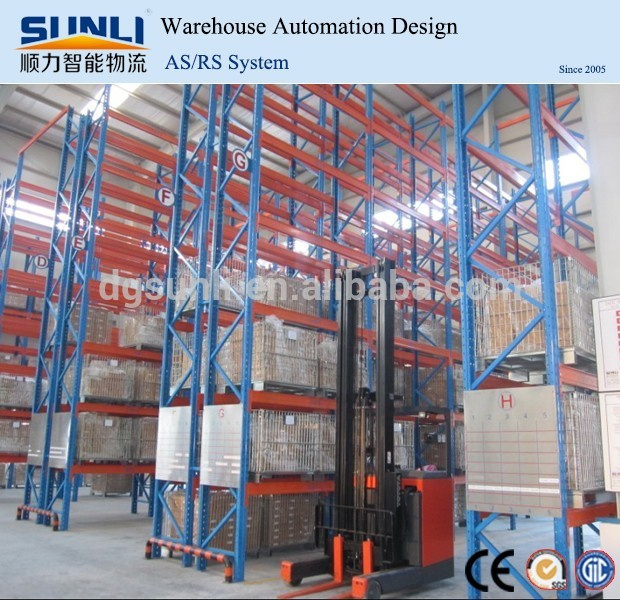

High quality Q235B steel wire Deck heavy duty pallet warehouse Racking manufacturer
Introdution of pallet rack:
With every new innovation pertaining to structural pallet racks, Sunli Storage Solutions are synonymous with quality, durability and design acumen. This has been possible because of our improved manufacturing process that enables us to produce at a quality that invariably exceeds the previously established standard. There are three defining factors that make our structural pallet racks the preferred choice of multiple industries
We highly recommend structural pallet racks for storage requirements that are exceedingly elevated. Rely on us to help you increase you storage space as well as use the current space to its full potential. With our deep understanding of warehouse organization, expect the most innovative solutions from our team. This has made us the most sought after pallet rack manufacturers among small, mid-size and large warehouses.
Technical data of rack:

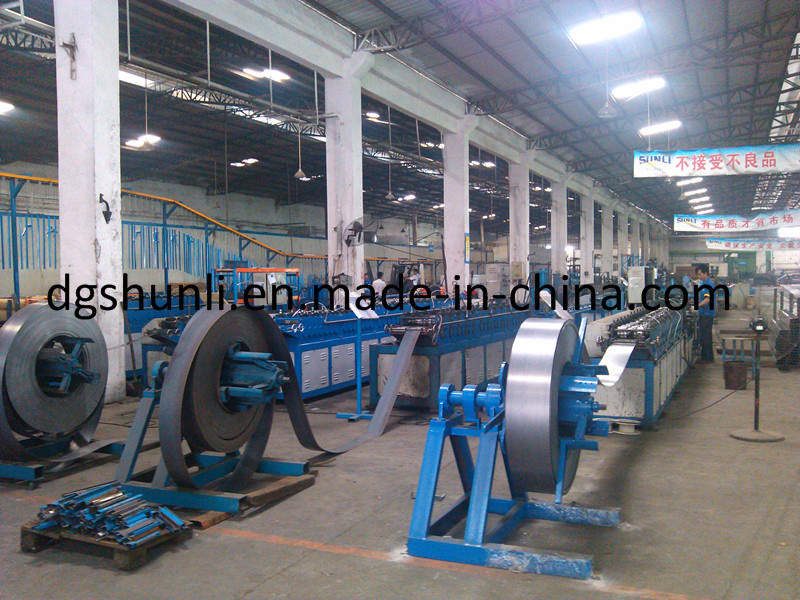

1.Material: Q235 steel, cold roll forming
2.Loading capacity:1000kg-3000kg/layer
3.Certificate: ISO/SGS
4.Shelving storage:plastic box/Wire decking/Plain shelving/plastic container
5.Cargoes storage: Food/electrics/clothes/heavy duty load bearing
6.Manual adjusting/assembling, fixed by bolts/safety rims
7.Components:upright+beam+bracings+bolts+safety pin
8.Bottom levels: can be stored on ground directly
Why choose us:
1. Quick delivery time: shipping can be done within 10 days
2. Experience: 10 years'experience of manufacturing&exporting steel rack
3. Professional design:
A. your CAD or PDF drawing for warehouse layout
B. we offer rack design in CAD or PDF
C. Modification&Confirmation
D. Manufacturing technique drawings(in our factory)
E. Manufacturing&shipping
4. Our factory life line:
We believe quality is the soul life of the group company!
5. Certifications: SGS/ISO approvement, free of trouble when you import
6. Shipping forwarder: We have our own&long term cooperted forwarder,
lowering cost of exporting for both of us
How to pick a suitable warehouse rack:
1.weight of cargo: within 800kg(light shelf rack recommended)
2.Free of trouble when picking&storing cargo(pallet rack/shelf rack)
3.High density(Drive-in rack/radio shuttle/narrow aisle rack)
4.Cargo storage:
A. High density of dispatching&input(radio shuttle/drive-in/self-slide)
B. Less types(drive-in rack/self slide rack/flow rack)
C. Large cold stores(drive in rack/pallet rack)
Main specifications of accessories:
1> Box beam(welded structure/cold roll structure)
size: 45*80/90/100/110/120/130/140/160mm
50*80-150mm
Supporting: Single/double/triple
Type: Ladder beam/welded/square beam/cold roll
2> Upright/stand column(cold roll processing)
55*45; 68*88/100/120;90*60/120*68/95/120; 120*140
3> Bracing/connector( by size of rack)
4> Clearance of each layer(distance between beam and cargo)
75mm(lower layer)125mm(top layer)
5> Colour available( RAL5015 sky blue/RAL2004 orange/RAL9002 gray/RAL5017 Blue)
| Item | Use efficiency | Application | |
| pallet rack | 34.57% | for all industry | match partition plate/steel plate |
| Narrow aisle rack | 50.37% | Distribution center | special reach forktruck |
| Drive in rack | 50.49% | Less types& mass production warehouse | first layer on the ground |
| Self slide rack | 60% | Cold stores&high cost warehouse | high quality pallet&steel roller |
| Mobile rack | 20-30% | mass production&less type&light weight&confidential | without limit |
| Radio shuttle rack | 70% | less type&mass production | high quality radio shuttle |
| Platform&mezzanine | double use of warehouse | warehouse/distribution | without limit |
Dear friends, We offer design customized, so need the following details:
please inform us the following information, we can provide the solutions as your requirment, thanks!
1) Size of the warehouse
2) Required Pallet Racking Dimension: Height*Depth*Length
3) Number of Levels for each unit of rack
4) Loading capacity for each pallet or for each level of beams
5) Color
6) Better offer us your CAD layout drawing for design if available.
If you are not very sure of above info, please just let us know your storage needs.
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
