Home LED Light Products Ral9003 White Sand Texture Powder Coating for Iron Bookshelf

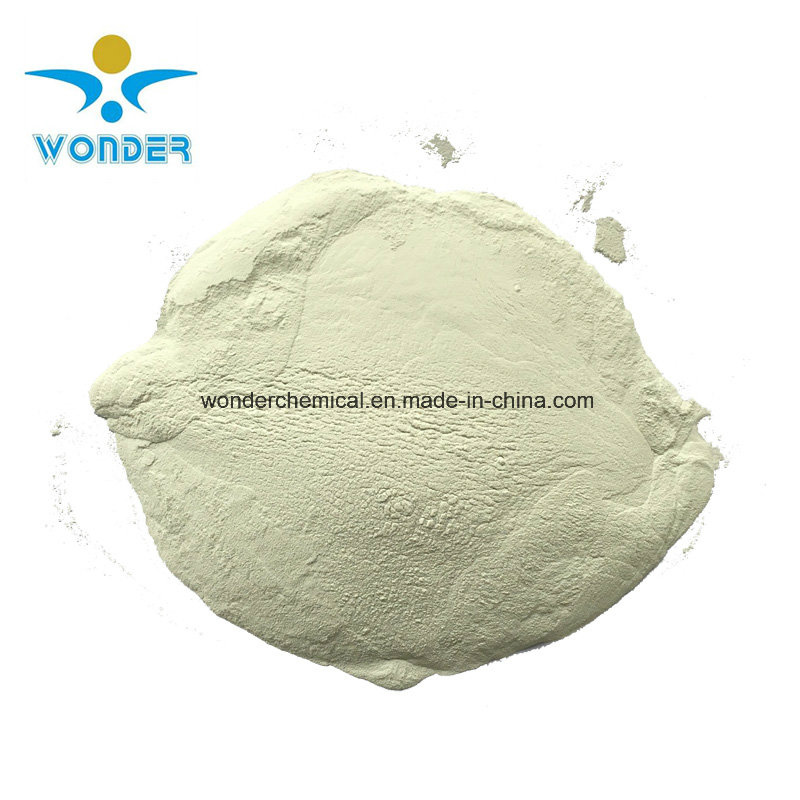

Ral9003 White Sand Texture Powder Coating for Iron Bookshelf

Ral9003 White Sand Texture Powder Coating for Iron Bookshelf
Price: US $ 2.35-2.98KG
Min Order: 500KG
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: EP-W
Gloss: 10%
Thickness: 50-70um
Hardness: 2h
Adhesion: 0 Grade
Impact Resistance: 50kg/Cm
Appearance: Powder
Paint Film Property: Antiseptic Paint
Method: Spray
Level: Finish Coat
Certification: Reach, FDA, En71
Components: Film Forming Matter
Formation Mechanism: Conversion Type
Substrate: Metal
Main Raw Material: Epoxy/Polyester
Color: Ral9003 White

Product Description

Product Details
TypeRAL9003 White Sand Texture Powder Coating For Iron Bookshelf
ColorRAL9003 White
Surface FinishSand Texture
Gloss level10%±5%
Particle SizeAverage 32-42μm
Specific Gravity1.2-1.7g per cubic meter
Coverage6-8 square meters per Kg at 30-90 μm film thickness
Film thickness50-70um
Application Recommendation
Application Voltage40-60 KV
Gun to Component Distance15-30CM
Curing Temperature200ºC X 10min
Powder coated Film Mechanical Properties
AdhesionCross-cut(2mm), no loss of adhesion
Impact ResistanceDirect impact 50kg/cm
Pencil Hardness2H
Cupping Test6mm Mandrel
Bending Test5mm
Powder Coated Film Chemical Resistance
Salt Spray Test5% NaCl Solution for 500 hours - No change
Acid Resistance5% HCl for 48 hours DIP test - No change
Alkali Resistance5% NaOH for 48 hours DIP test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months

The series that we can offer:
Gloss1. High gloss(above 80%), semi gloss(40-79%), matt gloss(5-39%) and no gloss(below 10°)
2. Gloss and texture can be customized as clients require
Curing Condition1. Standard curing (200ºC×10min)
2. Lower temperature curing (180ºC×15min)
Color1. RAL & Pantone Colors are available
2. Colors can be customized as clients require
StandardSpecial standards of product are available according to clients' requirements, e. G. RoHS standard, EN-71, FDA, LFGB, etc.
PropertyExcellent physical performance in hardness, flexibility and adhesion...Good mechanical properties, outstanding heat resistance, fine corrosion, weather and chemical resistance.
Storage1. The product can be stably stored for at least half year when kept in closed containers in a dry place at temperature below 25°C.
2. Keep it away from fire, heat and direct sunlight.
3. Avoid rains and exposure to sunshine during shipment.

Production Process
1. Mixing the raw materials
2. Stiring
3. Extruding
4. Cooling
5. Mincing
6. Grinding
7. Packing
8. Loading

Our Factories
1. Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. Four factories in total. Three are Powder Coating Production Base, one is Nano-Dryplating Spraying Base.
3.16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
4. Annual Capacity reaches 10, 000 Tons.
5. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
6. Oversea Countries: Sweden, America, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, Vietnam, Sri Lanka, etc,
7. Native Cooperative Clients: MEDIA, GREE, KELON, DAYANG.

Why Choose Us?
1. Quatlity Control. 24 cabins to keep sample powder of each batch production. The quality can be traced within 2 years if any problem occurs.
2. Various Products. Thousands of colors. Nano Dray-Plating Colors. Metallic Silver Gold Effects. Special sand, wrinkle, hammer vein texture.
3. Technical Support. Advice on coating line setup, integrated solution on coating. Professional production tracking, punctual delivery. Quality tracking system. Regular follow-up.


FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.

Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.

Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
Leader in Metallic Powder Coating

Established in September 2006, our company is a subsidiary of Guangdong Charming Inc. We began our powder coating business in 1989 and are one of the first batch of powder coating suppliers in China.

After 20 years of development, we currently have a professional team with excellent working quality, theory and rich practical experience. They keep working in powder coating R&D. Possessing advanced analytical testing devices and several domestically and internationally leading production lines, our annual production capacity has increased to 8000 tons.

Our company has 3 product brands: Charming, Wonder and Bonding. Our raw materials have all passed the related standard tests. Our products have been approved by ISO9001: 2000 quality management system and are in accordance with the EU RoHS instructions.

Owing to outstanding quality and excellent services, we've won great appreciation from many famous brands and listed companies, such as IKEA, American Neway, Wal-Mart, French Carrefour, Kelon, Midea and others.

Our company follows the core value of "creating value for the users". The sales network nationwide provides domestic and international customers with stable, top-notch and green products and application services. We promise to keep making contributions to human progress.
