Rare Earth Permanent Pot Magnetic Holder Magnetis Application
Price: |
US $ 0.1-1/Piece |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,D/P |
Type: |
Permanent Magnet |
Export Markets: |
Global |
Certification: |
ISO9001:2008,ISO/Ts16949:2009:SGS |
Composite: |
Rare Magnet |
Delivery Date: |
3~25days |
Application: |
Motor Magnet |
Shape: |
Cup Shape |
Coating: |
Nickel |
Grade: |
N35 |
Product Description

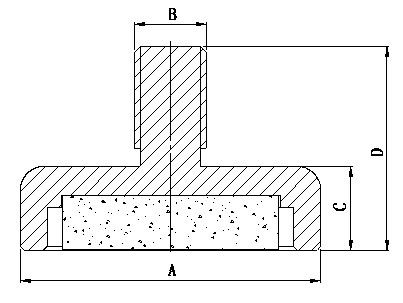

DRW. | PTN01 | |
Φ6×6+M3×11.4 | MATERIAL | |
PTN01-06 | Φ10×4.5+M4×12.5 | A3 | |
PTN01-10 | Φ10×4.5+M3×12.5 | A3 | |
PTN01-10A | Φ10×4.5+M3×12.5 | A3 | |
PTN01-12 | Φ13×4.5+M5×12.5 | A3 | |
PTN01-13 | Φ13×4.5+M5×12.5 | A3 | |
PTN01-13A | Φ13×4.5+M5×12.5 | A3 | |
PTN01-15 | Φ15×5+M4×17 | A3 | |
PTN01-16 | Φ16×4.5+M6×12.5 | A3 | |
PTN01-16A | Φ16×4+M6×12 | A3 | |
PTN01-16B | Φ16×4.5+M6×12.5 | A3 | |
PTN01-16C | Φ16×4+M6×12 | A3 | |
PTN01-16D | Φ16×5+M4×13 | A4 | |
PTN01-19 | Φ19.05×6.35+M6×14 | A3 | |
PTN01-20 | Φ20×6+M6×13 | A3 | |
PTN01-20A | Φ20×7+M5×14 | A3 | |
PTN01-20B | Φ20×6+M6×16 | A3 | |
PTN01-20C | ø20×7+M4×15 | A3 | |
PTN01-20D | Φ20×7+M4×15 | A4 | |
PTN01-22 | ø22×6+M4×12.5 | A3 | |
PTN01-22A | ø22×6.5+M5×19.5 | A3 | |
PTN01-22B | ø22×5.5+M4×15.5 | A3 | |
PTN01-25 | ø25×7+M6×17 | A3 | |
PTN01-25A | ø25×7+M6×17 | A3 | |
PTN01-25B | ø25×8+M5×17 | A3 | |
PTN01-32 | ø32×7+M6×17 | A3 | |
PTN01-32A | ø32×7+M6×17 | A3 | |
PTN01-32B | ø32×7+M6×17 | A3 | |
PTN01-32C | ø32×7+M6×14 | A3 | |
PTN01-36 | Φ36×8+#1/4-20×14 | A3 | |
PTN01-36A | Φ36×8+#1/4-20×14 | A3 | |
PTN01-36B | Φ36×8+M6×18 | A3 | |
PTN01-40 | Φ40×7+#1/4-20×14 | A3 | |
PTN01-42 | Φ42×9+M8×20 | A3 | |
PTN01-43 | ø43×6-M6×21 | A3 | |
PTN01-43A | ø43×6-1/4-20×37.8 | A3 | |
PTN01-43B | ø43×6-M6×21 | A3 | |
PTN01-43C | ø43×6-(1/4-20)×30.8 | A3 | |
PTN01-43D | ø43×6-(1/4-20)×31.4 | A3 | |
PTN01-43E | ø43×6-M6×36 | A3 | |
PTN01-60 | ø60×16+3/8"-16×32 | A3 | |
PTN01-60A | ø60×15+M8×30 | A3 | |
PTN01-66 | ø66×8-M8×23.5 | A3 | |
PTN01-66A | ø66×8-(1/4-20)×33.4 | A3 | |
PTN01-66B | ø66×8-M6×23 | A3 | |
PTN01-88 | ø80×3+M8×20 | A3 | |
PTN01-88Aø89.3×8.5-1/4-20×33.6A3 | | | XX |
PTN01-89.3 | ø89.3×8.5-1/4-20×33.6 | A3 | |
Ningbo Yinzhou Pufeite Magnetics Co., Ltd is a newly developed high-tech company specializing in neodymium-iron-boron (NdFeB) magnet manufacturing, researching, developing and applications. We also supply other permanent magnets, such as high grade SmCo, AlNiCo, hard ferrites, Bonded NdFeB magnet and rubber magnets. Our enterprise locates in Ningbo, a coastal city in China.
We have staffed with a team of experienced professionals in magnets and magnetic applications that benefits us with unique magnet production techniques and processes. We have the advantage in the products high corrosion resistance, low temperature coefficients, ultrahigh Intrinsic coefficient force (Hcj), oriental direction magnets. With advanced production equipments, integrated QC system and complete test equipments, all our manufacturing procedures are operated well under strict procedure.
Now our products are widely used in automobile motor, industrial machines, medical equipment, electro-acoustic components, wind power, electronic components, magnetic separator, and other fields. We are good at HAST magnets, Radial orientation magnets, long SST tested coating (500 hours), it's lead area in China. PUFEITE Magnetics Co., Ltd insists on best quality and create value for our clients, we sincerely hope cooperate well with clients.
