Prod Model: |
YD-S008 |
Capacity: |
80-120kg/Layer |
Layer: |
1-7 Layers |
MOQ: |
10 PCS |
OEM/ODM: |
Available |
Finish: |
Powder Coated |
Function: |
Shop Display |
Color: |
White/Black/Yellow/Any Color |
Sample: |
Available |
Port: |
Shanghai |
Delivery Time: |
10-15 Days |
Material: |
Steel |
Style: |
Backplane Style |
Side Number: |
Double Sided |
Weight: |
Middle Weight |
Rotary: |
Fixed |
Usage: |
Convenient Store |
Customized: |
Customized |
Product Description

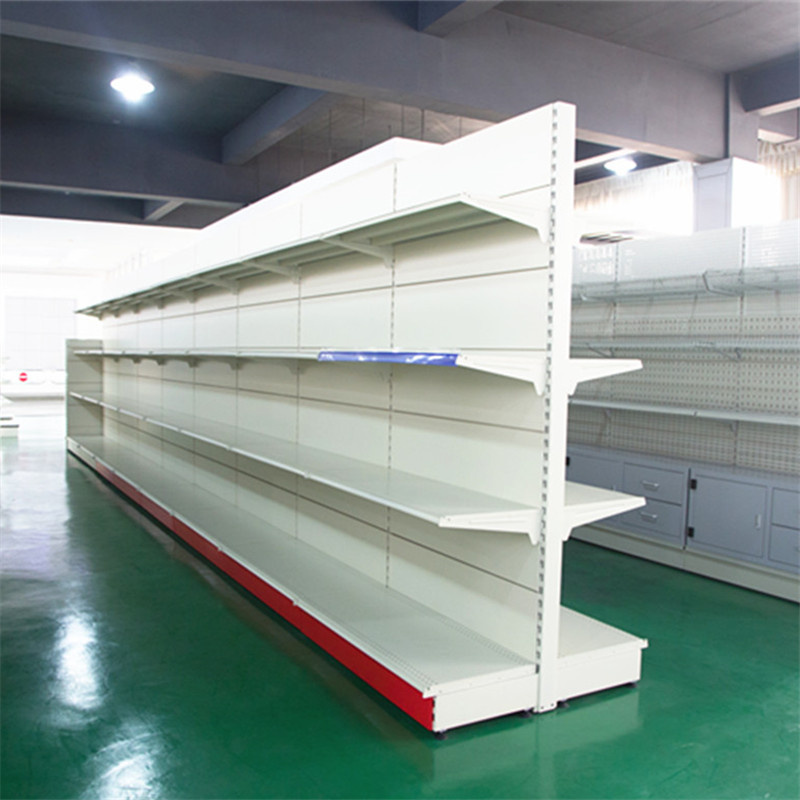

Retail Store Display Supermarket Double Sided Gondola Shelf
Product Description
1). Usual size: L1000 X W1000 X H2000mm, double side, 4 layers
L1000 X W500 X H2400mm, single side, 5 layers
2). Layers for each unit: 3-7 layers are choiceable
3). Weight capability: 50--180kg/layer just according to material choice
4). Each layers are adjustable freely
5). Easy to assemble & dismantle
6). Packing: Upright with bubble foam wrapped, others with carton
7). Different dimension, thickness, color, type are available for us
8). OEM service can be offered
Contect Us:
Sales : April
phone number: +86-18255643822
Euro style:Basic shelving components | Size | options(mm) |
Upright | Section size/ | 30x60/ 30x80/ |
Lenght/ | 1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/ |
|
2510/2610/2710/2810/2910/3010 |
Thickness/ | 2.0/ 2.5 |
Base leg | Length | 200/250/300/370/470/570/670/770 |
Height | 60/110/160/260 |
Shelf | Width | 665/800/1000/1250/1330 |
Depth | 200/250/300/370/470/570/670/770 |
Thickness | 0.7/0.8 |
Wire shelf | Width | 665/1000/1250/1330 |
Depth | 370/470/570 |
Dia | 2.8 |
Preforated backpanel | Width | 665/800/1000/1250/1330 |
Height | 400/500 |
Thickness | 1.0/1.2 |
Back panel | Width | 665/800/1000/1250/1330 |
Height | 100/200/300/400/500 |
Thickness | 0.6/0.7 |
Bracket | Hook number | 2/3/4 |
Length | 200/250/300/ 370/470/570/670/770 |
Thickness | 2.5/3 |
American style:Basic shelving components | Size | options |
Upright | height | 30'' thru 120'' in 6'' (152 mm) incremnets |
|
|
Kicker plate | Length | 2' to 4' in 6'' increments |
Top/bottom spanner | Width | 3' or 4' |
Hardboard Backs | height | 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72" |
|
(Pegboard and Marteck) | Length | 2' to 4' in 6'' increments |
Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Wire shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Australian style:Basic shelving components | Size | options(mm) |
Upright(single side) | Depth | 200/250/300/320/350/400/450/500 |
Height/ | 1200/1500/1800/2100/2400 |
Thickness/ | 1.5/ 2.0 |
Shelf | Width | 600/630/900/930/1200/1230 |
Depth | 200/250/300/320/350/400/450/500 |
Thickness | 0.5/0.6/0.7/0.8/0.9/1.0 |
Wire shelf | Width | 600/630/900/930/1200/1230 |
Depth | 335/405 |
Dia | 2.7 |
Preforated backpanel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.7/0.8/0.9/1.0/1.2 |
Back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.6/0.7/0.8/0.9 |
Volcano back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.8/0.9/1.0 |
Mesh back | Height | 1200/1500/1800/2100/2400 |
Width | 600/630/900/930/1200/1230 |
Bracket | Hook number | 2/3/ |
Length | 250/300/ 320/350/400/450/500 |
Thickness | 2.0/2.5/3 |
Rear/ front beam | Length | 600/630/900/930/1200/1230 |
Wire fence | Length | 600/630/900/930/1200/1230 |
Asia style:Basic shelving components | Size | options |
Upright | Section | 30*60*2.0mm; 30*80*2.0mm; |
height | 1350;1550;1850;2150;2550mm |
|
|
Kicker plate | Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Flat back panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Pegboard panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Thickness | 0.5; 1.2mm |
Shelf | Width | 500; 650;700;800;900;1000;1100;1200;1300mm |
Depth | 200; 300;350;400;450;500;550;600mm |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Bracket | Length | 200; 300;350;400;450;500;550;600mm |
Thickness | 2.5; 3mm |
Company Information
Suzhou Yuanda Commercial Products Co., Ltd

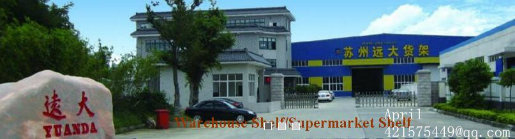

Factory:

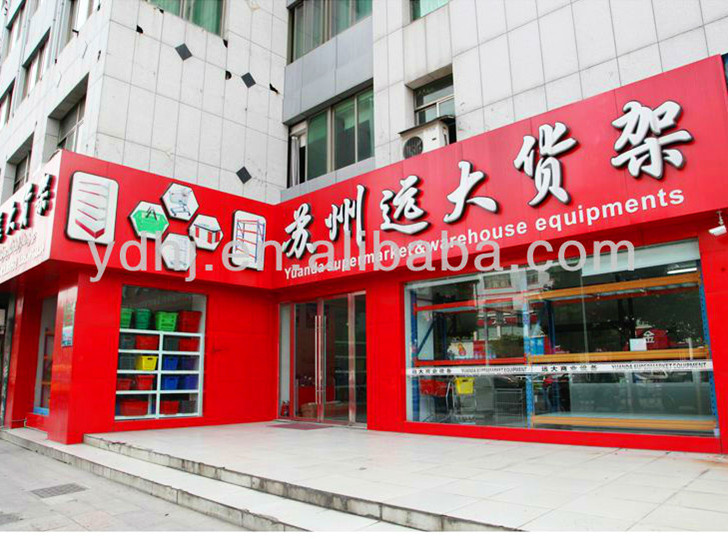

Sale store and 1000 square meter showroom:
