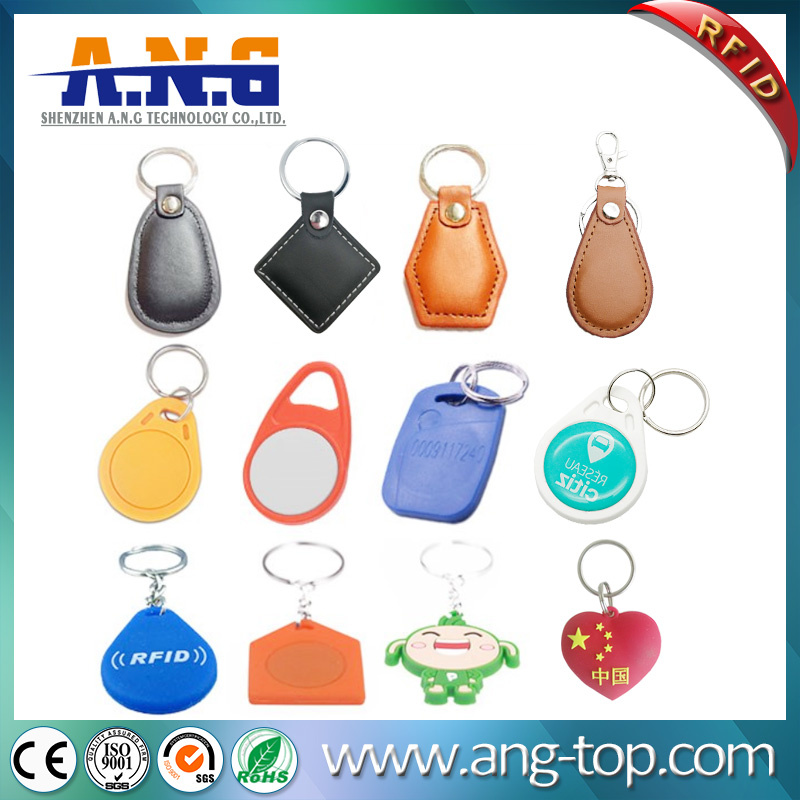

RFID Card / Em4200 Key Fobs / Smart Card / RFID Tag

Prod Model:	AK-S131
Unit Weight:	About 6g
Color:	Grey, Blue, Yellow, Red, White and Purple
Function:	Read and Write / Read Only
Chip:	Em4200

Product Description

RFID CARD / EM4200 Key fobs / Smart card / rfid tag

     EM4200 is a CMOS integrated circuit intended for use in electronic Read Only RF transponders. It is designed to replace directly the EM Microelectronic-Marin Read Only ICs EM4100/4102 and EM4005/4105.
Comparing to EM4100/4102 and EM4005/4105, the chip provides higher reading range performances and presents on its coil terminals bigger resonant capacitor (210pF and 250pF selectable by mask option).
    The 128 bit unique code is stored in laser programmed ROM. Several options are available to use 64, 96 or 128 bits of ROM.
    The circuit is powered by an external coil placed in an electromagnetic field and gets its master clock from the same field. By turning on and off the modulation current, the chip will send back the unique code contained in a factory pre-programmed laser ROM.
    This RFID Key fob is made of refined mold, advanced high temperature anti-corrosion material injection pressure, internal EM4200 chip package, by filling an epoxy resin, a combination of ultrasonic welding, can be waterproof, easy to carry features.


Description:

1.         Chip:EM4200
2.         Protocol Standard: ISO11786
3.          Read/Write Endurance: 100,000 times
4.         Operating Temperature :-20°C to + 70°C


Model	AK-S119
Dimension	37*30*8.2mm+/-0.03mm
Chip types options	EM4200
Feature	Durable, waterproof, anti-shock
	Reading range: About 2cm
	Data storage: 10 years
	Working temperature: -20ºC~70ºC
Housing material	ABS
Housing material	Blue, black, yellow , red ,white, green, red , purple etc.
Application	Access Control & Security, Time Attendance, Loyalty & Membership Management, Ticket & Payment, Club/SPA membership management, Rewards and promotion etc.

Product feature:

Material: ABS
Unit weight: about 6 g
Dimension: 37*30*8.2mm  or Customized
Color: Blue, black, yellow, red, white, green, etc.
Depends on requirement


Applications:

1.         Access Control & Security
2.         Time Attendance
3.         Loyalty & Membership Management
4.         Ticket & Payment
5.         Club/SPA membership management
6.         Rewards and promotion


Production Line

A.N.G is one of the Top-three factories with full automatic production line.

Monthly production capacity of 5000 square meters is 300000 pieces.

All raw materials are in good quality, with exported standard.

Equipments Support:

A.N.G has the advanced and precise production equipments, such as Heidelbury CMYK printing machine, Niubao Auto Chip-flip machine, Copper circle coil machine, Combination machine line, Punching machin. Also we are equipped with some reliability testing machines.
A.N.G has also got the equipments such as Programmable Salt Spray Testing Machine, Simulation Transport Vibration Table, Soaking Testing Machine , Ground resistance test set , Hi-pot Tester and Leakage current tester etc. which have ensured both the whole display and components in the stable status.

OEM/ODM:

A.N.G has advanced production management and rfid tag R&D technology and also continue to technical innovations to provide all kinds of OEM/ODM service.

R&D:

A.N.G has a professional R&D team with 10 years experience in Rfid field to provide a complete, reliable solutions, especially on the NFC field.


FAQ:

Q1. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.
    If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
    If you need printed samples, we will charge $30-$100 to cover the cost on film.
Q3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

Q4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. We suggest that you start     inquiry two months before the date .

Q5:Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: If I want to printing our logo or some text,what should we do?
Brand:OEM and ODM are available,and we can printing the LOGO, that the customers required.
Design: Client's artwork / our professional designer design free.
Artwork: AI, Corel Draw, Photoshop,CAD.
