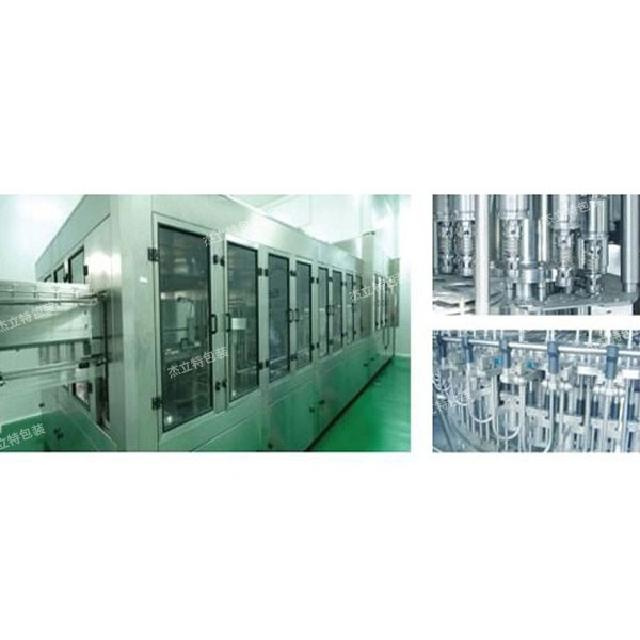

Rxxj32-24-24-8 Four-in-One Hot Filling Machine
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | RXXJ32-24-24-8 |
|---|---|
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Multi-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Atmospheric Pressure |
| Packaging Container Lifting Structure: | Chute Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Composite Materials |
Product Description
This technique is also known as heat filling, heat utilization limit standard of PET bottle, without the use of heat-resistant PET bottle, which can significantly reduce the production cost. As the filling temperature is reduced, a higher level of hygiene and microbiological control must be used. Five super clean (medium temperature) filling system set two disinfection liquid flushing, sterile washing bottle, filling and capping in one part, introduced the design idea and control technology of aseptic filling system.
The bottle by the wind sent by dialing is transmitted to the five Taiwan starwheel bottle disinfection liquid bottle washing machine on a machine. The flask clamp on the rotary tray of the flushing machine is clamped and the bottle mouth is turned over 180 degrees along a guide rail to make the bottle mouth down. Bottle washing machine in a specific area, a bottle clamp special spray disinfectant, disinfection of the inner wall of the bottle, and then enter the second stage disinfection liquid bottle washing machine disinfection; bottle into the sterile water after disinfection bottle washing machine for washing. After the bottle is sterilized, flushed and drained, the bottle is turned 180 degrees along the guide rail, so that the bottle mouth is upwards. Wash the bottle through the bottle star wheel by exporting bottle machine and transmits it to the filling machine. The bottle that enters the filling machine is kept by the bottle neck with the bottle neck. The bottle can rise and fall under the action of the cam under the action of the cam. The filling process is completed after the filling valve is opened to the top of the bottle. The filling machine adopts the pressure filling method directly connected with the UHT. After the filling is finished, the bottle passes through the bottleneck of the card to enter the rotating cover machine. The screwing knives on the screwing machine hold the bottle neck, keep the bottle upright and prevent the rotation. The capping head keeps revolution and rotation in the capping machine, grasp cover, sleeve cover, screw cap, cap off action under the action of the cam, complete the whole capping process. The finished bottle is transferred from a rotating cover to a bottle delivery chain through a flask wheel, which is transmitted by the chain of five in one to the next process. The whole machine is closed by sealing the window, and there is a proper channel at the entrance and out of the bottle. The bottom of the window is sealed with a exhaust trough, and the air cleaning system is concentrated.
2. Main features
- uses air and bottle feeding wheel connection technology, bottle feeding wheel with innovative design with bottle bottle function clamping mechanism, saves the bottle and screw conveyor chain, replacing the bottle shaped without replacing any parts and adjustment.
The bottle is used in all transmission card bottleneck technology, and the card bottle bottle clamp wheel instead of the traditional bottle does not need to adjust the equipment level of transformation, and without any replacement and adjustment parts.
A specially designed stainless steel washer bottle holder is strong and durable, not in contact with the threads of the bottle mouth parts, to avoid the bottle two pollution, by lifting washing bottle.
Is the two disinfection water flushing mode to ensure thorough sterilization bottle. The nozzle is an efficient spray nozzle, which can be flushed to any part of the inner wall of the bottle so that the washing effect can be achieved, and the water for the flushing bottle can be saved.
The bottle washing machine and a bottle clamp bottle lifting mechanism at the German igus bearing corrosion free maintenance, no lubrication, can avoid the pollution of bottles and bottle filling materials and the environment.
The filling machine adopts UHT and direct way to reduce pollution links. The feeding mode is mainly connected with the distributor through the static and static seal, which avoids the malpractice of the hard cleaning of the liquid cylinder. The seal ring in the static seal adopts the products of American Busak+Shamban company, and has good reliability.
The filling system has the function of automatic temperature control. It can monitor and display the material temperature. It has the function of automatic shutdown and alarm for low temperature and high temperature. The high and low temperature alarm temperature can be set on the spot according to the actual needs.
The filling machine is provided with a CIP cleaning cup, can make contact with the filling valve material inside and outside wall can be effective cleaning and sterilization of SIP CIP.
Is out of the bottle bottom plate adopts a spiral wheel drop, bottle shaped bottle transform does not need to adjust the height of conveyor chain, only need to replace the arc plate and the diameter of the bottle and the bottle shaped wheel, convenient and fast switching.
Be equipped with disinfection equipment surface spray sterilization system, timing bottle clamp, a driving wheel, filling valve, capping head and surface sterilization.
The stainless steel panel via tensile structure with O sealing ring, the leakage on the table all bearing seat and a support shaft is easy to leakage may drop to zero.
The touch screen operation, production speed, production counting, fault categories and fault points are displayed on the screen. And it can automatically count the information of the time of failure, the category of the fault and so on.
The filling machine with centralized lubrication system; liquid level control in the stop ring below 0.5-0.8cm; disinfection part and washing filling part separated.
The MITSUBISHI electric control system.
The German FESTO pneumatic components.
3. Technical parameters
The equipment type: RXXJ32-24-24-8
The number: 32 x 2 disinfectant rinse, washed with distilled water 24, 24 filling, capping 8
The rated production capacity: 5000 bottles / hour (500ml/ bottle)
The sterilized water bottle pressure: 0.2MPa, water: 2 * 2m3/ HR (recycling)
The sterile water bottle with water pressure: 0.2MPa, 1.5m3/: HR
The water bottle disinfection time: 20 seconds
The sterile water bottle washing time: 3.5 seconds
The rinsing water drain time: 3.5 seconds
The compressed air pressure: 0.7MPa, gas: 0.3m3/ min
To adapt to the bottle type: diameter Φ50 ~ Φ 96, high 150~310 bottles
The main motor power: 15KW
- size: 65000 x 2560 x 2400 (length * width * height)
The weight of equipment: 12000Kg
