Price: | US $ 0.9-1KGS |
---|---|
Min Order: | 1KGS |
Pay Type: | L/C,T/T,Paypal |
Prod Model: | Heavy duty racking |
---|---|
Color: | Blue/as Your Requirement |
Material: | Steel |
Structure: | Shelf |
Mobility: | Adjustable |
Closed: | Open |
Development: | New Type |
Serviceability: | Common Use |
Height: | 0-15m |
Weight: | 1500-4500kgs |
Pallet Racking | Uprights H Bracing D Bracing Base Plate Box Beam Plastic Spacer dynabolts Bolts&Nuts Safety Pin |
Accessories | Support Bar Wire Decking Corner Guard Frame Protector Row Spacer |
Certificates | ISO9001 |
1, Frame Height: Up to 25000mm
2, Beam Length: Up to 45000mm
3, Capacity: Up to 4000kg each level
4, Upright Section: 80X60, 90X70, 100X70, 120X87, etc., adjustable by every 75mm
5, Box Beam Section: 80X50, 90X50, 100X50, 110X50, 120X50, 140X50, 160X50, etc.
6, Step Beam Section: 80X50, 95X55, 115X55, 135X55
7, Material: High quality raw materials from big steel manufacturers
8, Finish: Powder Coating Standard color blue, orange, grey yellow, green, red.
Galvanized for outdoor use
9,Lead Time: 2-3 weeks. (Icho Storage)
Features:
1. Pillars set up a top-down delivery times crosswise reinforced structure is more reasonable;
2. The one-piece beam, the Department of product design patent can be installed activity badges can be laid directly on galvanized steel grating;
3. Multi-column folded surface, 90 * 70 column up to 21 surfaces, solid stable;
4. Coupon bidirectional hanging tooth new structure is currently the only use of that beam stress condition better.

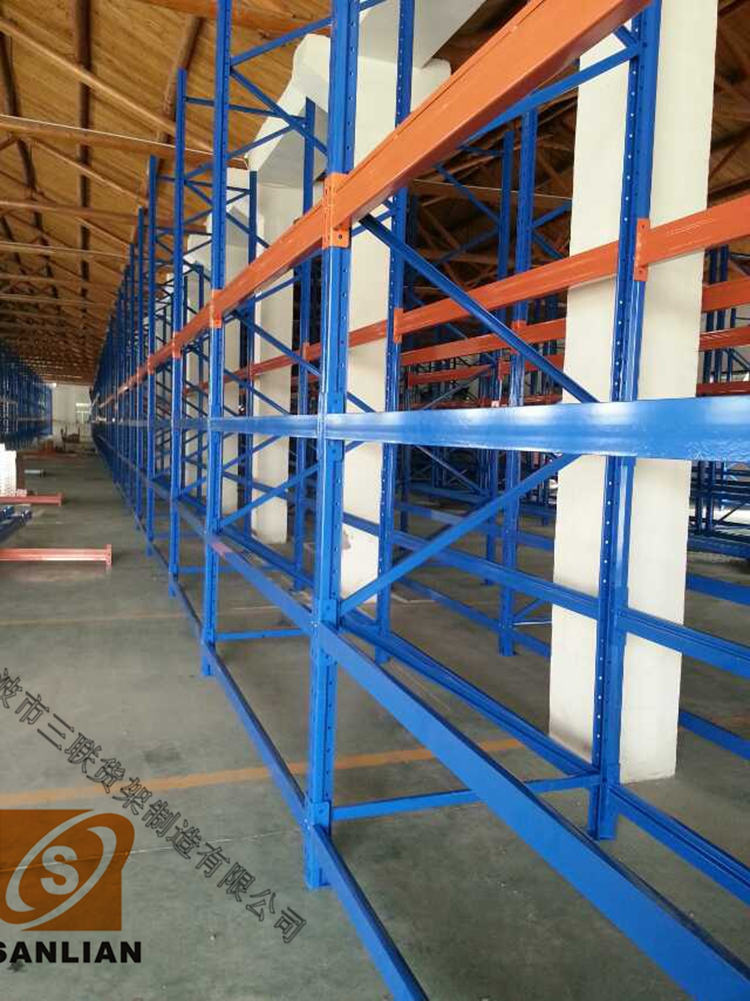

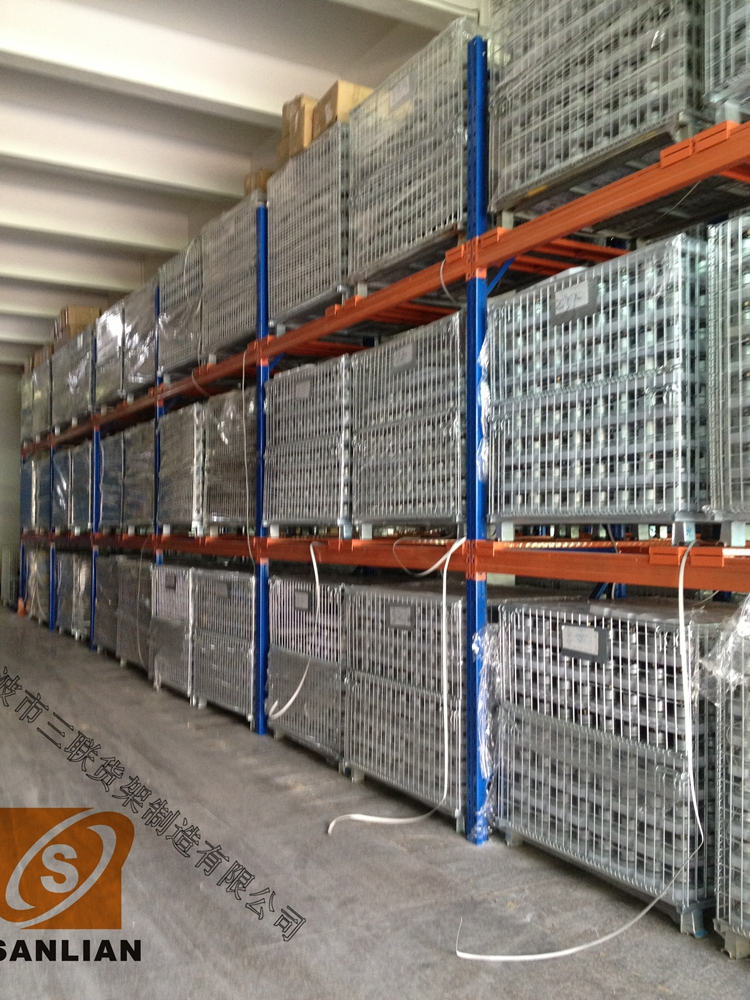

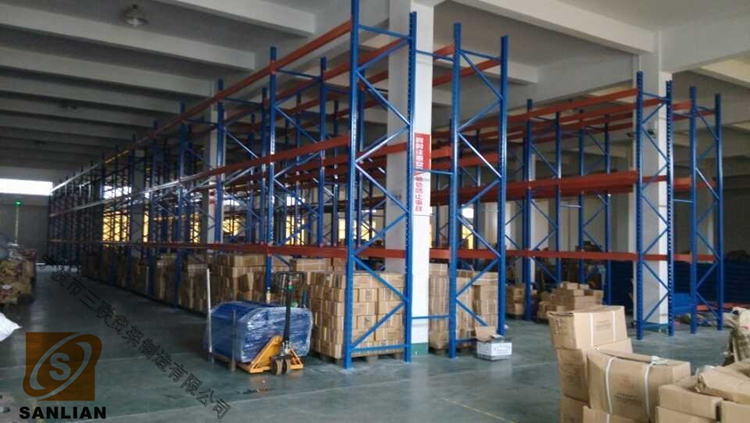

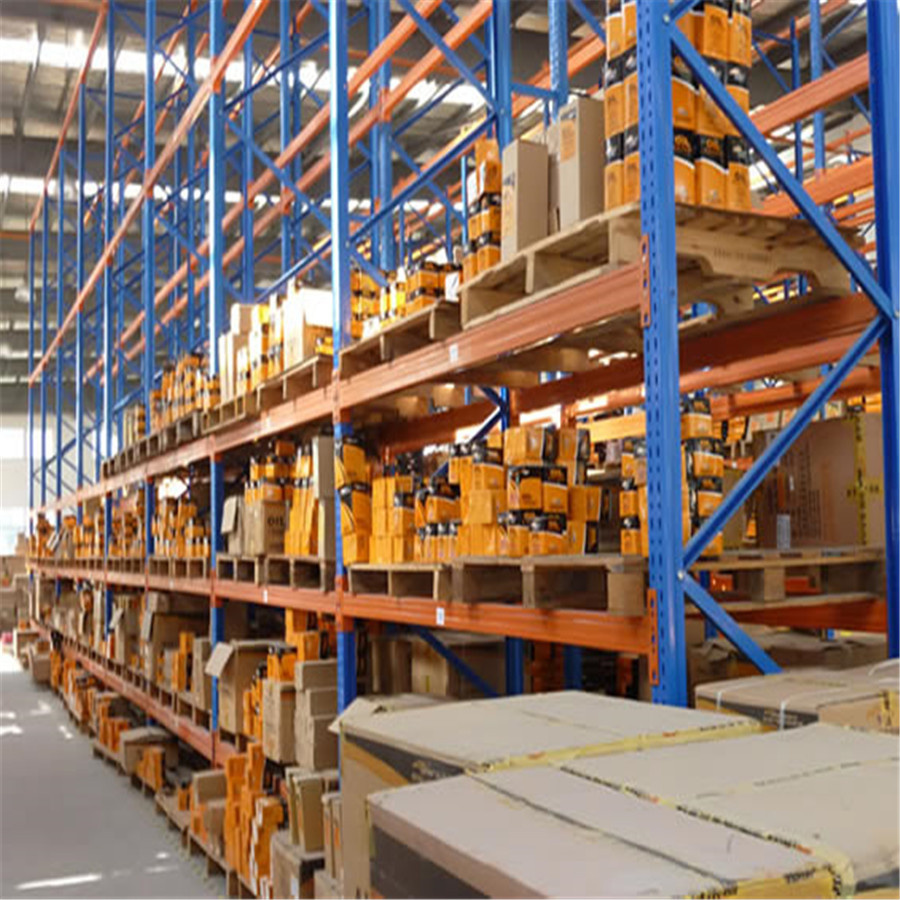

Product Picture
About Us
Yuyao Sanlian Racking Manufacturing Co., Ltd. is a professional storage shelf equipment manufacturer engaged in the planning, design, production, sales, installation and service. Our company has advanced cold-formed steel rolling production lines, automatic punching production lines, electrostatic power coating line, shear folding, welding sheet metal processing equipment. Shelf technology is imported from abroad, has feature of good assembly, large carrying capacity and strong stability. Use high quality cold and hot steel as shelf material. Production and testing is strictly according to the relevant national and enterprise standards. Set up a complete set of product quality assurance system and installation and after-sales service team.

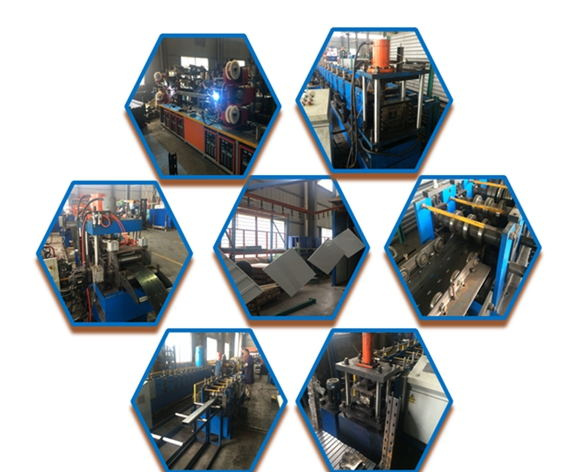

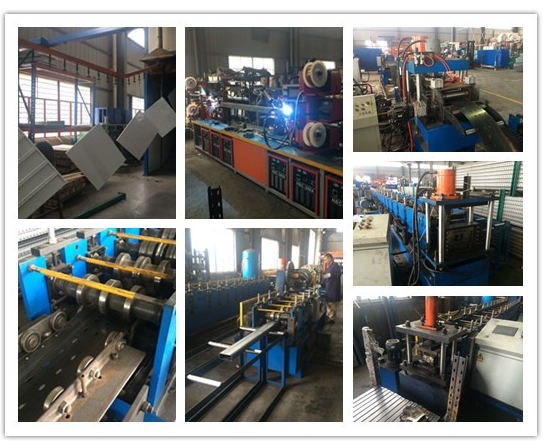

Company Pictures
