Home LED Light Products Selective Adjustable Shelf Heavy Duty Pallet Rack
Selective Adjustable Shelf Heavy Duty Pallet Rack
| Price: | US $ 750/Ton |
|---|---|
| Min Order: | 2/Ton |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | URGO-17001264 |
|---|---|
| Surface Treatment: | Powder Coating |
| Feature: | Corrosion Protection |
| Certification: | Ce |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Height: | 3-12m |
| Weight: | 500-4000kg |
Product Description

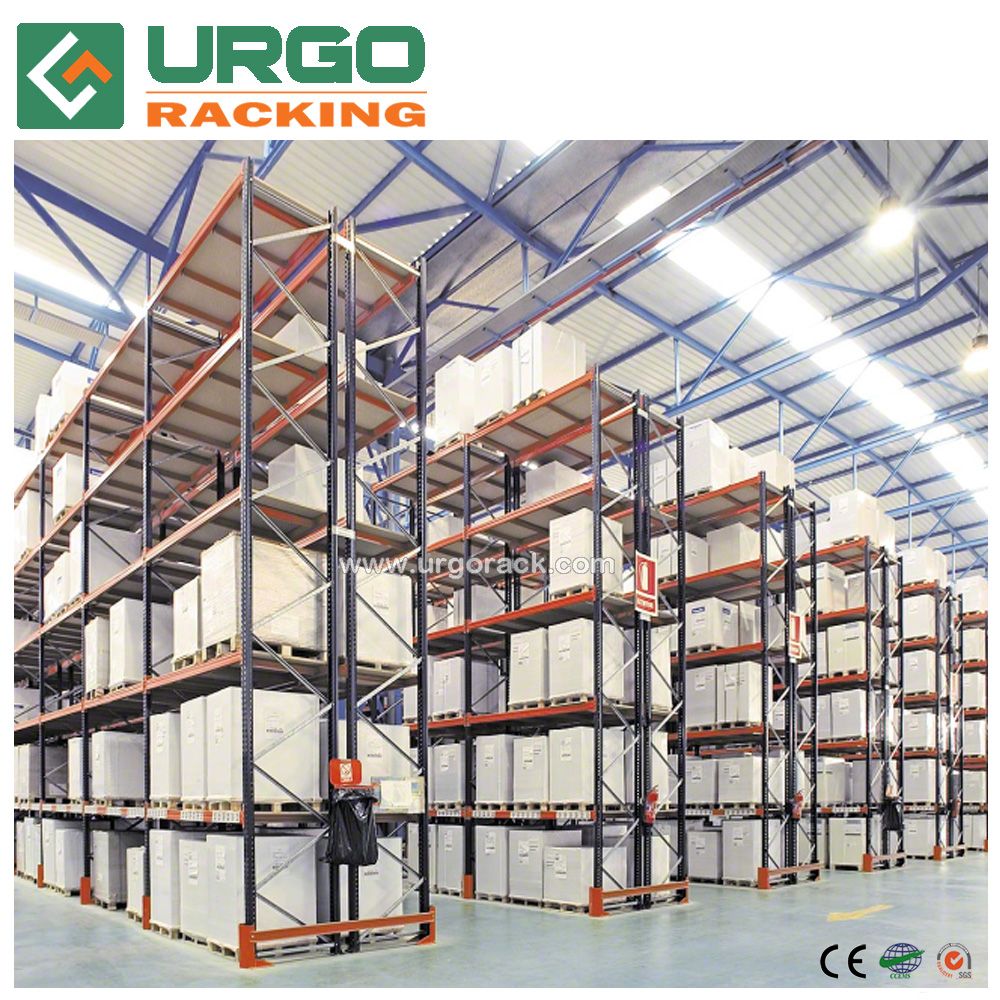

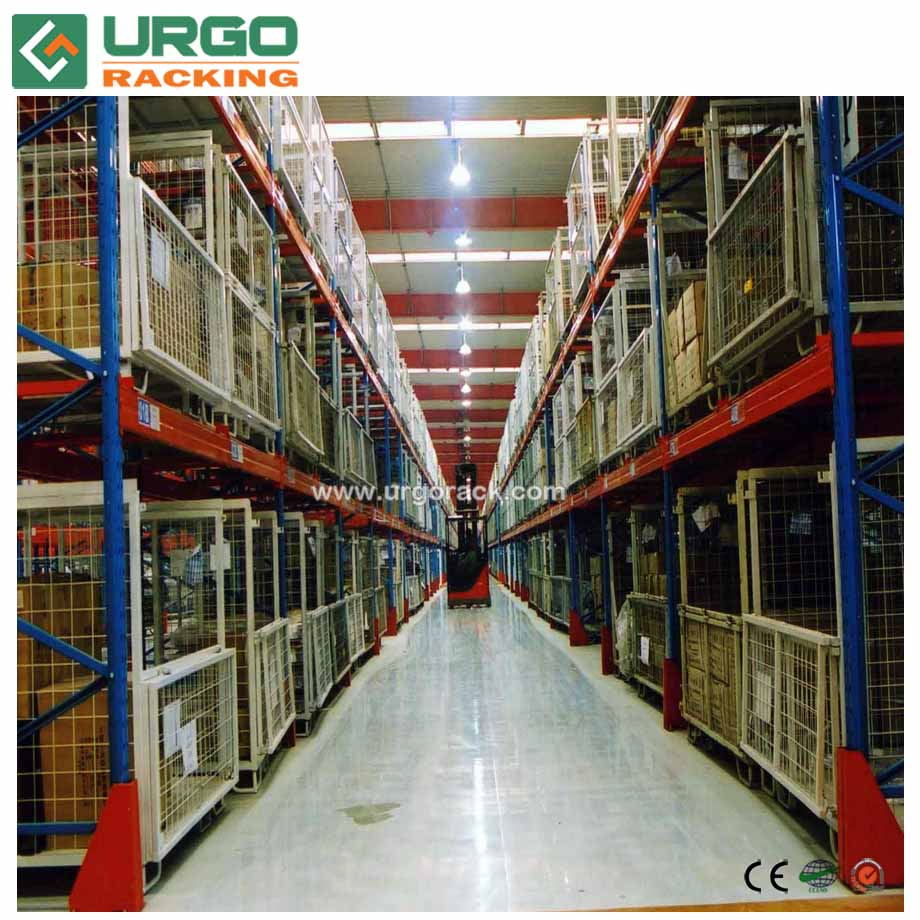

URGO Selective pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easily to your specific needs.Feature:
1.100% accessibility to individual pallets;
2. Easy picking lower levels;
3. Good storage density;
4. Easily installed and repositioned;
5. No special lift trucks required;
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 | |||||
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |

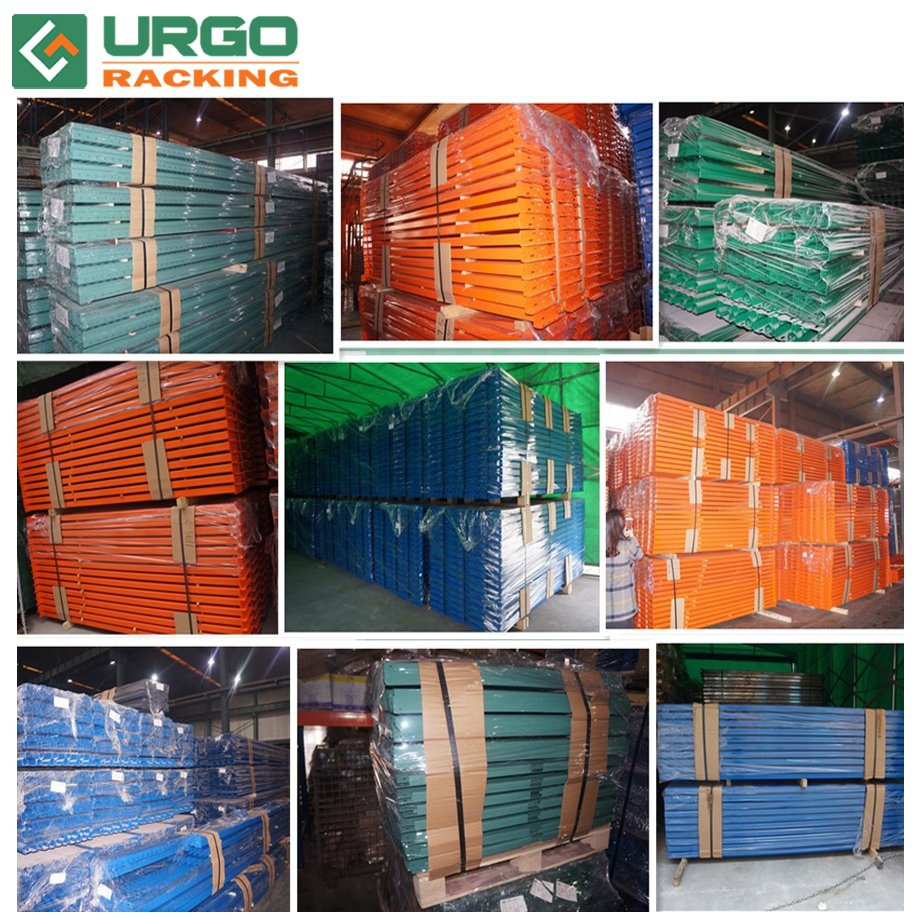

Packaging and shiping
Frequent Question Answer
1. Q: What makes you different with other suppliers?
A: 1) Our excellent service For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours
2) Our quick manufacturing time
For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.
3) Our special export designWe pay very much attention to the export packages. We have plastic clips on the beams to protect the beams
from surface damage in the transportation, We have got thewhole uprights wrapped with transparent plastic film.
4) Our warranty time
The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty !
2. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
3. Q: Are samples available?
A: Yes, we can send some sections of samples for your reference by express.
4. Q: Is Galvanised Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
5. Q: How can I get your quick quotation on my pallet racking project?
A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information:
1) Required Pallet Racking Dimension: Height*Depth*Length?
2) Number of Levels?
3) Loading Capacity of each level?
4) Racking Quantity?
Nanjing Urgo Logistics Equipment Co., Ltd is located in Jiangning Economic Development Zone, Nanjing City, China, Set the development, design, production, sales, installation and after sale service in one, after years of development, she has become the leading manufacturer of logistics and warehousing equipment First, she is recognized as one of the industry leaders.
Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.
Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.
Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
