Selective Duty Heavy Warehouse Storage Equipment Drive in Rack

Prod Model:	DR-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001, As4084
Color:	Customizable
Depth Of Frame:	Customizable
Surface Treatment:	Powder Coating or Galvanization
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Height:	up to 10m
Weight:	up to 8000kgs

Product Description

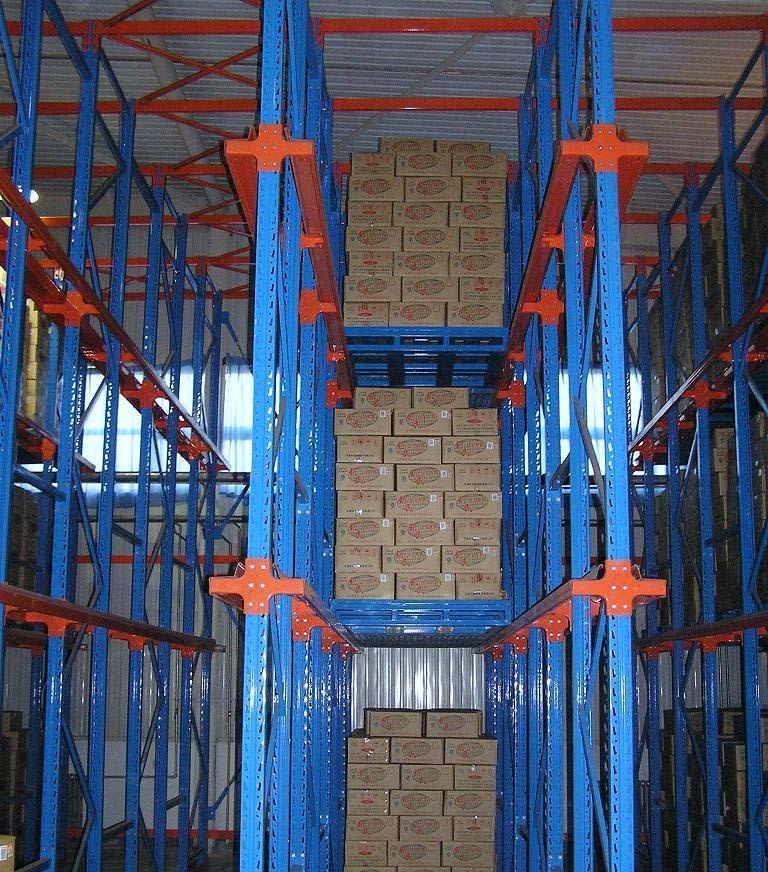

Selective Duty Heavy Warehouse Storage Equipment Drive in Rack

Sin-Sino Drive-In Pallet Rack is designed and manufacturered to Australian Standard -Steel Storage Rack AS4084-1993.

Drive-In Pallet Rack Storage System allow selection of a batch of pallets in storage. Rows of pallet storage lanes are arranged with operating aisles between them, to allow transport and access to storage lanes.

Storage lanes can be two, to any number of pallets deep. However, lanes over 7 pallets deep should be carefully considered to minimised pallet handling difficulties, ensure pallet turnover and storage position losses are minimised and safety is not jeopardised.

Aisle widths are determined by handling equipment requirements. Storage is in a Last-In-First-Out(LIFO) arrangement.

Features:
1. Forlift driven through the aisles for picking and loading pallets.
2. Last-In-First Out storage style.
3. Improve warehouse space utilization

Specification:

Specifications of Beam
Style	Item	Height(mm)	Width(mm)	Thickness(mm)
P Style Step Beam	1	50	30	1.5
	2	60	40	1.5
	3	80	50	1.5
	4	110	50	2.5
RHS Beam	5	50	30	1.5
	6	60	40	1.5
	7	80	40	1.5
	8	80	40	2.0
Box Beam	9	80	45	1.5
	10	80	50	1.5
	11	90	45	1.5
	12	90	50	1.5
	13	100	45	1.5
	14	100	50	1.5
	15	110	45	1.5
	16	110	50	1.5
	17	120	45	1.5
	18	120	50	1.5
	19	140	45	1.5
	20	140	50	1.5
	21	160	45	1.5
	22	160	50	1.5

Specifications of Upright
Item	Width(mm)	Depth(mm)	Thickness(mm)	Loading Capacity(kg)
1	85	67	1.6	7000
2	85	67	1.8	8500
3	85	67	2.0	10000
4	85	67	2.3	12500
5	100	67	1.8	10500
6	100	67	2.0	12000
7	100	67	2.3	13800
8	100	95	2.0	12000
9	100	95	2.3	14500
10	100	95	2.5	16000
11	100	95	2.75	18000
12	100	95	3.0	20000
13	120	95	2.5	17000
14	120	95	2.75	19000
15	120	95	3.0	21000


Certificates

ABOUT SIN-SINO

Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify  end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.
Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United looks forwards to being part of your success!
