Selective Racks/Pallet Racks for Storage Warehouse

Prod Model:	PR02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001, As4084, Ce, SGS
Surface Finished:	Power Coating, Galvanized
Installation:	Easy Assemble and Disassemble
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Weight:	up to 4, 000 Kgs Udl/Level
Height:	up to 12m

Product Description

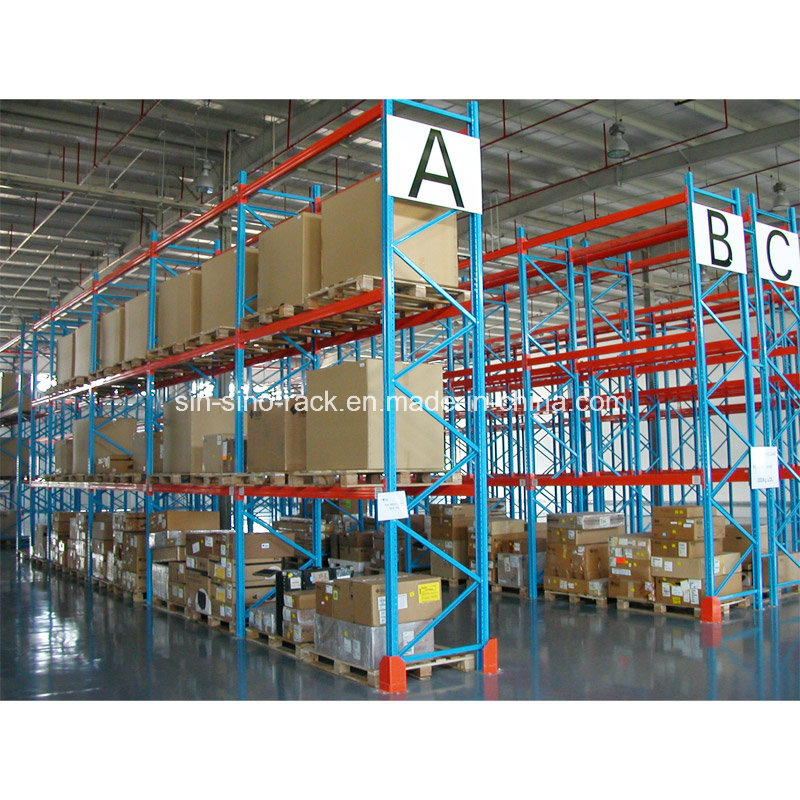

Heavy Duty Pallet Rack for Industrial Warehouse

Sin-Sino Pallet Rack is designed and manufacturered to Australian Standard -Steel Storafe Racking AS4084-1993.

Pallet Rack is one of the most widely used pallet racking systems. Designed for strength, durability and ease of assembly, the system comprises a comprehensive choice of frames and pallet support beams which are precisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectively.


Features:
1. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
2. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

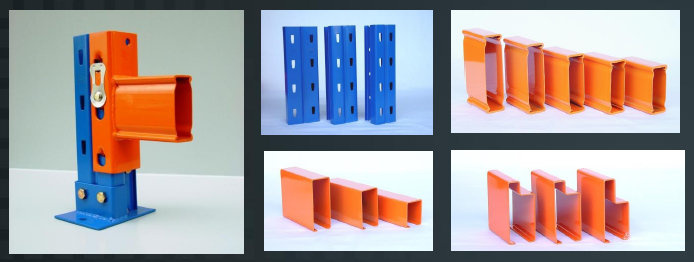

 Upright: Upright 75, Upright 80, Upright 90, Upright 100, Upright 120 customized by clients.
 Beams are divided into Box beams and Step beams.
 Sectional sizes of box beams include: K80, K90, K100, K110, K120, K140, K150, K160.



Specifications of Beam
Type		Item	Height(mm)	Width(mm)	Thickness(mm)
P style Pipe(Step Beam)		1	50	30	1.5
		2	60	40	1.5
		3	80	50	1.5
		4	110	70	1.5
		5	140	70	1.5
		6	160	70	1.5
Box Beam		7	80	50	1.5
		8	100	50	1.5
		9	110	50	1.5
		10	120	50	1.5
		11	140	50	1.8
		12	160	50	2.0

Specifications of Upright
Item	Width(mm)	Depth(mm)	Thickness(mm)	Loading Capacity(kg)
1	85	67	1.6	7000
2	85	67	1.8	8500
3	85	67	2.0	10000
4	85	67	2.3	12500
5	100	67	1.8	10500
6	100	67	2.0	12000
7	100	67	2.3	13800
8	100	95	2.0	12000
9	100	95	2.3	14500
10	100	95	2.5	16000
11	100	95	2.75	18000
12	100	95	3.0	20000
13	120	95	2.5	17000
14	120	95	2.75	19000
15	120	95	3.0	21000

For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity? (No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.


AS4084 Certificate, ISO9001



ABOUT SIN-SINO

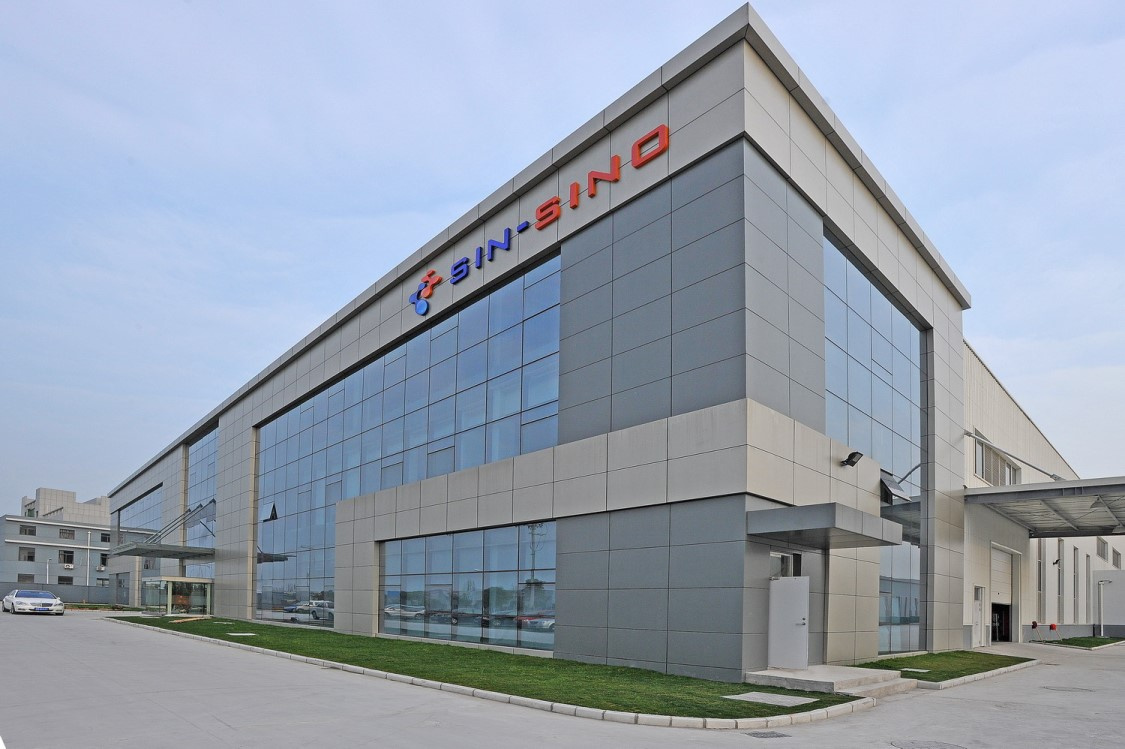

Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify  end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.


Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forwards to being part of your success

Frequently Asked Question
What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !

2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days.
The delivery time of the special products is according to the time of setting up of the tooling.

3.What is the term of payment?
1) T/T payment.
2) LC at sight

4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
