Sin-Sino Warehouse Mezzaine Steel Platform and Multi-Tier Rack
| Price: | US $ 1/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | MF-02 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001, As4084, CE, SGS |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Combined |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Mezzanine |
| Weight: | 500kgs/M2 |
Product Description

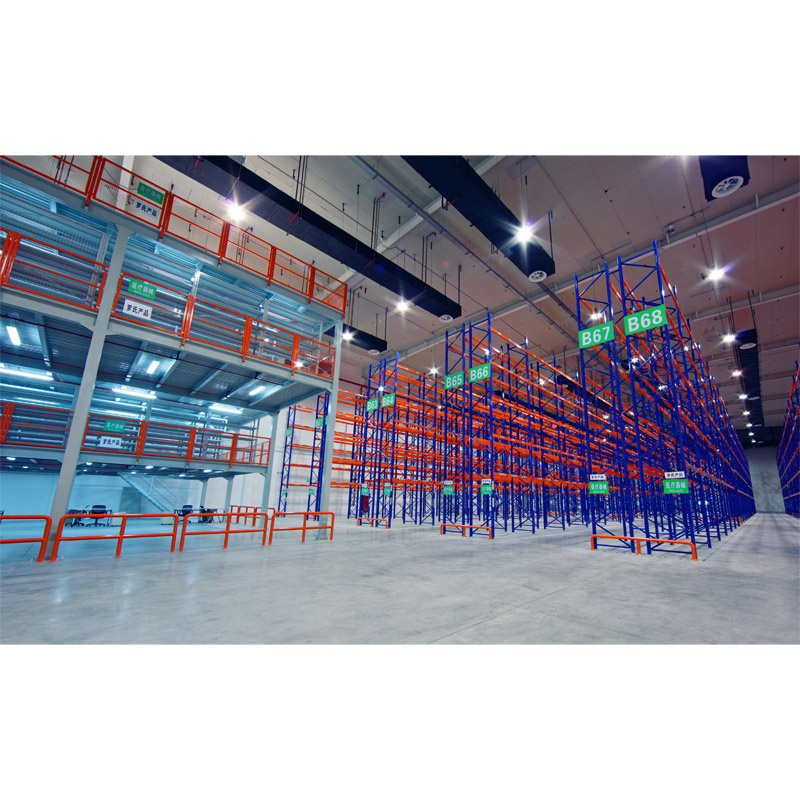

Warehouse Steel or Mezzanine Floor Racking
To extend available floor space, the solution is to add another floor. With Sin-Sino Mezzanine Floor system, it can be an easily affordable option.
The Sin-Sino Mezzanine System is ideally suited to situations where space is at a premium. A Mezzanine Floor makes effective use of vertical space to provide additional work or storage areas, ideal for all aspects of commercial and industrial applications.
Quick and easy to build from precision engineered standard components, Sin-Sino Mezzanine Floors are endlessly adaptable, the system can be extended or dismantled and relocated as required.
As with every Sin-Sino product, safety is all important. Optional pallet safety gates offer protection at exposed loading points and protective cladding material can be incorporated, give fire resistance in accordance with building regulations.Suspended ceilings can also be installed, complete with integral lighting systems.
Specification:
Specifications of Upright | |||
| Item | Height(mm) | Width(mm) | Thickness(mm) |
| 1 | 55 | 55 | 1.5 |
| 2 | 55 | 55 | 1.8 |
| 3 | 55 | 50 | 1.5 |
| 4 | 55 | 50 | 1.8 |
| 5 | 55 | 54 | 1.5 |
| 6 | 55 | 54 | 1.8 |
| 7 | 75 | 63 | 1.5 |
| 8 | 75 | 63 | 1.8 |
| 9 | 75 | 63 | 2.0 |
| 10 | 75 | 68 | 1.5 |
| 11 | 75 | 68 | 1.8 |
| 12 | 75 | 68 | 2.0 |
| 13 | 80 | 60 | 1.8 |
| 14 | 80 | 60 | 2.0 |
| 15 | 90 | 67 | 1.5 |
| 16 | 90 | 67 | 1.8 |
| 17 | 90 | 67 | 2.0 |
| 18 | 100 | 67 | 1.5 |
| 19 | 100 | 67 | 1.8 |
| 20 | 100 | 67 | 2.0 |
| 21 | 100 | 95 | 2.0 |
| 22 | 100 | 95 | 2.3 |
| 23 | 100 | 95 | 2.5 |
| 24 | 120 | 100 | 2.5 |
| 25 | 120 | 100 | 2.75 |
| 26 | 120 | 100 | 3.0 |
| Specifications of Beam | ||||
| Style | Item | Height(mm) | Width(mm) | Thickness(mm) |
| P Style Step Beam | 1 | 50 | 30 | 1.5 |
| 2 | 60 | 40 | 1.5 | |
| 3 | 80 | 50 | 1.5 | |
| 4 | 110 | 50 | 2.5 | |
| RHS Beam | 5 | 50 | 30 | 1.5 |
| 6 | 60 | 40 | 1.5 | |
| 7 | 80 | 40 | 1.5 | |
| 8 | 80 | 40 | 2 | |
| Box Beam | 9 | 80 | 45 | 1.5 |
| 10 | 80 | 50 | 1.5 | |
| 11 | 90 | 45 | 1.5 | |
| 12 | 90 | 50 | 1.5 | |
| 13 | 100 | 45 | 1.5 | |
| 14 | 100 | 50 | 1.5 | |
| 15 | 110 | 45 | 1.5 | |
| 16 | 110 | 50 | 1.5 | |
| 17 | 120 | 45 | 1.5 | |
| 18 | 120 | 50 | 1.5 | |
| 19 | 140 | 45 | 1.5 | |
| 20 | 140 | 50 | 1.5 | |
| 21 | 160 | 45 | 1.5 | |
| 22 | 160 | 50 | 1.5 | |
Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity? (No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.

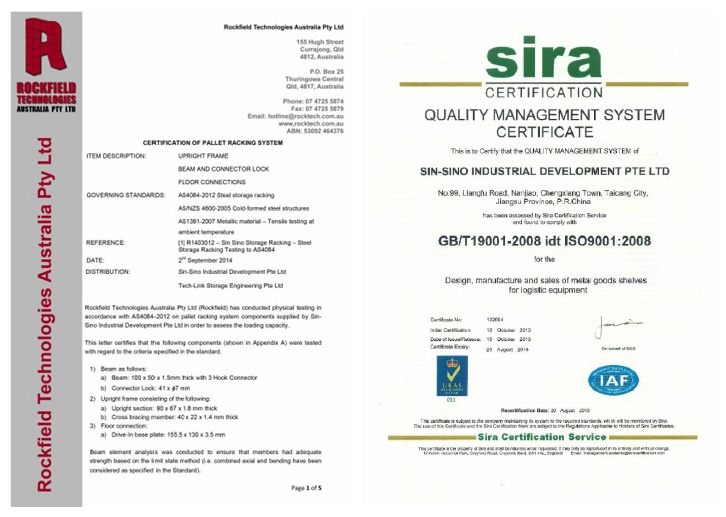

AS4084 Certificate&ISO9001
Frequently Asked Question
What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.

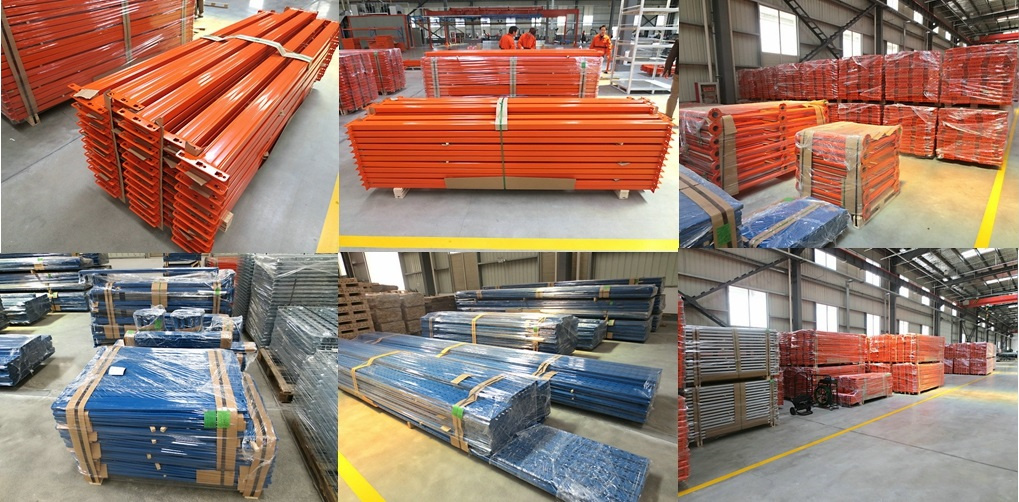

3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days. The delivery time of the special products is according to the time of setting up of the tooling.
3.What is the term of payment?
1) T/T payment.
2) LC
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity? (No mimimum limit for our proudction, but to keep the most economical shipping costs as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
About Sin-Sino:

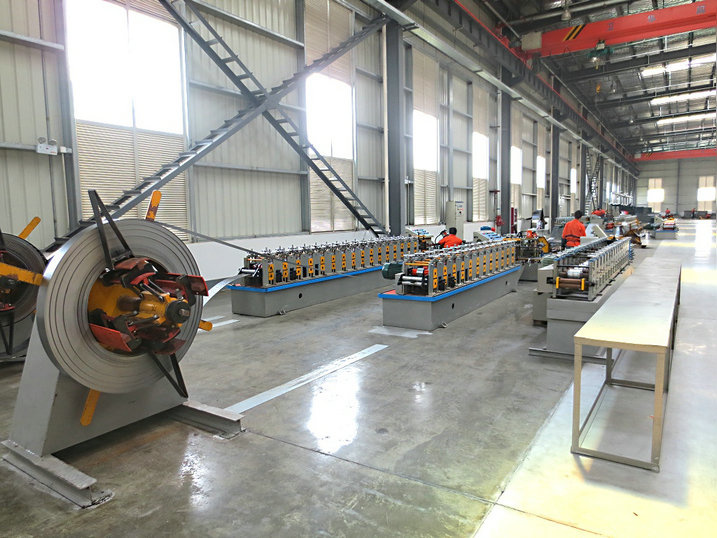

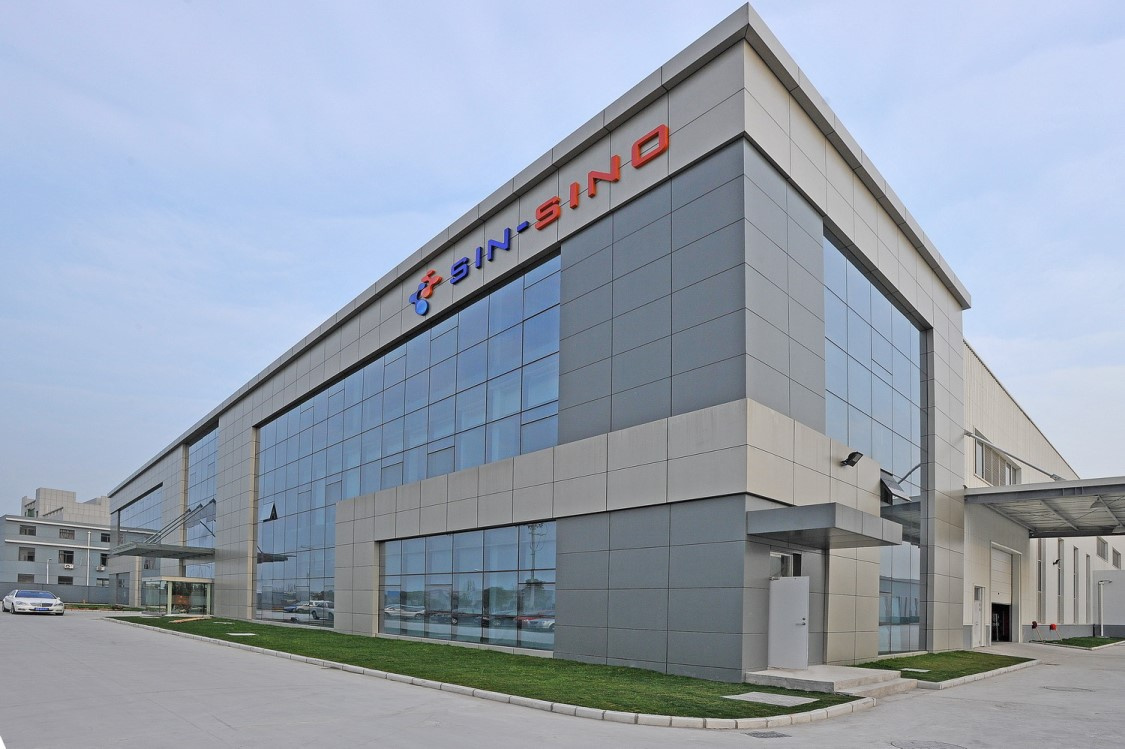

SIN-SINO United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions
SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.
Our Mission :
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United Looks Forward to Being Part of Your Success!
Sin-Sino United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions
SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.
Our MISSION
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forward to being part of your success.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions
SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.
Our MISSION
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forward to being part of your success.
