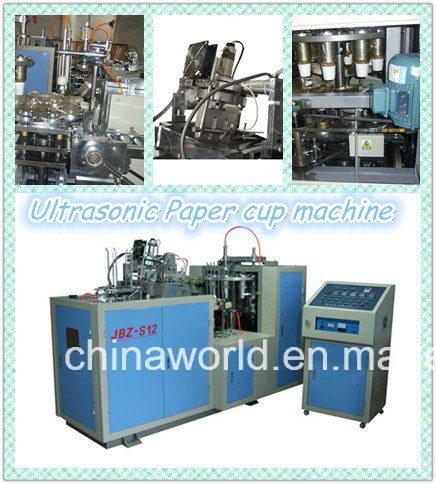

Single and Double PE Coated Paper Cup Making Machine Jbz-S12

Prod Model:	JBZ-S12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	S12/S16/S22
Usage:	Beverage
Material:	Paper
Type:	Dixie Cup
Eco-Friendly:	Eco-Friendly

Product Description

JBZ-S12 double-sided PE coated paper cup forming machine is a multistation full-automatic machine producing double-sided PE coated drink cups, ice cream cups or conical vessels of other food through continuous process of paper feed, ultrasonic medium welding, tube forming, cup rabbet lubrication, oil injection, bottom flushing, duplex bottom heating, bottom knurling, upper mouth hemming and finished product stacking. Because of ultrasonic adhesion technology, the product is suitable for double-sided PE coated paper full printed drink cups, ice cream cups and other conical vessels.

Main Characteristics:
1. Adopt ultrasonic wave technology bonding, which ensures high bonding strength and handsome appearance.
2. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
4. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)
5. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
6. The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.
7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
8. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/, and is free of water seepage and water leakage.

PRODUCTS SAMPLES Show



Model	JBZ-S12	JBZ--S16	JBZ-S22
Specification of paper cup	6oz,8oz,12oz	12oz ,14 oz ,16oz	16oz, 22oz
Paper material	Single-sided or double-sided PE coated paper	Single pe or double pe coated paper	Single pe or double pe coated paper
Outer diameter of cup rabbet	50-95	50-95	50-95
Outer diameter of cup bottom	35-70	35-70	35-70
Cup height	50-120	100-150	100-175
Bottom depth	≤10	≤10	≤12
Conicity	2-8o	2-8o	2-8o
Rated productivity	40-50pcs/min	35-45pcs/min	30-40pcs/min
Power supply	380v  50HZ	380v 50HZ	380v 50HZ
Total power	6.5KW	8KW	8KW
Weight	1600kg	1700kg	1900kg
Packing size(L*W*H)	2800x1350x1800mm (main body) 800x750x1300mm (panel board  box )	3000×1450×1900mm(main body) 800×750×1350mm(panel board box )	3300×1450×2000mm(main body) 800×750×1350mm(panel board box )
Air Pressure Request	0.2m3/min;0.6MPa (provided by customer)	0.2m3/min;0.6MPa (provided by customer)	0.2m3/min;0.6MPa (provided by customer)
