Prod Model: |
STX |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Structure: |
Wall Mounted |
Type: |
Resistance Box, Meter Box |
Product Description

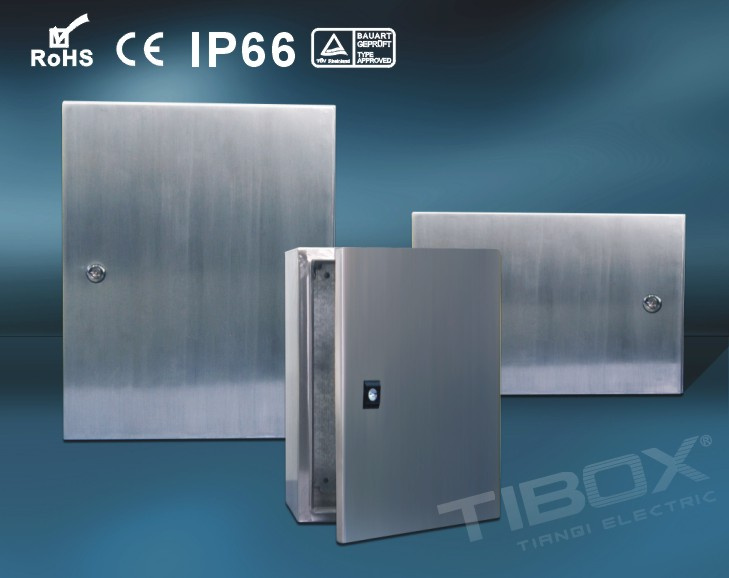

Material: enclosure and door manufactured from AISI 304 sheet steel ( AISI 316L on request)
- Flat mounting plate manufactured from galvanised sheet steel.
- Hinges in stainless steel
- Thickness of sheet steel: enclosure & door 1.2mm till size STX6 820, then 1.5mm
- Thickness of mounting plate: zinc coated steel 1.5mm till size STX6 820, then 2.0mm
Supply include: enclosure body, door with lock & galvanised mounting plate, seal gasket and fixing accessories.
Wall mount brackets 4pcs/set to be offered separately.
- Protection degree: IP 66
