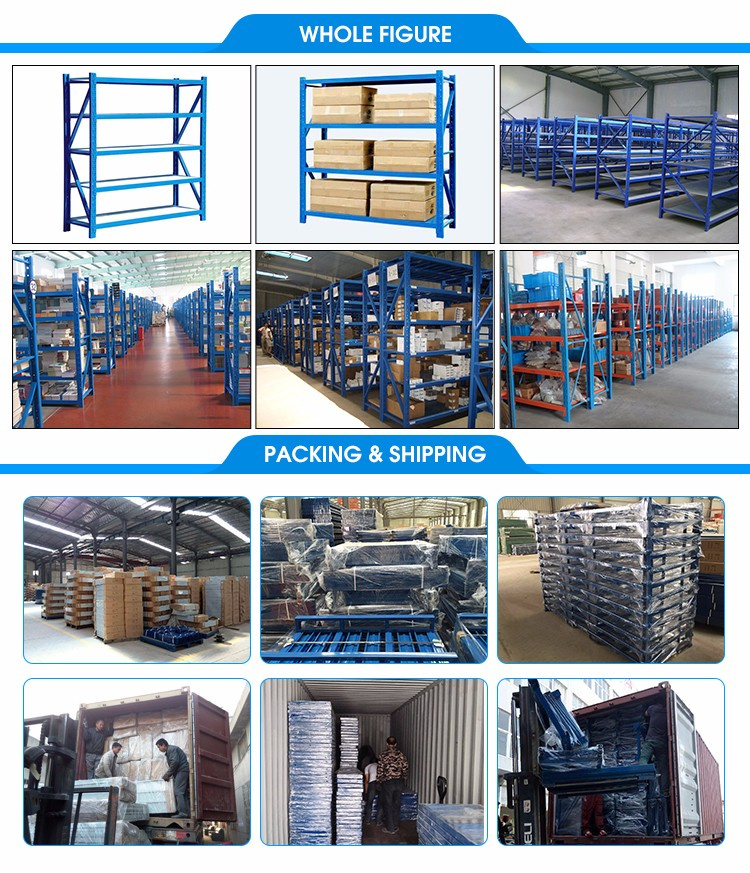

Slotted-Angle Shelving
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,D/P |
| Material: | Steel |
|---|---|
| Structure: | Shelf |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Weight: | 150kg |
| Closed: | Open |
| Serviceability: | Common Use |
Product Description
| 1. Features | 1) Beam levers are adjustable in 75mm pitch interval. |
| 2) Different sizes, various specifications and colors are available according to your different needs. | |
| 3) Maximizes space utility ratio while retaining optimum product accessibility. | |
| 4) Strength and rigidity prevents compression damage to goods. | |
| 5) Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| 2. Material: | High grade Q235B Cold Rolled Steel |
| 3. Surface Treatment: | High-quality Powder Coating Finishing. |
| 4. Load Capacity & Dimension: | 1) Loading capacity: 200-500 kgs /pair beam. |
| 2) Height: 1000-5000mm | |
| 3) Depth: single row 600mm,3 uprights:1200mm | |
| 4) Length: 1200/1500/1800/2000/2500mm | |
| Special sizes also available to specific storage needs. | |
| 5. Main Parts Specs(mm): | 1) Upright: 80*40*1.0/80*40*1.5 |
| 2) Beams:60*40*1.0/60*40*1.5/80*50*1.5 | |
| 3) Horizontal & diagonal bracings: 40*24*1.5 | |
| 4) Upright Footplates: 8*8*2.0mm | |
| 5) Bolts & nuts | |
| 6) Anchors and all necessary components. | |
| 6. Certificates. | CE certified, ISO9001, |
| 7. Quick Delivery. | Within 15 workdays (negotiable), according to quantity |
