Home LED Light Products Square & Round Tempered Glass /Toughened Glass

Square & Round Tempered Glass /Toughened Glass

Square & Round Tempered Glass /Toughened Glass
Price: US $ 1/Box
Min Order: 1/Box
Pay Type: L/C,T/T
Shape: Flat
Appearance: Flat Tempered
Steel Degree: Tempered Glass
Fragment State:
Technics: Physically Tempered
Usage: Daily Products

Product Description

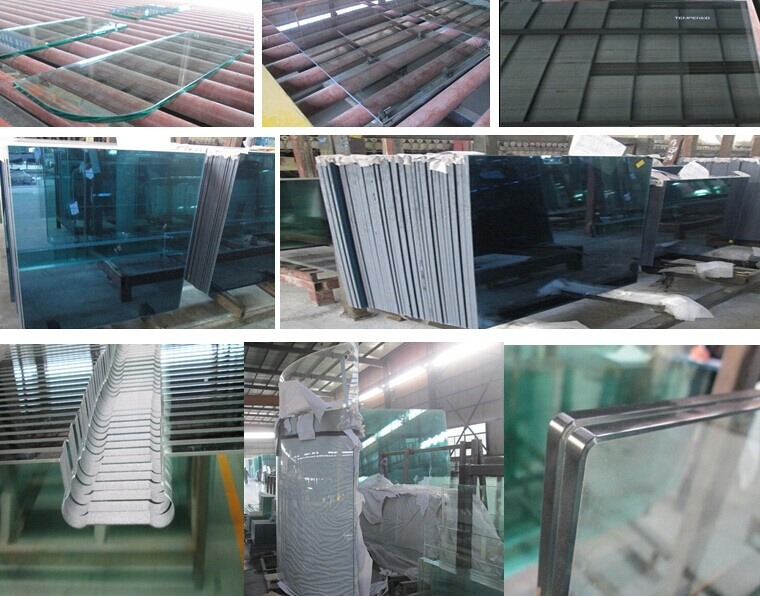

Square & Round Tempered Glass /Toughened Glass

*More than 10 years manufacturer and supplier experience
*Quick delivery of 15 days.
*Australian Standard: AS/NZS 2208:1996-safety glazing matererials
*Safety strong packing and loading
*Option processing clear ,frosted ,heat soaked,heat strengthened
*Edging:Flat edge,grind edge,polished edge,beveled edge and others.

Tempered Glass/Toughened Glass

Tempered glass is made by heating float glass to its softening point ( 650-700°C )and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by 5 times.



Features:

1.5 times harder than ordinary float glass.
2. Tensile strength for float glass 40 MPa (N/mm2) ,tempered glass , 120-200 MPa (N/mm2)
3.Quality standard AS/NZS 2208:1996
4.It withstands abrupt temperature change of 220 Centigrade.
5.Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.


Specification:

Flat Tempered Glass

MIN 90x90mm,Max    3660x2140mm

Thickenss 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm


Bent/Curved Tempered  Glass

Max.Size 2200x750(mm)
Min Size 400*300(mm)
Thickness 5-19(mm)
Min.benting Radius 370mm




Applications:
1. External use of windows, doors, curtain wall, shopfronts, offices, houses, shops etc.
2. Interior glass screens, partitions, balustrades etc.
3. Shop display windows, showcases, display shelves etc.
4. Furniture, table-tops, picture frames etc.

Tempered Glass Equipments

1. Water jet machine ,cutting tolerance +-0.1mm
2.Screen Printing Equipment
3.Single Straight-line Glass Edging Machine
4.Double Straight-line Glass Edging Machine
5.Round Glass Edging Machine
6.Glass Drilling Machine
7.Glass Tempering Furnace
8.Glass cutting line

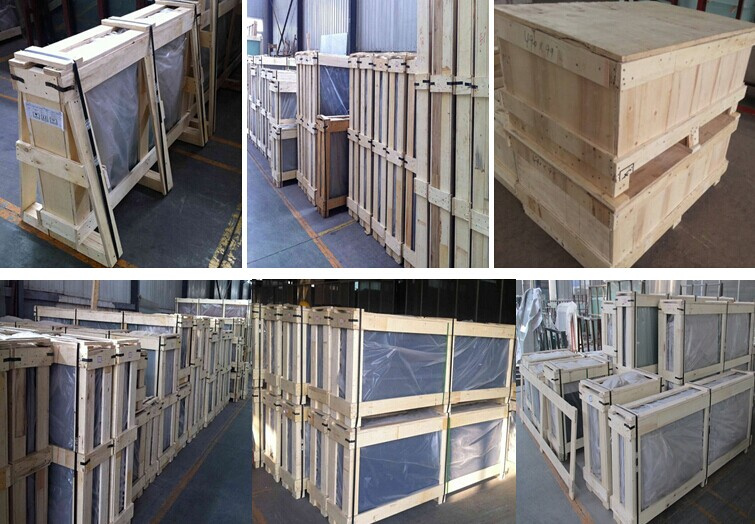

Packing detail:

1. Interlay paper between two sheets
2. Timber end caps
3. Iron/plastic belt for consolidation
4. Safety corner






   Density 2.5g/cm³
  Tensile Strength 120-200 MPa (N/mm2)
  Compressive Strength  1000 N/mm 2
  Yong's Module 73 Gpa
  Coefficient of linear expansion  9 x 10 - 6 m/Mk
 softening point   650-700°C
Thickness4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
   Payment term (1)   30% deposit ,balance paid against the copy of B/L
  payment term (2)   30% deposit ,balance will be L/C at sight
   Delivery time    15 days after received the deposit
   Packing   End caps pakcing within stripe and paper
      MOQ   1000 Square meter
 Loading port  Qingdao port
  Australian Standard:  AS/NZS 2208:1996-safety glazing matererials
Qingdao Changfubang Trading Co., Ltd and Sunny Glass Co., Ltd. Manufactures and supplies a various of glass & wooden furniture products for architectural, automotive, decorative and residential etc. Uses. We have exported flat glass, processed glass and kid's &adult furniture to more than 80 countries for 10+ years.

Quality

We inspect all products in our warehouse strictly, and have the following quality certificates & inspection credentials, also can do as your request to make sure the quality as your demand: CE, CCC, SGS, and ISO9001, etc.

Safety Packing &Loading

Our strong safety packing and professional staff of loading ensure that the glass and furniture are safely loaded, and will be in same perfect conditions when arriving. We are always improving our paking and loading to make sure the minimal damage and easier off-loading.

Services

*Our wide range of glass including raw and processed glass products in varietyof colors and customizable options to make it even easier to meet your demands wih high quality.

*Whatever the quantity is, we will do our best to make you satisfied.

*Our extensive glass expertise will help you make well-informed purchasing decisions.

*Our prompt after-sale services and supports will ensure you a smooth and successful glass purchase experience.

*Our aim is not only to provide you high quality products with good price and best services, also to build and maintain a long-term business cooperation relationship with each customer.

Welcome to visit us.
