Home LED Light Products Stackable Powder Coated Metal Container Steel Pallet /Rack
Stackable Powder Coated Metal Container Steel Pallet /Rack
| Price: | US $ 68-86/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | GT-029 |
|---|---|
| Stack Number: | 4 PCS |
| Material: | Steel Q235 |
| Application: | Plant, Lab, Warehouse, Transportation, etc. |
| Type: | Foldable Storage Cage |
| Feet Height: | 100mm |
| Load Capacity: | 1500kg |
Product Description

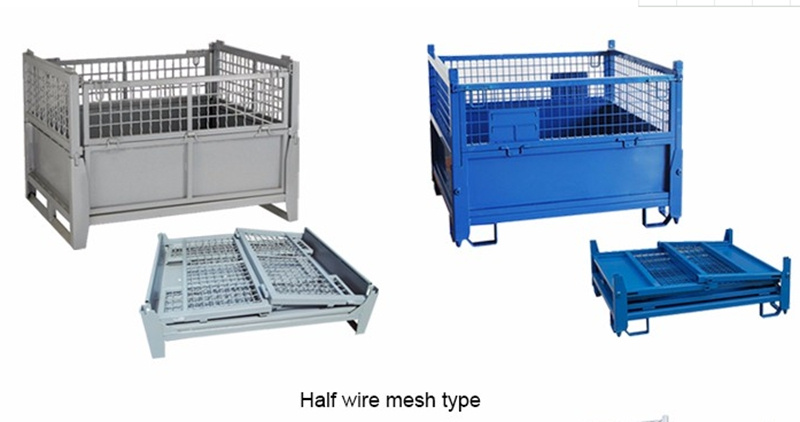

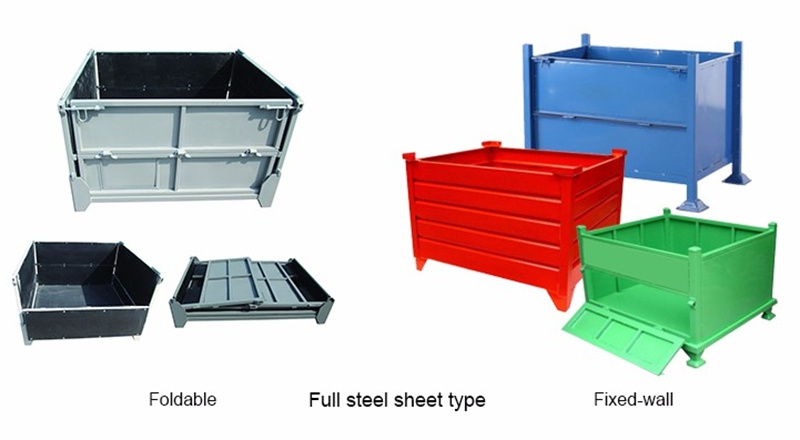

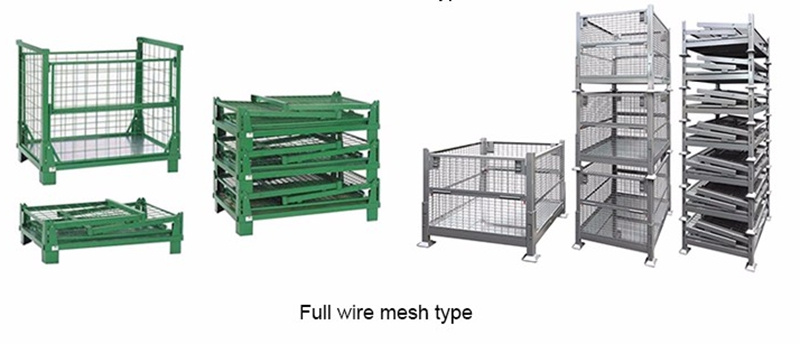

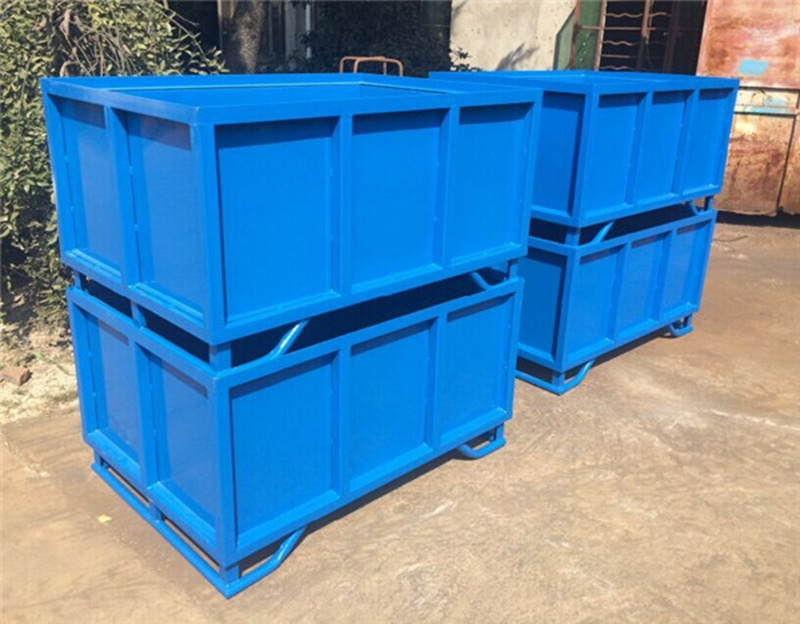

Stackable Powder Coated Metal Container Steel Pallet /Rack
Steel containers are developed on the basis of metal flat steel trays, which are used to solve the defects that steel trays can not support loose parts or bulk materials. Like the bottom of the steel tray, forklift to facilitate the four-way fork. The top can be hoisted, but also for stacking. In the storage of goods, stacking up to four layers, can achieve the three-dimensional storage.
The bottom part of the container is frame structure, welded by steel panel and steel leg. The upper four sides of the container with high quality corrugated board welding. The upper part of the mesh container is made of the same quality cold-drawn steel wire as the storage cage and welded with high-quality profiles.
Surface treatment using shot blasting technology which is better to remove rust and oil, in order to eliminate pickling and phosphate pollution resulting from pollution problems, more in line with environmental requirements. Later use 180 degrees baking technology to make the product appearance clean, beautiful, durable.
The size of the container can be made according to the actual requirements of customers' products. When purchase, you should consider the dimensions of your product, the maximum load bearing capacity you design, whether your bin is for storage or for turnaround, and whether stacking is required.
We generally customize based on the actual needs of users, design drawings.
Key Features
- Heavy duty 1/2.0 tons load capacity
- Made from Q235 steel, all welded construction with power coating or galvanizing finish
- Easily collapsible for space saving during transport
- Assembled without tools in seconds
- Fixed wall types also available
- Fitted with drop down access gates allowing easy access to the base, even when stacked
- Can be transported by Forklift or Pallet Trolley
- Can be stacked up to 4 high
- Ideal for storage of finished parts and work in progress.
Standard Dimensions
| Length(mm) | Width(mm) | Fold Height(mm) | Load(kg) | Feet Height(mm) | Surface | Entry Type |
| 1200 | 1000 | 130 | 1000 | 100 | Powder Coated/Galvanized | Two-way/ Four-way |
| 1100 | 1100 | 130 | 1000 | 100 | ||
| 1200 | 1200 | 210 | 1500 | 100 | ||
| 1100 | 1000 | 210 | 1500 | 100 |
* Other sizes or custom sizes are available, please contact us for pricing and sizes meeting your exact requirements.
