Stainless Steel Sanitary Tube Pipe Support Pipe Holder
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | JO-PH003 |
|---|
Product Description
J&O FLUID CONTROL CO., LIMITEDReliable J&O® Brand ®
Over 10 years Exporting Experiences
ISO9001,3A, FDA Certification

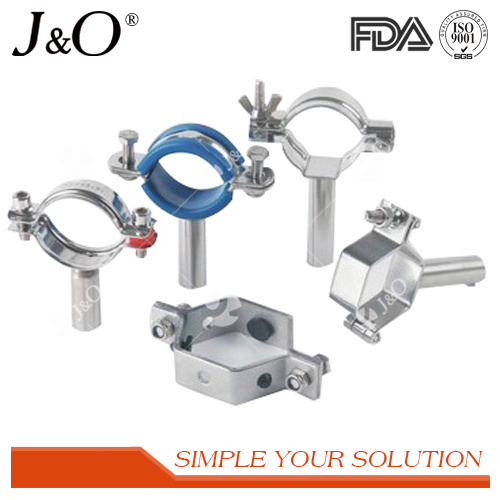

Stainless Steel Sanitary Tube Pipe Support Holder
Sanitary Pipe Holder
Sanitary Pipe Support Holder
Sanitary Stainless Steel Pipe Holder
Application:Suitable for beer, food, wine, beverage, dairy products, dairy products, spices, monosodium glutamate, cosmetics, toothpaste, fine chemicals, low pressure pipeline in pharmaceutical and biological engineering
Technical Parameters
| Standard size | DIN, SMS, ISO, 3A, RJT, DS, IDF, BS, BPE, API, JIS, GB, etc. |
| inner surface of mechanical polishing | Ra≤0.4--0.8μm |
| outer surface of the light | Ra≤0.8μm |
| Connection | Clamp (quick), welding (welding) type, thread type (Union type). |
| Material | Stainless steel 202,201,301,310S, 321,304,304L,316,316L |
| Control diameter | DIN standard (DN10-DN150), 3A/IDF ("-6 1/2" (ISO), the standard diameter of 12.7- with 152.4); |
| Manufacturing process | The use of numerical control machine tool precision manufacturing, precision and internal polishing, to meet the surface precision requirements; feed the use of strict quality inspection system, to ensure product quality. |
| Shape of Surface | Round,Hexagon |
| Material Availabe | Stainless Steel |
| Product packing | Carton or wooden box, anti - shock film packaging |
Dimension of Stainless Steel Sanitary Pipe Fitting Pipe Support
| Size | H(MM) | D(MM) |
| 1" | 61 | 25.4 |
| 1 1/4" | 64 | 31.8 |
| 1 1/2" | 67 | 38.1 |
| 2" | 74 | 50.8 |
| 2 1/2" | 80 | 63.5 |
| 3" | 86 | 76.2 |
| 3 1/2" | 93 | 89 |
| 4" | 100 | 101.6 |
| 4 1/4" | 102 | 108 |
| 4 1/2" | 105 | 114 |
| 5" | 115 | 133 |
| 6" | 128 | 159 |
We can supply:
J&O Valves including Sanitary Butterfly Valve, Sanitary Ball Valve, Mixing Proof Valve, Divert Valve, Check Valve and Diaphragm Valves, as well as Various Tank Accessories: Sampling Valve, Safety Valve, Relief Valve, Manhole Way, Sight Glass, Strainers/Filter, Cleaning Ball, And other Pipe Fittings, (Pipe Unions: SMS, DIN, IDF, RJT,3A; Fittings: Elbow, Tee, Reducer), each products are tested well by our strictly Quality Control System, and we also have excellent service to support you and promote your business.
Lead Time:
For large quantity, as usual, it can be sent out within 20-40 days.
Small parcel will be dispatched by DHL, FEDEX, UPS OR TNT Courier.
Big cargo will be delivered by Air freight or By Sea.
Our Service:
About payment:
Payment methods: L/C, T/ T, Western Union
About samples:
We can provide samples production and service. Usually 2 to 5 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air or by express. Any question about samples, please contact us.
For OEM products:
We will finish the production within 20-40 days after payment has been confirmed.
About delivery and shipping:
We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our mission.
Warranty:
Any question or problem will be respond within 24 hours.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Integrity: All the warranty and guarantee from us will be put into come true
