Home LED Light Products Stainless Steel Wall Shelf Wall Decoration Stainless Steel
Stainless Steel Wall Shelf Wall Decoration Stainless Steel
| Price: | US $ 30/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SS-004 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Thickness: | 2mm-15mm |
| Stainless Steel Thickness: | 0.3-0.5mm |
| Function: | Three Functions |
| Material: | Stainless Steel |
Product Description
Product Name: Stainless steel composite panel , wall decoration stainless steel, thin wall stainless steel pipe, double wall stainless steel vacuum flask, stainless steel wall tiles kitchen, stainless steel wall mount sink, stainless steel wall shelf.

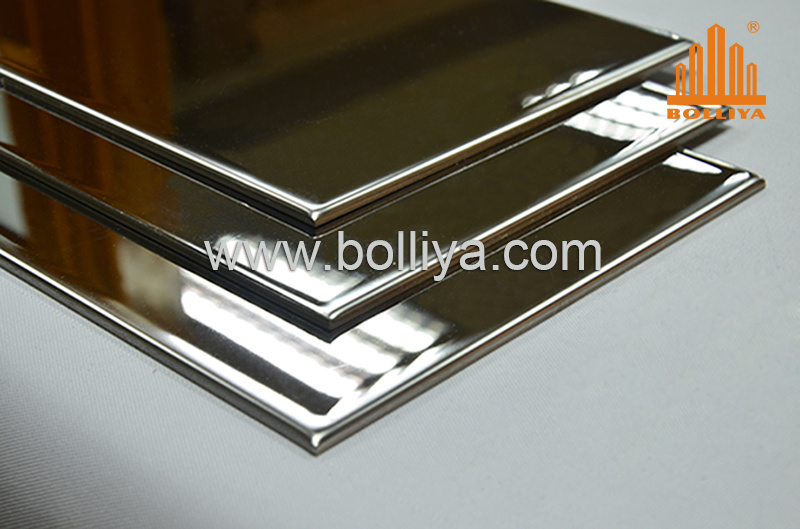

Introduction: Metal Composite Panel is sandwich panel that is composed of 2 metal sheets (aluminum, copper, zinc or stainless steel) bonded to a thermal plastic core (or FR core).
Characteristic of metal composite panels:
Characteristics | Super flatness |
| High panel rigidity | |
| Light weighted | |
| Economic cost | |
| Various colors | |
| Easy fabrication & Installation | |
| Good Anti-UV property | |
| Good impact resistance |
Specification of BOLLIYA Metal Composite Pane
| Material | Stainless Steel |
| Finish Types | Mirror, Brushed, Dull, Embossed |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm upto 15mm |
| Stainless Steel Skin Thickness | 0.3mm ,0.4mm, 0.5mm |
| Grade of stainless steel | 304, 316, 220M |
| Panel Width | 1000mm, 1200mm, 1500mm |
| Panel Length | 2440mm, 4880mm, 5000mm, 5800mm |
| Core | LDPE core, Mineral Filled FR core |
BOLLIYA factory at a glance:
Year Established | 1997 |
| Production Lines | 1 high-speed coating line (runs at 30meter/minute) 2 ACP lamination line (runs at 6meter/minute) |
| Production Capacity | 8000sq.m of 4mm panel a day (2 containers) |
| Management Systems | ISO9001 / ISO14001 / ISO18001 |
| Product Quality | Complies with CE, ASTM, EN, BS norms |
| Production Range | Aluminum Composite Panel Copper Composite Panel Stainless Steel Composite Panel Titanium-zinc Composite Panel Aluminum Honeycomb Panel Sandwich Panels |
How do we guarantee our product quality?
We have 3 strict quality control procedures to ensure our product quality.
Step 1: We choose top quality raw materials
PVDF paints: PPG and Beckers
Aluminum Coil: Chalco
Copper Coil: Aurubis
Titanium Zinc Coil: Rheinzink
Stainless Steel Coil: NSSC, POSCO, Bao Steel
Step 2: High-tech and high precision coating line and lamination line, strict quality inspection during color coating process, lamination process and packing process
Coating process: Aluminum thickness, color deviation, gloss rate, coating thickness, T-bend, pencil hardness, paint adhesion etc, were fully inspected according to AAMA620 norms.
Lamination process: Peeling Strength, panel thickness, panel width & length, diagonal, panel surface are fully inspected accordingly to ACP industry standard.
Packing and container loading process: Visual quality re-check
Step 3: Third party tests. We cooperate with SGS, TUV, Intertek to conduct quality tests on our product. Below is test results done on our product (done by SGS):
| No | Test item | Test method | Test condition | Result |
| 1 | Coating thickness | ASTM D7091-05 | - | 27.0µm |
| 2 | Gloss | ASTM D523-08 | 60° geometry | 27 |
| 3 | Pencil hardness | ASTM D3363 -05(2011) | Pencil: Mitsubishi® | scratch hardness: 2H (see note 1) |
| 4 | Bend resistance | ASTM D3363 -05(2011) method A | - | No cracking at the minimum mandrel diameter(3mm) |
| 5 | Adhesion | ASTM D7091-05e2 method B | Tape: Permacel 99 Space: 1mm | Classification: 5B (see note 2) |
| 6 | Impact resistance | ASTM D2794 -93(2010) | Diameter of the punch: 12.7mm Impact model: intrusion | Impact failure end point: 1.3kg·m |
| 7 | Abrasion resistance | ASTM D968- 05(2010) method A | Litres of abrasive: 76.0L Coating thickness: 0.99mil | Abrasion resistance: 76.8L/mil |
| 8 | Water resistance | ASTM D870-09 | Immersion, 99ºC,2h | Appearance: No visual change |
| 9 | Dirty resistance | ASTM D2064 -91(2008) | Cheesecloth: 40×40mm 4 intact layers No. 8 rubber stopper lead: 500g condition: 60ºC,1h | Numberical value:10 (see note 3) |
| 10 | Alkali resistance | ASTM D1308- 02(2007) clause 7.2 | 10 drops of 1%(m/m)NaOH Spot test, 16h (see note 4) | Appearance: No visual change |
| 11 | Acid resistance | 10 drops of 1%(m/m)H2SO4 Spot test, 16h (see note 4) | Appearance: No visual change | |
| 12 | Oil resistance | Edible oil | Appearance: No visual change | |
| 13 | Solvent resistance | ASTM D5402 -06(2011) method A | Solvent: MEK Rub rate: 1cycle/s Number of double rubs:25cycles (see note 4) | Appearance: No visual change |
| 14 | Color retention | AAMA 2605-2005 7.1 | Take a random point on the sample as color standard | E*ab=0.20 (See note 5) |
| 15 | Adhesion reverse impact 1/6" crosshatch | With reference to ASTM D3359-09e2 method B and client's requirement | Diameter pf the punch: 12.7mm impact model: extrusion Space: 1/6inch Tape: Permacel 99 | Classification: 5B (See note 2) |
| 16 | Coefficient of linear thermal expansion | ASTM D696-08 | Test temperature range : Ramp 10ºC/min from -30ºC to 30ºCPurge gas: Nitrogen (N2), Purity 99.995% Flow rate: 50ml/min. Measurement Direction: Thickness | 193.8×10-6µm/m·ºC (see test spectrum) |
| 17 | Density | ASTM D792-08 method B | Absolute alcohol, 23±0.5ºC | 1.449g/cm3 |
| 18 | Tensile strength | ASTM D638-10 | Specimen: Type I specimen thickness: 3.95mm Testing speed; 50mm/min | 61.6MPa |
| 19 | Flexural strength | ASTM D790-10 Procedure A and client's requirement | Specimen: 128×13.17×3.96mm Testing speed: 1.7mm/min Span: 64mm | 128MPa |
| 20 | Flexural modulus | 11720MPa | ||
| 21 | Sheer strength | ASTM D732-10 | Specimen thickness: 3.94mm Punch diameter: 25.0mm Separation speed: 1.3mm/min | 34.2MPa |
| 22 | Shear resistance | 10594N | ||
| 23 | 180° Peel strength | ASTM D903-98(2010) | Specimen width: 25mm Testing speed: 152.4mm/min | 0.95kg/mm |
| 24 | Peel torque | With reference to ASTM D1781-98(2004) and client's requirement | Condition: Dip in 100ºC boilding water, 20min→ 23±2ºC, 50±5%RH, 24h sSpecimen width: 25.0mm Testing speed: 25mm/min | 14.6kg/mm |
| 25 | Heat deflection temperature | With reference to ASTM D648-07 Method B and client's requirement | Specimen width: 13.52mm Specimen depth:4.05mm Rate of temperature: 120ºC/h Load: 1.82MPA | 97.3ºC(see note 6) |
Packing and Loading:
Packing Method | Loading Quantity for 3mm | Loading Quantity for 4mm |
| Wooden Pallet | 1500pcs | 1100pcs |
| In Bulk (nude packing) | 2000pcs | 1400pcs |
Typical Project List:
Product | Name | Quantity |
| Aluminum | Beijing National Conventional Center | 100,000 m2 |
| Linghai Pearl Building | 8,000m2 | |
| Melbourne Airport | 20,000m2 | |
| Costa Rica Liberia Airport | 10,000m2 | |
| Malaysia Lingbang Plaza | 30,000m2 | |
| Guangzhou Asian Steel Centre | 3,000m2 | |
| Copper | 626 1st Avenue Manhattan | 35,000m2 |
| Tongling Museum | 2,000m2 | |
| AHQ Army Complex Bangladesh | 1,500m2 | |
| Guangxi Tianlong Apartment | 3,000m2 | |
| Elegant Residential Apartment France | 1,000m2 | |
| Guangzhou Dayi Villa | 1,000m2 | |
| Stainless Steel | Malaysia Exim Bank | 3,000m2 |
| Palacio de Hierro de Jalisco, Mexico | 5,000m2 | |
| R&F Building Guangzhou | 10,000m2 | |
| VTB Bank Vietnam | 35,000m2 |
Ever since 1997, Guangdong Bolliya Metal Building Materials Co., Ltd started to laminate aluminum composite panel. After 15 years, We become one laminator of different kinds of metal composite panel, including aluminum, stainless steel, copper, zinc etc. Our innovative way to laminate metals with polyethylene or FR core accelerates the productivity as well as guarantees the integrity of composite structure. By working with our suppliers world widely, fluorocarbon resin from PPG as well as Beckers; Titanium zink alloy from Rheinzink; Aluminum coils from Chalco; Stainless Steel Coils from NSSC, those perfection under our ISO 9001 and 14001 management system make Bolliya composite panel the wise's choice.
Bolliya product line is categorized into aluminum composite panel (Bolliya), zinc composite panel(Bollizinc), copper composite panel (Bollicopper), and stainless steel composite panel(Bollisteel). On top of aluminum composite panel, our paint supplier work with us to create solid color, metallic color, nanometer coating, spectra coating etc. Bolliya also emphasized on Fire Retardant sense, and Bolliya FR serious and high-FR serious leaves more room for application of Bolliya panels.
Client centered with great sense of service-oriented is our motto. This motto not only shows in aspects our purchasing, manufacturing, delivery, but also realized with quicker delivery, small MOQ, guarantee on batch to batch coherence. Bolliya's manufacture approach is to maximize automatic to avoid flaw, while our service approach to relieve the commercial burden of our client.
Bolliya product features in classical and modern trend. Bolliya's running spirit lies on client-centered and honest. Bolliya's passionate and intelligent staff hope to work with friend from all over the world to create a brilliant image commercial environment, honest and effective business environment and eco-friendly natural environment.
.
Bolliya product line is categorized into aluminum composite panel (Bolliya), zinc composite panel(Bollizinc), copper composite panel (Bollicopper), and stainless steel composite panel(Bollisteel). On top of aluminum composite panel, our paint supplier work with us to create solid color, metallic color, nanometer coating, spectra coating etc. Bolliya also emphasized on Fire Retardant sense, and Bolliya FR serious and high-FR serious leaves more room for application of Bolliya panels.
Client centered with great sense of service-oriented is our motto. This motto not only shows in aspects our purchasing, manufacturing, delivery, but also realized with quicker delivery, small MOQ, guarantee on batch to batch coherence. Bolliya's manufacture approach is to maximize automatic to avoid flaw, while our service approach to relieve the commercial burden of our client.
Bolliya product features in classical and modern trend. Bolliya's running spirit lies on client-centered and honest. Bolliya's passionate and intelligent staff hope to work with friend from all over the world to create a brilliant image commercial environment, honest and effective business environment and eco-friendly natural environment.
.
