Home LED Light Products Steel Storage Roller Flow Self Slide Gravity Rack

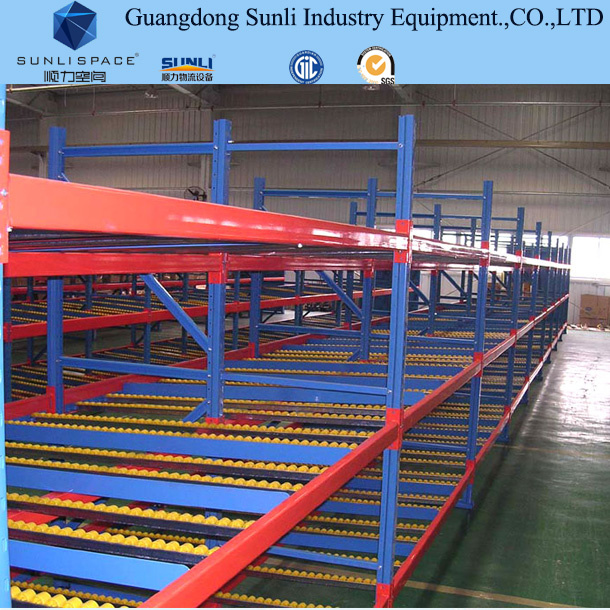

Steel Storage Roller Flow Self Slide Gravity Rack
| Price: | US $ 106-116/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 30/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SL-GR29 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | Steel Storage Roller Flow Self Slide Gravity Rack |
| Storage: | First in.First out |
| Depth (Column): | 600-3000mm |
| Height (Column): | 1500-3000mm |
| Load: | up to 500kg |
| Roller: | Aluminum/Metal/Metal Reinforced |
| Colour: | Blue+Orange |
| Custom Size: | Can Be Made According to Your Needs |
| Surface Treatment: | Powder Coating |
| Certifications: | CE/SGS/As4084/ISO9001 |
| Usage: | Supermarket |
| Material: | Steel |
| Type: | Gravity Rack |
Product Description
Steel Storage Roller Flow Self Slide Gravity RackPrinciple
First In First Out
Material flow relying on their own weights.
Main Design
Inclined roller tracks are installed with certain spacing according to your cartons or bins.
It is suitable for cartons and bins of any size.
Plastic fasteners are used for convenient boltless assembling/disassembling on the beams.
The rack system can be used together with electronic tags systems.
Advantages
Space saving.
Efficiency improving.
Utility area
Logistic centers. Picking area. Production station.
Roller track choices
Aluminum, small sheet metal, sheet metal reinforced
Accessories
We could also supply plastic cartons and bins, if customer needed.
Features:
1) Designed with rollers, inclined properly
2) The goods would flow to down according to their own weight
3) Goods can be reserved quickly and fast
4) Goods circulate in a best state, being first in and first out
The shelves are with storage and transport of goods dual function - Dynamic warehousing. Goods inclination by fluent output from the inlet end to the outlet end of the shelf, while the later phase of goods successively get to the position of storage, while achieving FIFO (FIFO).
Fluent shelves can be used in logistics centers and warehouses picking area, can also be used in the production station next to the storage of products, parts, goods with liquidity. Compared with ordinary laminate shelves, not just to provide a space for storage, but more space savings, improve efficiency, It is the best choice of logistics center, and can be used with electronic tags systems.
Specifications:
Column pieces: Depth 600-3000mm height 1500-3000mm
Beam length: According to the size of crates can be, 600-2500mm
Aluminum, small sheet metal, sheet metal reinforced fluent could be choosen. Bolted fasteners for easy loading and unloading.
1. Color: Blue, orange
2. Powder Coating
3. High capacity: Up to 1000kg
4. Easy to install
5. Please offer following rack info for a clear price:
1. Size of storage Gravity Racking (H*W*L)
2. Total or each level of loading capacity
3. Drawing (if available)
4. Size of your warehouse(If available)
5. The fork direction(if load pallet)
6. Levels you would like
7, Max weight of each cargo; Size of each cargo, Moving way
Horizontal bracing
Diagonal bracing
Support bar,
Mesh, wood, steel shelf
Connector
Side cladding
Safe pins
Screw
Protector
Soleplate
Delivery time
Usually 25 days after deposit, Large quantity can be discussed
| Item | Floor area use | Load capacity | Max Height | store |
| Pallet rack/heavy shelf | 34% | up to 5T | 11m | without limited |
| Shelf rack | 40& | Up to 500kg | Max 3m | Manual picking |
| Drive in rack | 51% | Max 2T | 10m | First in, last out |
| Radio shuttle rack | 70% | According to shuttle machine | 10m | first in,last out |
| Gravity | 60% | Max 1T | 10m | First in, first out |
| Platform | 80% | Max 2T /sq.Mt | 2.5mt per floor | without limited |
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations"
