Home LED Light Products Steel Warehouse Medium Shelf

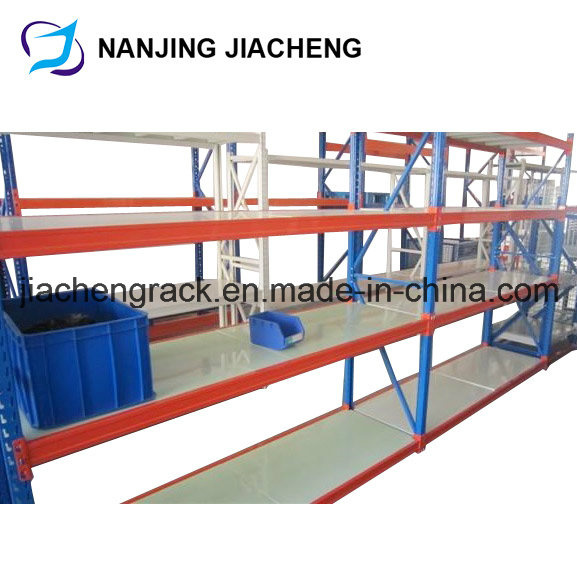

Steel Warehouse Medium Shelf
| Price: | US $ 42/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Material: | Steel |
|---|---|
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | 1.5-10m |
| Weight: | 200-3000kg/Level |
Product Description
This kind of rack is also called Long Span Shelving, medium rack, tire rack or others. It is constructively similar to Light Pallet Rack, but designed to store non-palletized goods. This is an intermediate application between Light and Heavy Duty applications. It is designed for loading/unloading goods manually without mechanical equipment. Stored goods can be from smallest components to large and awkwardly shaped items.Features and the Advantage:
A. It is used widely and suitable for automotive components, supermarkets, libraries, hospitals and pharmacies etc.
B. The systems is available from single-tier for simple requirement to multi-tier applications (up to 5 tiers), utilizing full warehouse height.
C. High bay Long span racks are also available (above 3 meters high) with man-up stacker crane or order picking trucks.
D. Pick & Deposit is done manually.
E. The upright is perforated at a pitch of 50 mm allowing boltless mounting of the beams. The tapered shape of the hook guarantees a stable and rigid design, even without back bracing.
F. "First in first out" of goods are realized . It is convenient to access and suitable for such places as the two sides of the assembly lines, distribution centers, etc.
G. The loading capacity of each layer is 1000kg at the most.
The Specification and Parameters:
| Model | JCMR-1 | JCMR-2 | JCMR-3 |
| Loading capacity | 100-300kgs | 300-500kgs | 500-1000kgs |
| Popular Size (mm) | L1800*W600*H2000 | L1800*W600*H2000 | L1800*W600*H2000 |
| L2000*W600*H2000 | L2000*W600*H2000 | L2000*W800*H3000 | |
| L2000*W600*H2500 | L2000*W800*H2500 | L2200*W1000*H3000 | |
| Post Spec: | 55*47*1.5mm & 2.0mm | ||
| Beam Spec: | 50*30*1.5mm / 50*40*1.5mm / 60*40*1.5mm / 80*50*1.5mm | ||
| Remarks: | 1.Surface treatment: powder coating or galvanized | ||
| 2.Each lever height adjustable freely with pitch 50mm | |||
| 3. Accessories: We provide Horizontal & diagonal braces connecting Upright Frames for stronger structure, row spacer, upright footplates, safety locking pins, Bolts & nuts, anchors and screw, U-shape, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, and all necessary components. | |||
Packing & Delivery:
A. Packing: Standard export packages with carton box and film.
B. Lead Time: 7-25 days
Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many layers do you need?

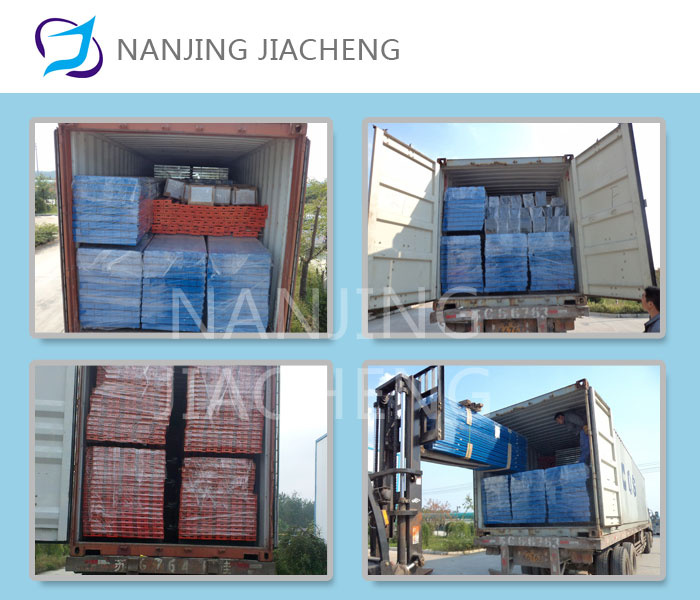

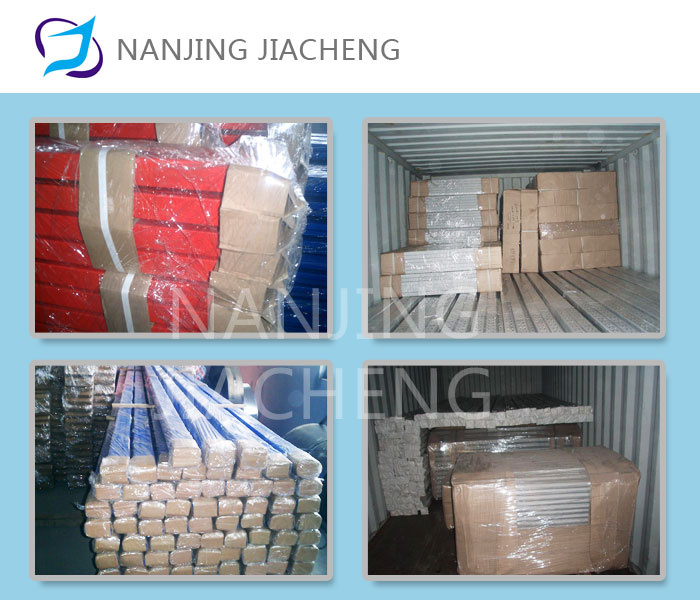

Package and Performance Pictures Showing:
Please feel free to contact us for more information:
| Company Name: | NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING CO.,LTD |
| Website: | www.jiachengrack.com |
| Contact Person: | Bryan Wu (Export Director) |
| Contact Way: | MP: +86-13951807639 |
