Steel Warehouse Middle Shelving
| Price: | US $ 42/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Material: | Steel |
|---|---|
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | 1.5-10m |
| Weight: | 200-3000kg/Level |
Product Description

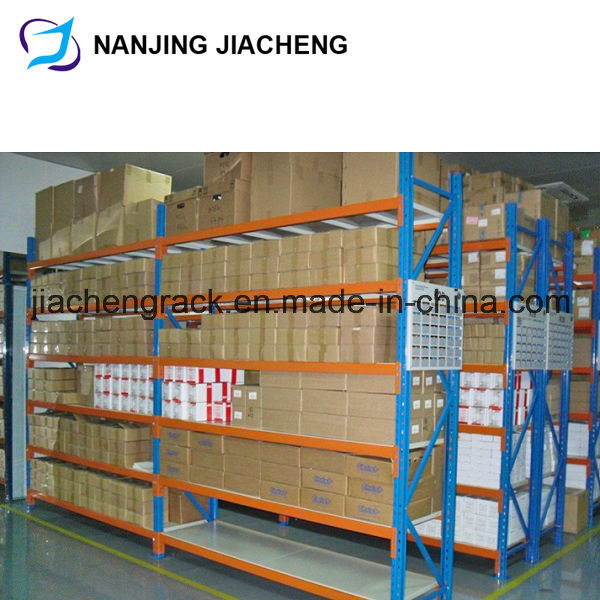

This kind of rack is also called Long Span Shelving, medium rack, tire rack or others. It is constructively similar to Light Pallet Rack, but designed to store non-palletized goods. This is an intermediate application between Light and Heavy Duty applications. It is designed for loading/unloading goods manually without mechanical equipment. Stored goods can be from smallest components to large and awkwardly shaped items.Features and the Advantage:
A. It is used widely and suitable for automotive components, supermarkets, libraries, hospitals and pharmacies etc.
B. The systems is available from single-tier for simple requirement to multi-tier applications (up to 5 tiers), utilizing full warehouse height.
C. High bay Long span racks are also available (above 3 meters high) with man-up stacker crane or order picking trucks.
D. Pick & Deposit is done manually.
E. The upright is perforated at a pitch of 50 mm allowing boltless mounting of the beams. The tapered shape of the hook guarantees a stable and rigid design, even without back bracing.
F. "First in first out" of goods are realized . It is convenient to access and suitable for such places as the two sides of the assembly lines, distribution centers, etc.
G. The loading capacity of each layer is 1000kg at the most.
The Specification and Parameters:
| Model | JCMR-1 | JCMR-2 | JCMR-3 |
| Loading capacity | 100-300kgs | 300-500kgs | 500-1000kgs |
| Popular Size (mm) | L1800*W600*H2000 | L1800*W600*H2000 | L1800*W600*H2000 |
| L2000*W600*H2000 | L2000*W600*H2000 | L2000*W800*H3000 | |
| L2000*W600*H2500 | L2000*W800*H2500 | L2200*W1000*H3000 | |
| Post Spec: | 55*47*1.5mm & 2.0mm | ||
| Beam Spec: | 50*30*1.5mm / 50*40*1.5mm / 60*40*1.5mm / 80*50*1.5mm | ||
| Remarks: | 1.Surface treatment: powder coating or galvanized | ||
| 2.Each lever height adjustable freely with pitch 50mm | |||
| 3. Accessories: We provide Horizontal & diagonal braces connecting Upright Frames for stronger structure, row spacer, upright footplates, safety locking pins, Bolts & nuts, anchors and screw, U-shape, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, and all necessary components. | |||
Packing & Delivery:
A. Packing: Standard export packages with carton box and film.
B. Lead Time: 7-25 days
Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many layers do you need?
Package and Performance Pictures Showing:
Please feel free to contact us for more information:
| Company Name: | NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING CO.,LTD |
| Website: | www.jiachengrack.com |
| Contact Person: | Bryan Wu (Export Director) |
| Contact Way: | MP: +86-13951807639 |
NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING Co., Ltd found in the year 2003, is the professional manufacturer in China and is engaged in the design and manufacturing storage and logistics products and equipments. The factory covers 20 acres, and the workshop is 6000 square meters. There are over 100 employees including professional design team, so that we can provide the service of professional design, production process, advanced technology and racking manufacturing and finishing. We can design and produce all types of storage racking (light duty rack, medium duty rack, heavy duty rack, mezzanine, cantilever rack, and drive-in rack), wire container, mesh box, roll container, steel cage, wire decking, wire fence, steel pallet and etc. Meanwhile, we have the team for assembling and after sales service, so that ensure the company with the full system of design, plan, production management, inspection, and after sales service.
We continuously make the new product developments, and increases the production management system level as per the ISO9001 International Quality System standard, and has qualified the CE and EPAL certificate. We are always trying our best to provide the high quality and perfect products and service. Our products have been used in many fields of medicine, food, chemical industry, construction material, electronics, car, machinery, coal power, post and railway etc. We focus not only the China domestic market, but also the oversea markets. Now the products have been exported to USA, Japan, Russia, Canada, Australia, India, Brasil, EURO UNION, Middle East COUNTRIES and etc.
