Steel Warehouse Storage Metal Double Push Back Shelving with Tunel

Prod Model:	(EBILMETAL-PBR)
Colors:	Any
Grade Of Steel Raw Material:	Q235, Ss400
Finishing:	Powder Coated
Storage:	Filo
Level:	2-7
Material:	Steel
Structure:	Rack
Mobility:	Mobile
Closed:	Open
Development:	New Type
Serviceability:	for Special Purpose
Height:	50, 75mm by Pitch
Weight:	1500-4500kgs/Level

Product Description

High Quality Steel Push Back Shelf (EBILMETAL-PBR)

1)- First-in-last-out operation process
2)-Can be designed for many levels
3)-Specially for palletized goods
4)-Trolley has four feet with rollers moving on its support beam
5)- Has advantages of both drive-in rack and live pallet rack
6)- Each level has 4 to 5 layers of trolley, each layer will be withstood by its former layer's pallet

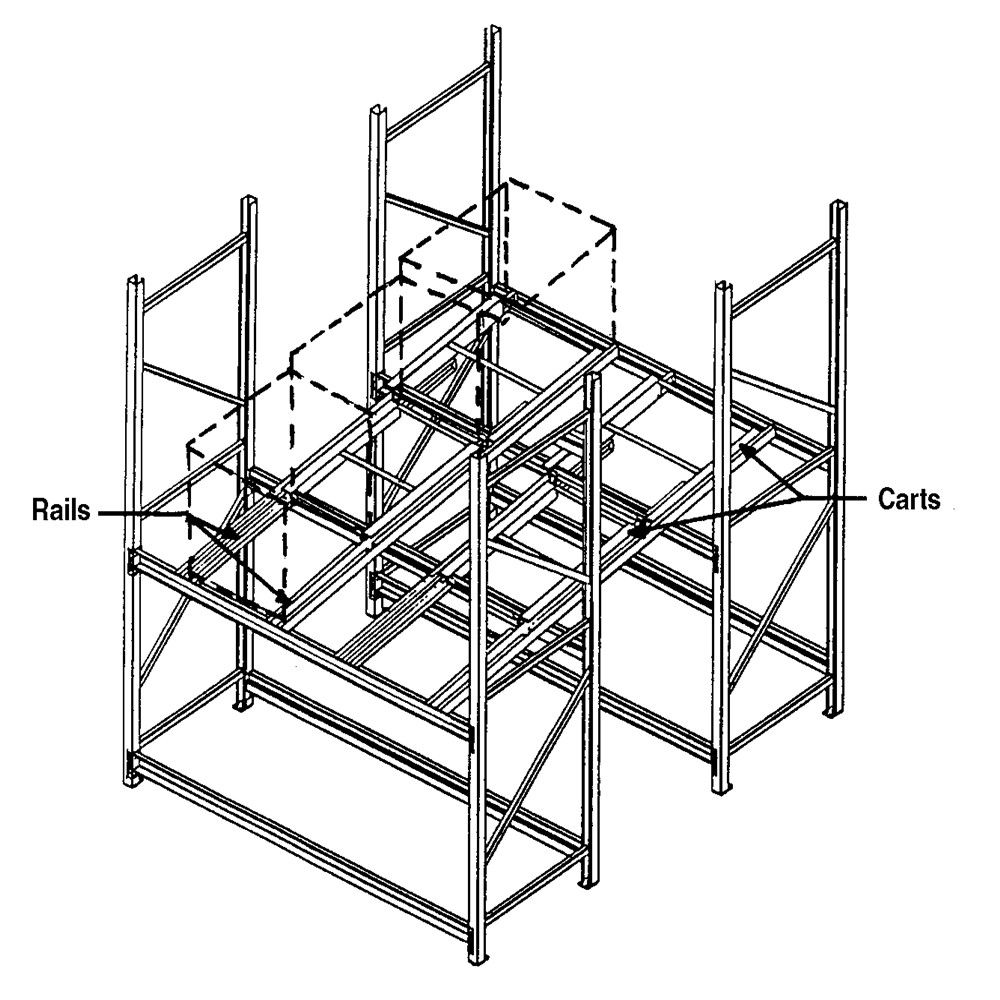

Push Back rack systems are available in structural or roll-formed frames. The systems work by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position. When unloading, the front pallet is removed and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management. Operators can store product from 2-5 pallets deep, with front-only loading from a single aisle. Push Back offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below. Multiple pick facings for a variety of SKUs can be stored and retrieved without disturbing other product above or below in a single-lane or double-lane format.




Advantage:
Low MOQ: Meeting actual small requests;
OEM Acceptable: We can produce you design;
Good service: We treat clients as friend;
Good quality: We have strict quality control system. Good reputation in the market;
Fast delivery: Scientific production arrangement to ensure the fast delivery.

1.	Drawing (if available)
2.	Size of your warehouse
3.	Size of racking (H*W*L)
4.	How levels of the racking?
5.	Loading capacity of each level?
6.	(RAL) Color you want



If you don't have the drawing and idea of the rack, we could provide you the CAD design for your warehouse to your requirements.
