Storage Shelf System Pallet Warehouse Rack

Storage Shelf System Pallet Warehouse Rack
Price: US $ 86-90/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T
Prod Model: SL-009
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fast Delivery: Within 10 Days
Certifications: Ce/SGS/As4084/ISO9001
Item: Storage Shelfs and Racks
Storing: Warehouse Rack
Material: Steel and Reinforced Concrete
Structure: Rack
Mobility: Adjustable
Closed: Closed
Development: New Type
Serviceability: Common Use
Height: 0-12m
Weight: 1000-5000kg/Layer

Product Description

Storage Shelf System Pallet Warehouse Rack



Techincal Data for Rack System
Style Pallet storage warehouse rack
Selection Single Row, back-to-back Rows and multiple Rows


Dimension of
Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220
Depth: 1000MM/900MM/1020MM
Width: 2700MM/2300MM/2500MM/2432MM
Height:  pitch is adjusted by increments of 75mm
Customized Pallet: other special size( you can contact us directly)

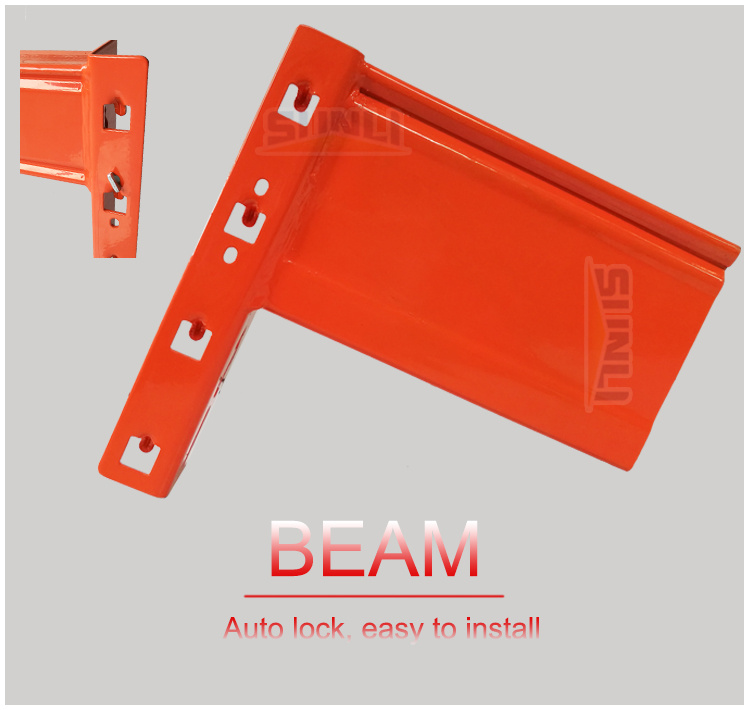

   Beam Range  Height: 80~160mm;  Width: 45mm/50mm;  Thickness: 1.5~2.5mm

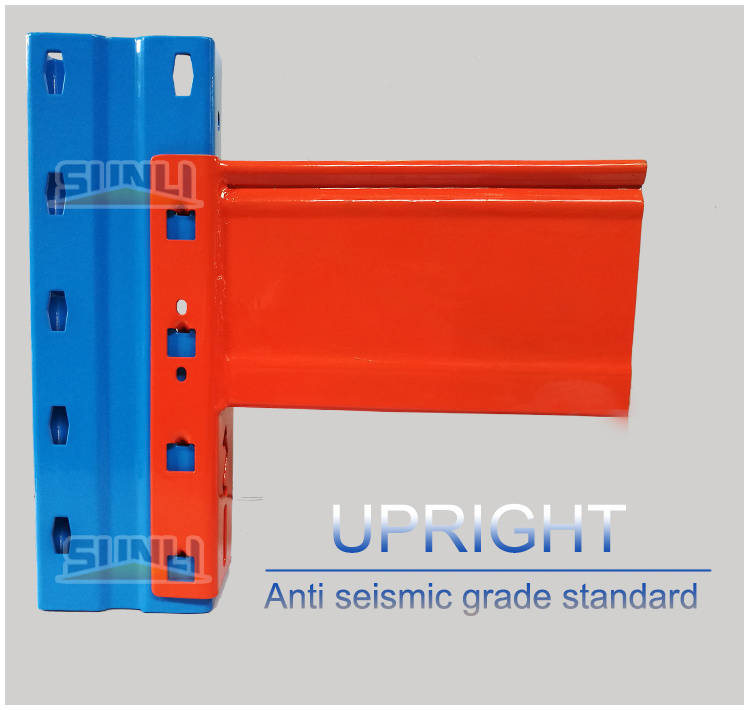

   Upright Range 80*60; 88*68; 90*60; 100*68; 120*68mm, Thickness: 1.5~3.0mm
   Colour

 Standard:
Customized:  MOQ( per 20FT container)
(www.RALCOLOUR.com)
Weight Capacity5000KG per level max ; 1500KG per pallet max
PackageFull container:  Nude Package; manual handling
Less than container: steel pallets + steel straps + corrugated paper
Export AreaSouth America; Middle America; South(South East) Asia; Africa; Middle East
MOQ2 units( 1 start unit+1 extension unit)
Lead time1, 18days for one container
2, 25~27days for less than one container

4. Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) The RAL color you want

Advanced Technology in storage
Easy to assemble and adjust
With wholesale feature










ProductsHeavy Duty Pallet  RackingMedium/Light  Duty Racking
Loading Capacity1000-5000KG/layer100-1000KG/layer
SpecificationMain Racking:
       L2700*D1200*H4800mm*4layers
       (Designed by different demands)
Beam:L1800~2500mm
Layer board: 1.5~2.5mm
Customized sizes and colours are welcomed


Main Racking:
         L1500*D1200*H3000mm*4layers
        (Designed by different demands)
Beam: L1200~1800mm
Layer board: 1.0~1.5mm
Layers: steel panel/net or wood veneer
Customized sizes and colours are welcomed

The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
