Storage Warehouse Carton Flow Slide Gravity Rack
| Price: | US $ 110-120/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 30/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | SL-GR07 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: | Within 10 Days |
| Storage: | First in.First out |
| Depth (Column): | 600-3000mm |
| Height (Column): | 1500-3000mm |
| Load: | up to 500kg |
| Roller: | Aluminum/Metal/Metal Reinforced |
| Colour: | Blue+Orange |
| Custom Size: | Can Be Made According to Your Needs |
| Surface Treatment: | Powder Coating |
| Certifications: | CE/SGS/As4084/ISO9001 |
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Combined |
| Height: | 0-5m |
| Weight: | 150-500kg |
| Closed: | Semi-closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Type: | Gravity Rack |
Product Description
Storage Warehouse Carton Flow Slide Gravity RackProduct feeds to Picking Position by Gravity Flow
Carton flow rack system(also called gravity flow rack) for every size warehouse and every price range are gravity driven and perfect for applications with numerous SKUs. Inventory rotation is ensured with First-in/first-out presentation basis. Separating the loading aisle from the retrieval aisle allows pickers to operation more efficiency. Carton flow rack user sloped shelves to improve visibility and order accuracy and is perfect answer for split case or piece picking.
Carton flow rack can be integrated with conveyors and other warehouse storage solutions to create functional pick modules and picking efficiency.
Strength by Sunli
. ABS runners plus aluminium tracking rails

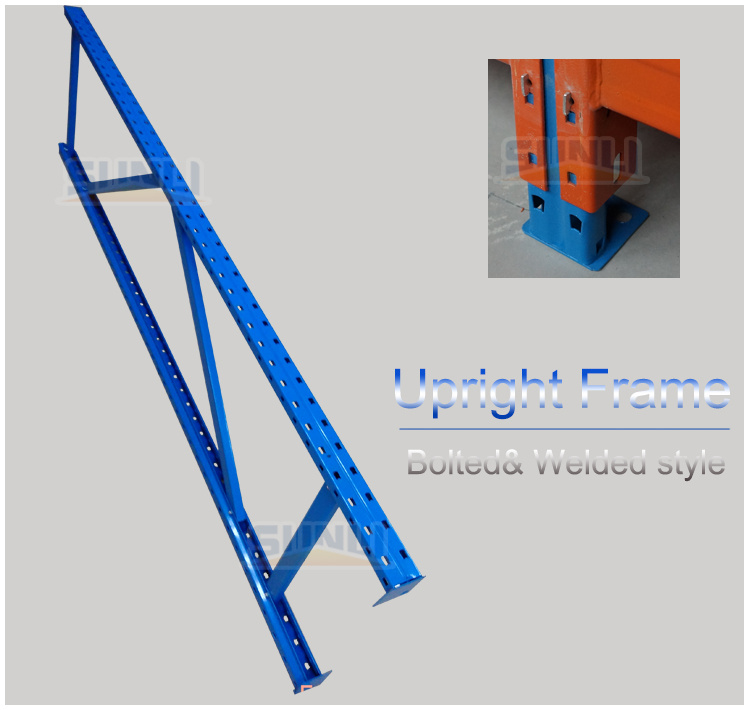

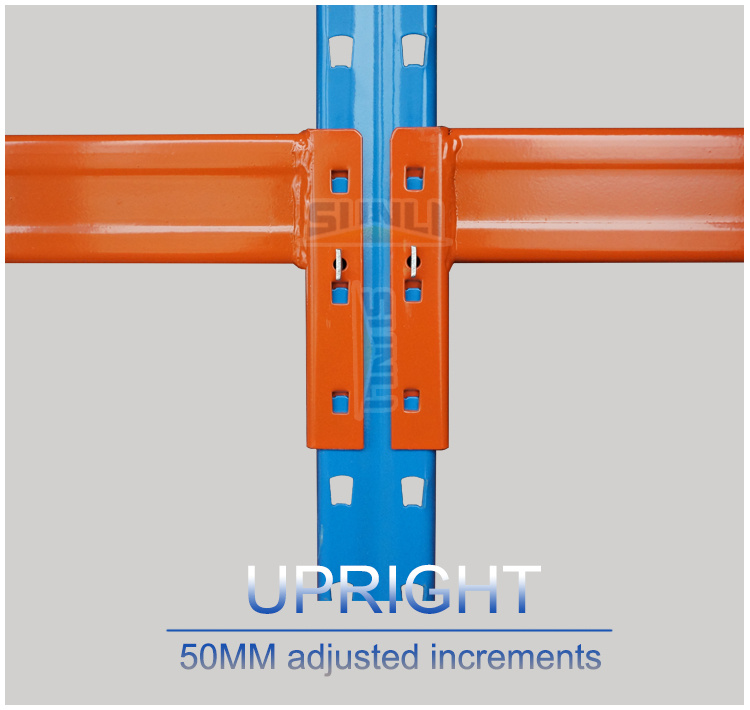

. 60*45 or 80*60 column plus 60*40 or 80*40 beams
.We can provide plastic box to match warehouse storage
. Rigid hardness of steel, to provide at least 5 years warranty against manufacture's defects
. We do customized purchase for your business
Technical Descriptions carton flow rack system
| Style | Carton flow rack system, gravity sliding runner |
| Selection | Single row, multiple rows |
| Material | Q235B Steel( powder coated finish) |
| Dimension of rack | 1, Depends on carton/box sizes |
| Mateiral section 100KG~500KG) | 1,Beam: 80*45mm/90*45mm 2, uprights: 80*60mm 3, Thickness: Beam: 1.5~1.8mm; upright:1.5mm~1.8mm |
| Colour | RAL2004+RAL5015 ( www.ralcolour.com) |
| Weight capacity | 100KG~500KG per level |

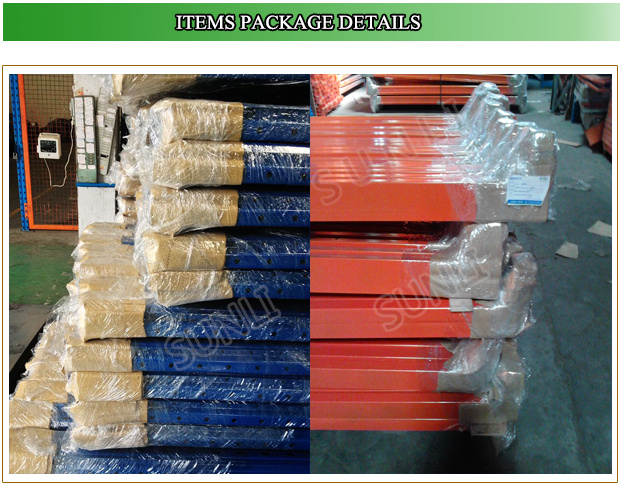

| Package | 1, Less than one container: steel pallets/steel straps/plastic film 2,full container: plastic film/steel pallets for items |
| Services | CAD drawings for rack layout; CAD drawings for installation |

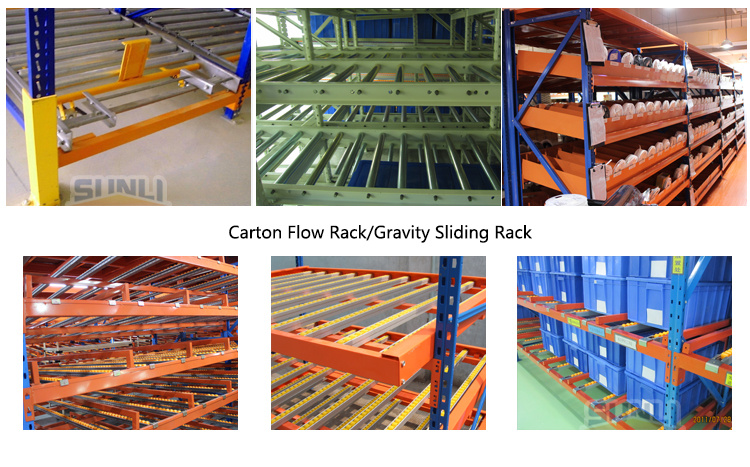

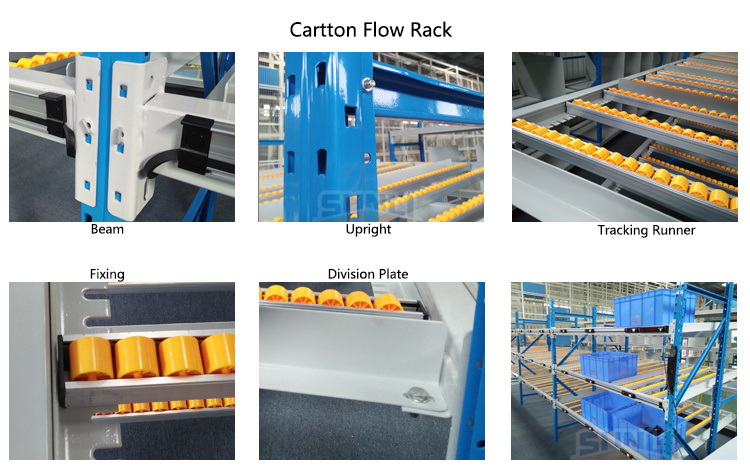

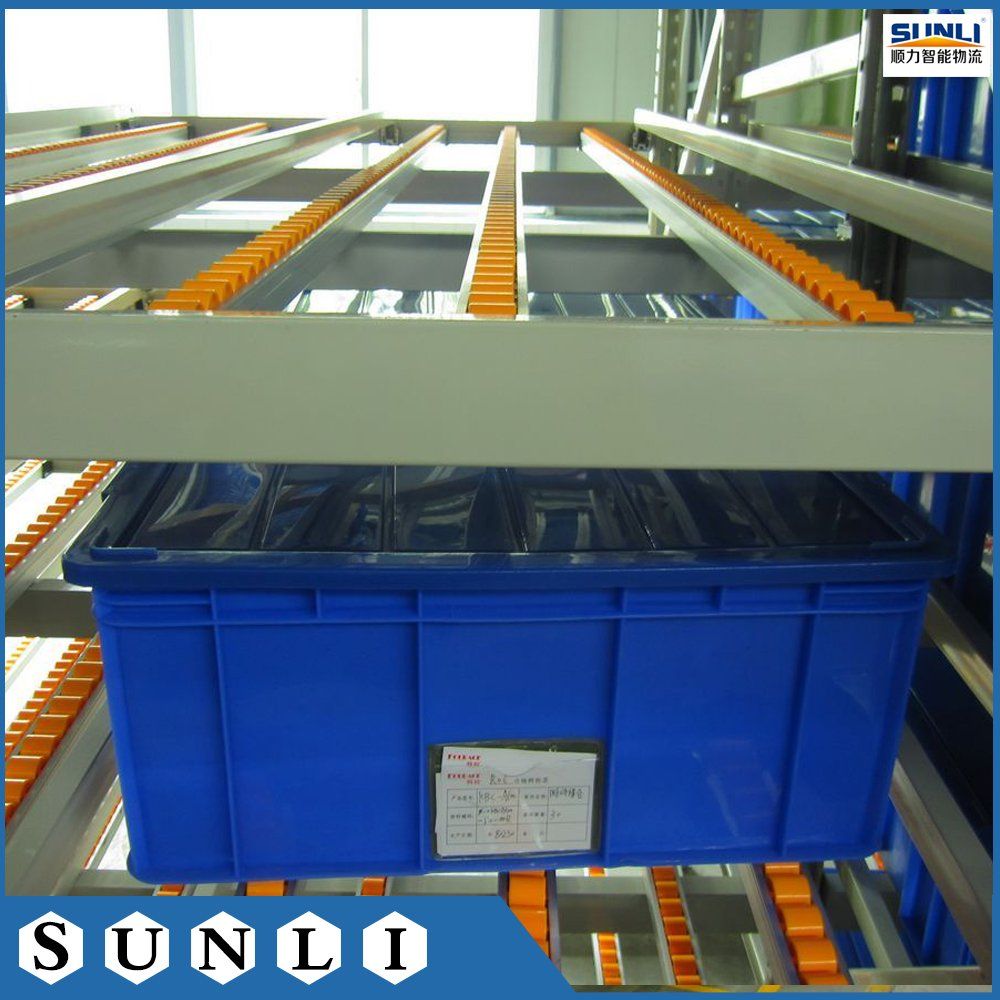

Detailed image for rack with gravity slide
ADVANTAGES for carton flow or gravity flow rack:
+ Very high SKU slot facing
+ Can support both full case, and split case picking
+ Relatively inexpensive
+ Very flexible
+ Typical Applications:
+ Split case picking
+ Pick modules
+ Battery storage
Detailed despcription of gravity flow rack system
Please inform us following information to get prompt offer for gravity flow rack for carton storage
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for carton flow rack with gravity slide?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.
As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.
What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.
Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,
New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.
Sunli motto "Value beyond expectations
