Prod Model: |
RPM-A16 - RPM-A75 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Form: |
Magnet Plate+Countersunk Hole+ Coating |
Magnet Force: |
5~160 |
Delivery: |
15-29 Days |
Definition: |
Super Strong Pot Magnet |
Details: |
Strong Magnet Encased in Iron |
Coating: |
Nickel |
Grade: |
N35 |
Application: |
Pot Magnet |
Shape: |
Pot |
Product Description

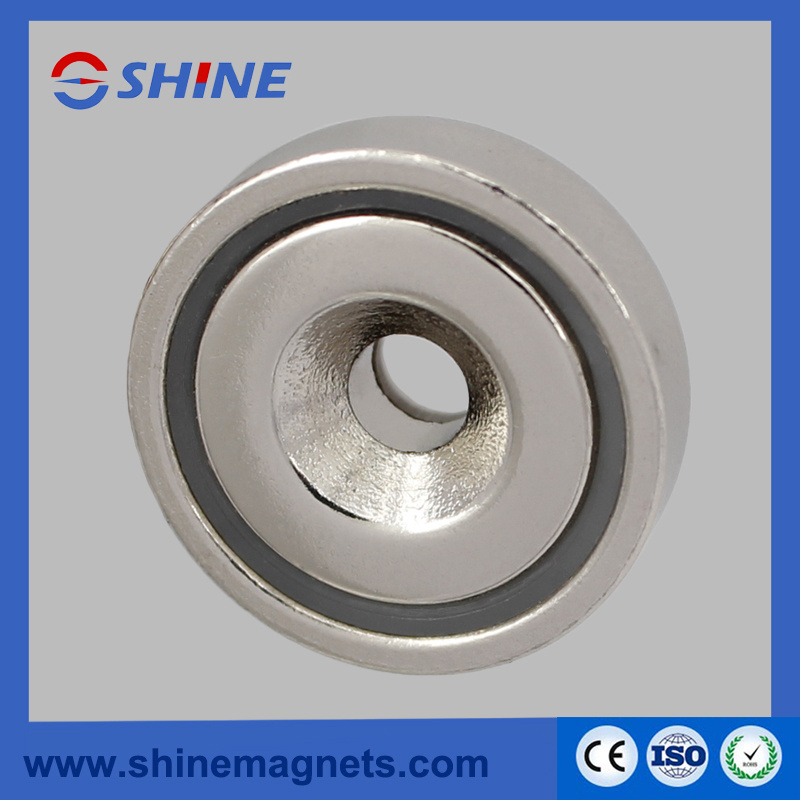

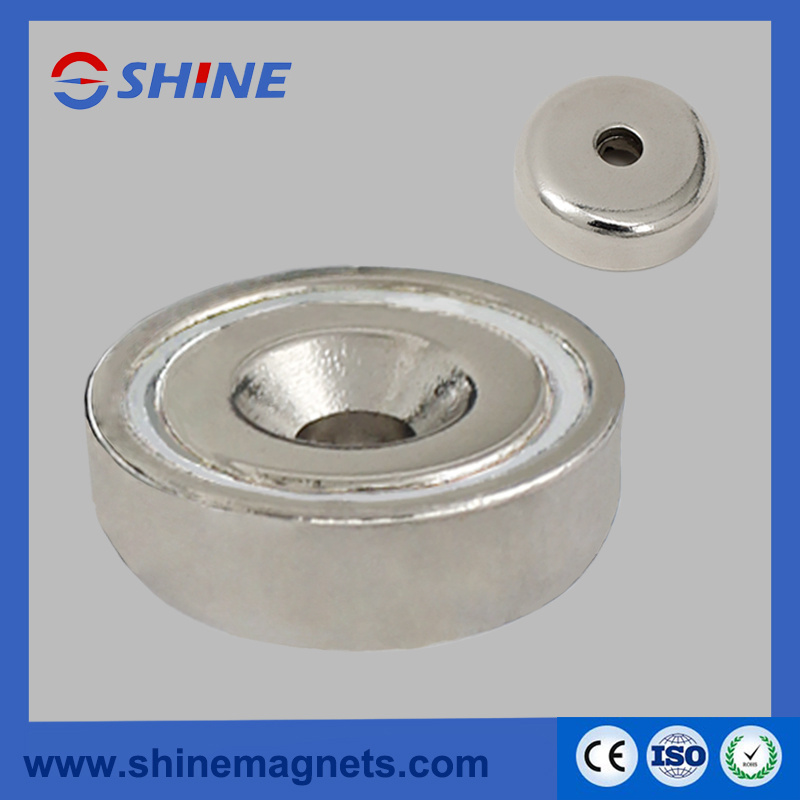

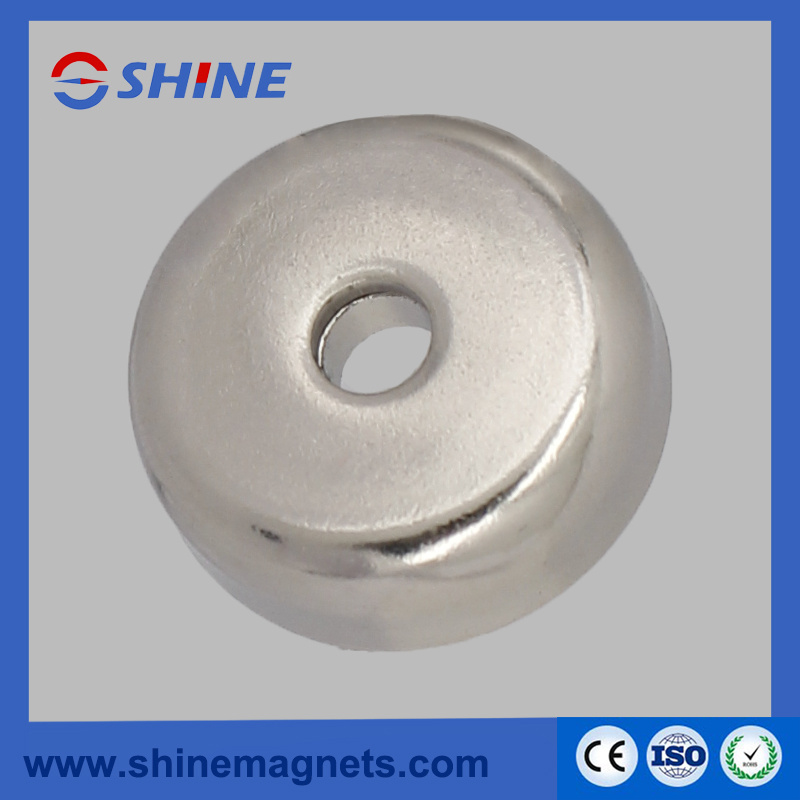

Neodymium cup magnet ( Countersunk hole type) is extremly strong when placed on steel. Neodymium cup magnets are ideal for fixing tools. It is right to say neodymium cup magnet generate is much strongger than smco magnet and ferrite magnet. But a neodymium cup magnet is even strongger than barely magnets which the magnetic field is dispersive and unevenly. Advantages1. All NdFeB magnets used are made by our own magnet factory. We can well guarantee the quality of magnets
2. Standard producing process and strict quality checking
3. Our know-how experts in magnetics could give you best solution on magnets to make sure the strong holding force of the concrete magnet
4. Competitive price,stable quality, in time reponse
5. Fast delivery. We have thousands different models in stock, thus could deliver pot magnets in the second day after receipt of payment
Detailed specifications:1.Size: As per the table. Customer tailored design are available.
2.Material: NdFeB magnets + Steel cup
3.Coating: NiCuNi or as per customers requirement.
4.Glue: Loctite. The gluing of magnet and steel cup could be well guaranteed.
Model | D(mm) | D1(mm) | D2(mm) | H(mm) | Suck Strengh (kg) | Net Weight (g) |
RPM-A16 | 16 | 3.5 | 7 | 5 | 4 | 6 |
RPM-A20 | 20 | 4.5 | 9 | 7 | 6 | 12 |
RPM-A25 | 25 | 4.5 | 10 | 8 | 14 | 23 |
RPM-A32 | 32 | 5.5 | 10 | 8 | 23 | 36 |
RPMA36 | 36 | 6.5 | 12 | 9 | 29 | 50 |
RPM-A42 | 42 | 8.5 | 12 | 9 | 32 | 73 |
RPM-A48 | 48 | 8.5 | 16 | 12 | 63 | 114 |
RPM-A60 | 60 | 8.5 | 16 | 15 | 95 | 240 |
RPM-A75 | 75 | 10.5 | 19 | 18 | 155 | 471 |
Package & Shipping
1. Plastic gasket will be put between strong and big magnets, easy for seperation.
2. white box for numerous of magnets.
3. 8-12 white boxes per carton (size 34x26x20cm),filled with white foam.
4. Each pallet at least 10 cartons ,match shipment standard.
We cooperate with courier company such as DHL, China express, Fedex
for years and have got favorable price agreement. For order below 45kgs,
we usually suggest customer to choose courier delivery .
Air shippment is suitable for order more than 45kgs and sea shippment
suitable for goods more than 100 kgs. We will offer best solution after
considering detail situation.
Buyer Guide In order to quote suitable and best price to you quickly, please kindly provide
the following information when you send us your enquiry:
1. Magnet dimension, material grade, coating type, magnetism detail, potential
quantity, ect.
2. For special shape and size,drawings are greatly appreciated.
3. Special requirements such as delivery and package.
