Home LED Light Products Supermarket Gondola Shelf with Glass Showcase
Supermarket Gondola Shelf with Glass Showcase
| Price: | US $ 95-225/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | HBE-SR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Ral Customized |
| Design: | Over 20models |
| OEM: | Available |
| Loading Weight: | Customized |
| Material: | Steel |
| Style: | Back Net Style |
| Side Number: | Double Sided |
| Rotary: | Fixed |
| Usage: | Convenient Store |
| Customized: | Customized |
| Weight: | OEM,80kg,100kg,120kg etc Per Shelf |
Product Description
supermarket gondola shelf with glass showcaseHighbright:
1. With nearly ten years international marketing experience.
2. Ten well-educated international sales team offer in-time service with 24 hours.
3. Four professional project engineers offer quotation based on drawings within 24 hours.
4. To be the best one-stop-sourcing retail equipments supplier from China.
5. Let more international chain stores use Chinese retail equipments.
6. We conduct our business with Integrity, Honesty and Fairness.
7. Our Culture: We Sell! We Care!

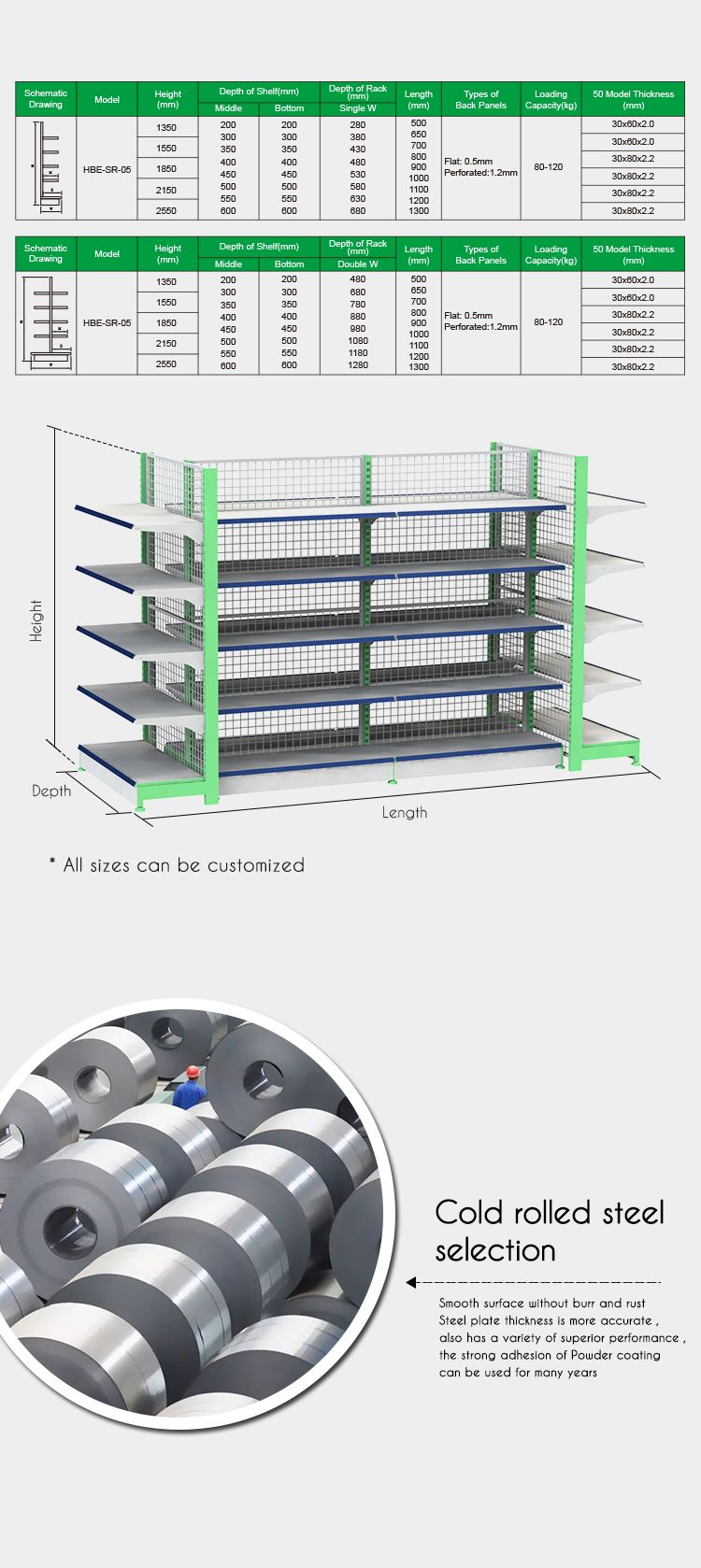

Specification
Model | Supermarket Back board shelf | |||
Post or upright size | 40*80 | 30*60 | ||
Side(oneside or inside | One side | Double side | One side | Double side |
Specification | 1200*550*2000 | 1200*1100*2000 | 1200*450*1800 | 1200*900*1800 |
Thickness of board | 0.6mm | 0.6mm | 0.5mm | 0.5mm |
Thickness of post or upright | 1.8mm | 1.8mm | 1.35mm | 1.35mm |
Thickness of back panel | 0.4mm | 0.4mm | 0.4 mm | 0.4mm |
Capacity(each layer) | 120-150kg | 150-200kg | 100-120kg | 120-150kg |
Quantity of layers | 5 | 5 each side | 5 | 5 each side |
Cubic meter | 0.088 | 0.163 | 0.068 | 0.129 |
weight | 53.14kg | 92.95kg | 36.08kg | 65.41kg |
color | Wight or others | Wight or others | Wight or others | Wight or others |
Model | Supermarket Back board shelf | |||
Post or upright size | 40*60 | 30*70 | ||
Side(oneside or inside | One side | Double side | One side | Double side |
Specification | 1200*550*2000 | 1200*1100*2000 | 1200*450*1800 | 1200*900*1800 |
Thickness of board | 0.6mm | 0.6mm | 0.5mm | 0.5mm |
Thickness of post or upright | 1.8mm | 1.8mm | 1.35mm | 1.35mm |
Thickness of back panel | 0.4mm | 0.4mm | 0.4 mm | 0.4mm |
Capacity(each layer) | 100-150kg | 100-200kg | 100-120kg | 120-150kg |
Quantity of layers | 5 | 5 each side | 5 | 5 each side |
Cubic meter | 0.088 | 0.163 | 0.068 | 0.129 |
weight | 49.14kg | 88.95kg | 39.08kg | 68.41kg |
color | Wight or others | Wight or others | Wight or others | Wight or others |
Package:
Our normal packing solution(free) | Suggest packing solution: |
Shelf panel:carton box Upright: bulk packing/wooden frame Back panel:carton box Bracket:carton box Feet:carton box Gondola cover:carton box | Shelf panel:wooden pallet Upright:wooden pallet Back panel:wooden pallet Bracket:wooden crate Feet:wooden pallet Gondola cover:wooden pallet |
OEM work instruction:
Upright/Pillar: 60x30x1.5-3.0mm
70x30x1.5-3.0mm
80x30x1.5-3.0mm
60x40x1.5-3.0mm
80x40x1.5-3.0mm
Panel Thickness: 0.7/0.8/0.9/1.0/1.1/1.2/1.3/1.4/1.5mm
Shelf Thickness: 0.5/0.6/0.7/0.8/0.9/1.0mm
Bracket Thickness: 1.5/2.0/2.5mm
Plinth and Top Cover: 0.5/0.6/0.7/0.8/0.9/1mm
Price list tag: different colour available
Highbright Enterprise Limited was founded in year 2004 and located in Jiangsu, China.Mainly design and manufacture retail equipments.Products include various shopping trolleys, shopping baskets, warehouse trolleys, kids trolley, foldable shopping carts, checkout counters, store fixtures, shop fittings, display shelves etc.
With production capacity of ten containers per week, we have cooperated with big chain supermarkets and retailers in Europe, North America, South America, Australia etc.When dealing in these various products fields, HIGHBRIGHT not only offer existing styles, but also customize special and unique design with our professional technique team.
With us as your partner, you'll be well prepared to cope with any future changes.That's because we've never reacted to trends, but instead we've actively helped to mould them with our numerous developments.
Our Vision:To be the best one-stop-sourcing retail equipments supplier from China.
Our Mission:Let more international chain stores use Chinese retail equipments.
Our Value:We conduct our business with Integrity, Honesty and Fairness.
Our Culture:We Sell!We Care!
With production capacity of ten containers per week, we have cooperated with big chain supermarkets and retailers in Europe, North America, South America, Australia etc.When dealing in these various products fields, HIGHBRIGHT not only offer existing styles, but also customize special and unique design with our professional technique team.
With us as your partner, you'll be well prepared to cope with any future changes.That's because we've never reacted to trends, but instead we've actively helped to mould them with our numerous developments.
Our Vision:To be the best one-stop-sourcing retail equipments supplier from China.
Our Mission:Let more international chain stores use Chinese retail equipments.
Our Value:We conduct our business with Integrity, Honesty and Fairness.
Our Culture:We Sell!We Care!
