Supermarket Warehouse Storage Shelves Bolted Pallet Rack
| Price: | US $ 150/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | HBE-SR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Finish: | Plastic Powder Coating |
| Color: | Pantone Color Available |
| OEM: | Acceptable |
| Product: | Storage Shelves Bolted Pallet Rack |
| Material: | Steel and Reinforced Concrete |
| Structure: | Layer Frame |
| Mobility: | Combined |
| Height: | 0-5m |
| Weight: | 500kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description

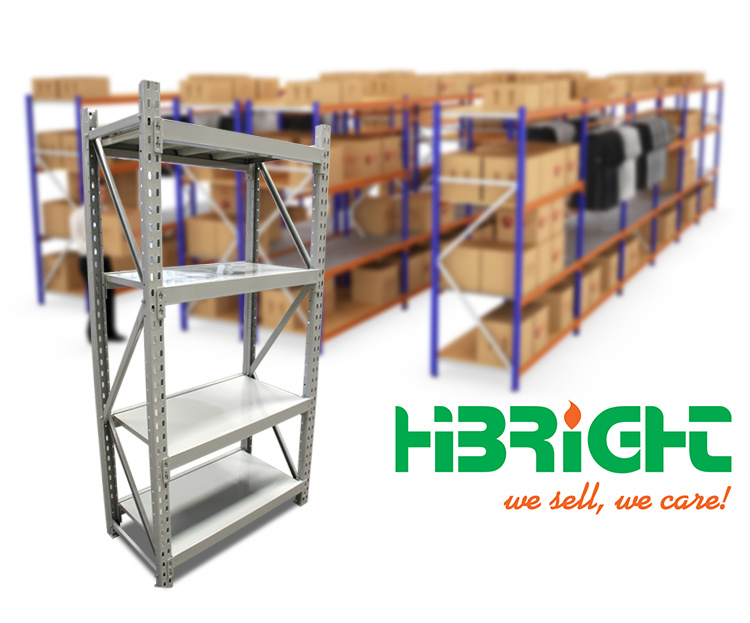

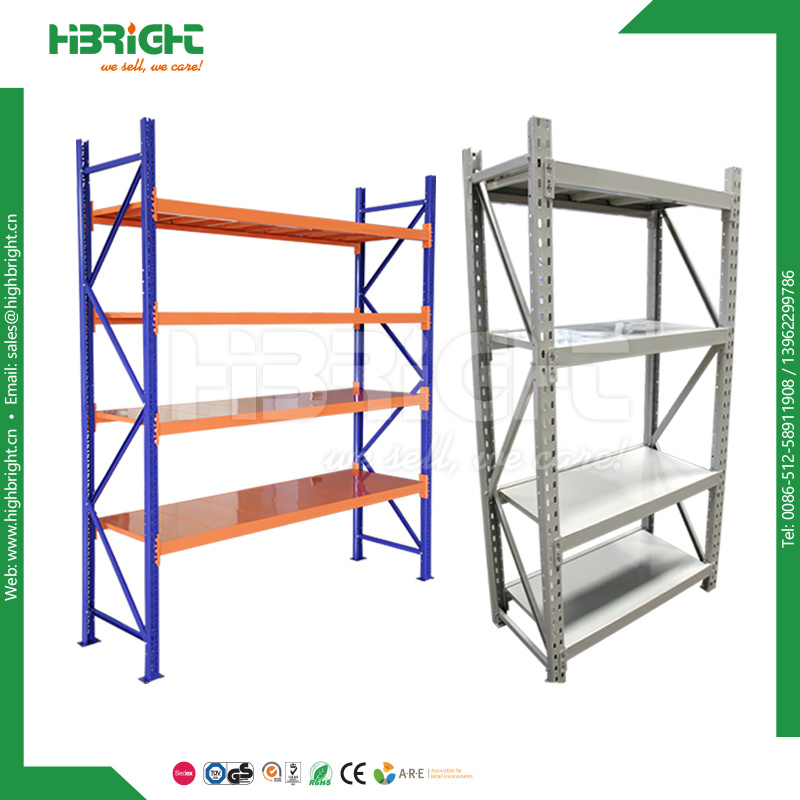

Supermarket Warehouse Storage Shelves Bolted Pallet Rack
Features:
1) Height: 1800-2500mm
2) Width: 450-600mm
3) Length: 1200-2000mm
4) Load capacity: 200-500kg/layer
5) Material: Cold rolled steel tube
6) Separable
7) Can be connected with another shelf
8) Available in assorted colors
9) Practical, convenient and attractive
10) Customized orders welcomed
Outer packing:
Knockdown packaging according to part dimensions

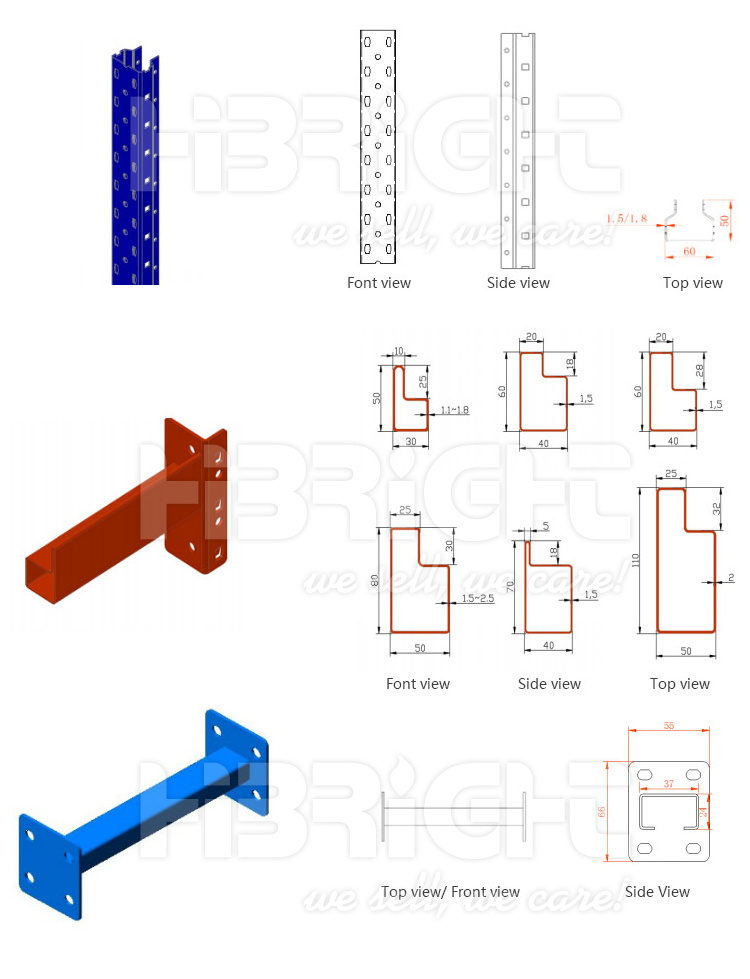

| Upright frames Keyhole-style post Cross section 3" x 3" | Size (in inch) | Size (in mm) | Weight (kgs) |
| 1( thickness 1.9mm ) | 36" X 96" | 914.4*2438.4 | 27.591 |
| 2( thickness 1.9mm ) | 36" X 120" | 914.4*3048.4 | 33.731 |
| 3( thickness 1.9mm ) | 36" X 144" | 914.4*3657.6 | 38.607 |
| 4( thickness 1.9mm ) | 36" X 168" | 914.4*4267.2 | 45.084 |
| 5 thickness 1.9mm ) | 36" X 192" | 914.4*4876.8 | 49.929 |
| 6( thickness 1.9mm ) | 36" X 216" | 914.4*5486.4 | 55.702 |
| 7( thickness 1.9mm ) | 36" X 240" | 914.4*6096.0 | 62.679 |
| 8( thickness 1.9mm ) | 42" X 96" | 1066.8*2438.4 | 28.999 |
| 9( thickness 1.9mm ) | 42" X 120" | 1066.8*3048.0 | 35.210 |
| 10( thickness 1.9mm ) | 42" X 144" | 1066.8*3657.6 | 39.984 |
| 11( thickness 1.9mm ) | 42" X 168" | 1066.8*4267.2 | 46.594 |
| 12( thickness 1.9mm ) | 42" X 192" | 1066.8*4876.8 | 51.306 |
| 13( thickness 1.9mm ) | 42" X 216" | 1066.8*5486.4 | 57.232 |
| 14( thickness 1.9mm ) | 42" X 240" | 1066.8*6096.0 | 64.709 |
| 15( thickness 1.9mm ) | 48" X 96" | 1219.2*2438.4 | 30.529 |
| 16( thickness 1.9mm ) | 48" X 120" | 1219.2*3048.0 | 36.740 |
| 17( thickness 1.9mm ) | 48" X 144" | 1219.2*3657.6 | 42.871 |
| 18( thickness 1.9mm ) | 48" X 168" | 1219.2*4267.2 | 48.195 |
| 19( thickness 1.9mm ) | 48" X 192" | 1219.2*4876.8 | 53.091 |
| 20( thickness 1.9mm ) | 48" X 216" | 1219.2*5486.4 | 58.813 |
| 21( thickness 1.9mm ) | 48" X 240" | 1219.2*6096.0 | 66.769 |
