Home LED Light Products Supper Use in Industry Light Duty Shelf Steel Q235 Without Bolts
Supper Use in Industry Light Duty Shelf Steel Q235 Without Bolts
| Price: | US $ 30-60/Set |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 50/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | EBIL-JGHJ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | as Request |
| Size: | as Request |
| Certificate: | CE,SGS,ISO |
| Capacity: | >500kgs |
| Style: | Single Face |
| Entry Type: | 2-Way |
| Certificaton 1: | CE |
| Certification 2: | ISO |
| Certification 3: | SGS |
| Surface Treatment: | Powder Coating or Galvanized |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Light Span Racking |
| Height: | 800-2000mm. |
| Weight: | 50-260kgs/Level |
Product Description
Supper Use In Industry Light duty Shelf Steel Q235 Without BoltsProduct Description

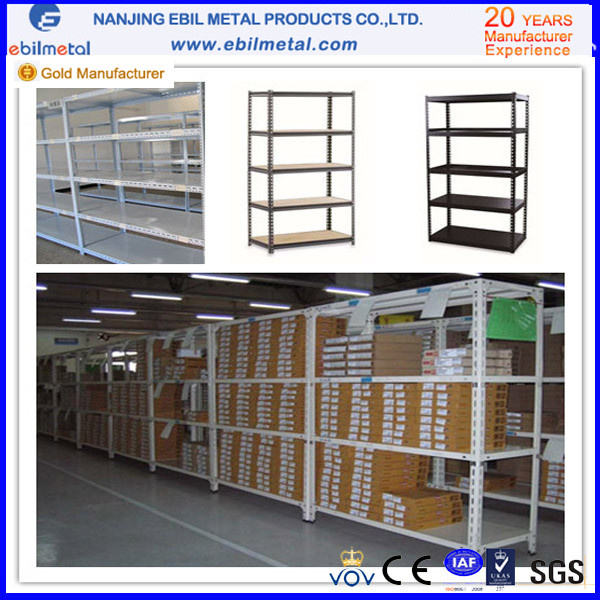

Widely used in home, supermarket, company, for storage cargo and more suitable for supermarket & company wholesale with large quantity.

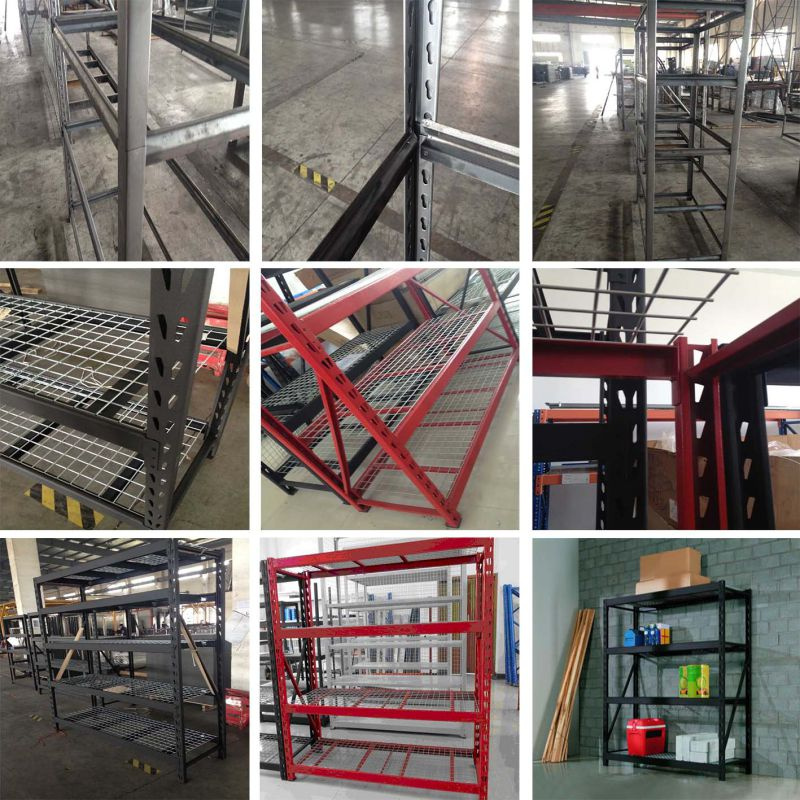

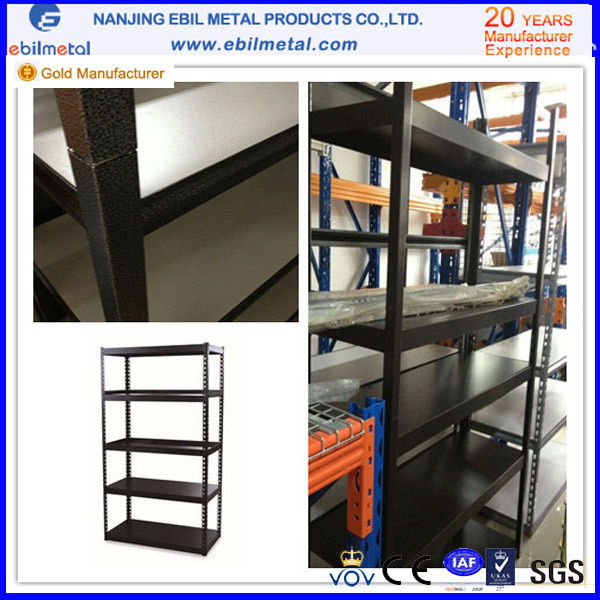

Ebil Metal Light duty rack
Features:
1) Adjustable pitch and customized height between levels
2) Heavy loading capacity of 175kg/level
3)Different sizes available
4) Flexible structure to freely assemble & designed without pins
5) Adjustable layer height (pitch: 50mm)
6) Simple and quick installation
7) Mainly used as storage solution for manually handled light loads and Sorting lines

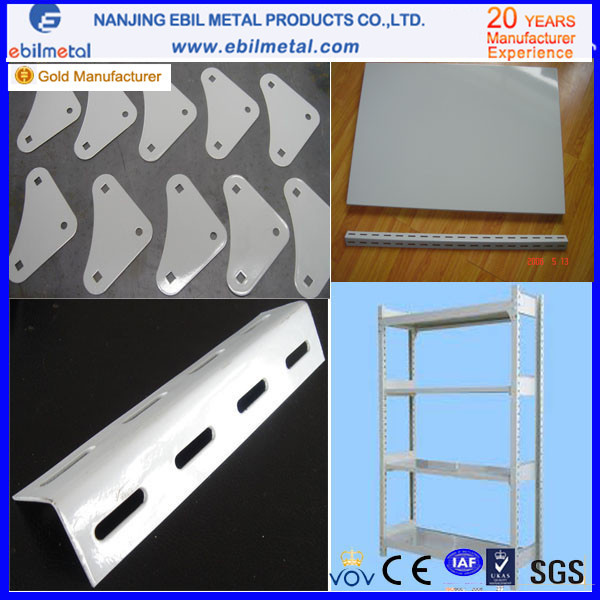

8) Slotted Angle Shelving, framed by common angle iron, assembled by connective or inserting method, are
9) Color: Galvanization
Ebil Metal Common size
Length x Depth: 900x450 1000x300 1000x400 1000x500 900x700
Size (mm): 1200x600 1500x450 1500x600 1800x450 1800x600
Height: 1.5m, 1.8m, 2m, 2.5m

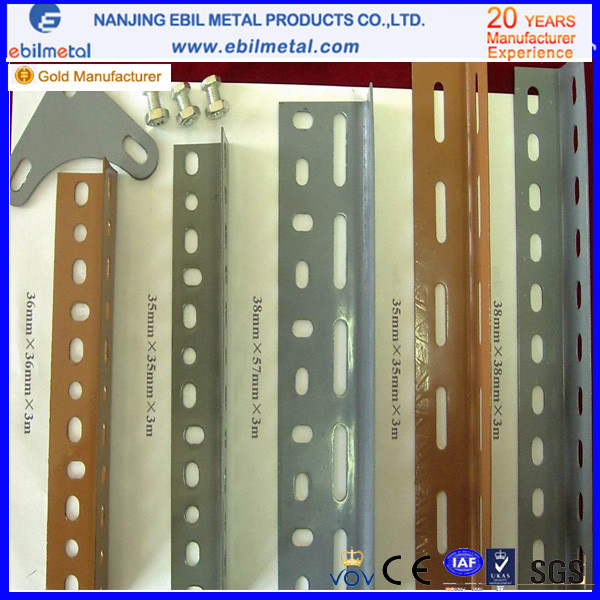

Upright Size 38x38x1.8mm (Pitch: 50mm)
Load Capacity: 100-175kg/layer
Remarks Plastic Spraying: Non-Standard Specification Available Upon Request
| 1. Style: | Manual storage |
| 2. Certification | ISO9001:2008 |
| 3-1: Standard size for S teel Panel: | L1200 × D400 × H1500mm L1500 × D500 × H1500mm L1500 × D600 × H1800mm L1800 × D500 × H1800mm L1800 × D500 × H2000mm |
| 3-2: Standard size for W ooden Panel | L900 × D400 × H1800mm L900 × D450 × H1800mm |
| 4. Customized sizes acceptable: | Yes |
| 5. Load weight | 100-150kg/level |
| 6. Panel Types | Wooden panel, Steel panel |
| 7. Standard colors | Light grey, Dark grey (can be customized) |
| 8. Special color available | Yes |
| 9. MQQ | 1 unit |
| 11. Standard export package | Metal strip, film, paper board and master carton |
Ebil Metal Advantage
Low MQQ: Meeting actual small requests;
OEM Acceptable: We can produce you design;
Good service: We treat clients as friend;
Good quality: We have strict quality control system. Good reputation in the market;
Fast delivery: Scientific production arrangement to ensure the fast delivery.
If you are interested in our rack, please offer following info for a clear quotation:
1)- layout of your warehouse(if available) of length x width x clear height
2)- height of rack
3)- door site
4)- the size and weight of the pallet (after loading)
5)- forklift access size
6)- levels you would like
If you don't have the drawing, we could provide you the CAD design for your warehouse to your requirements, thanks a lot.

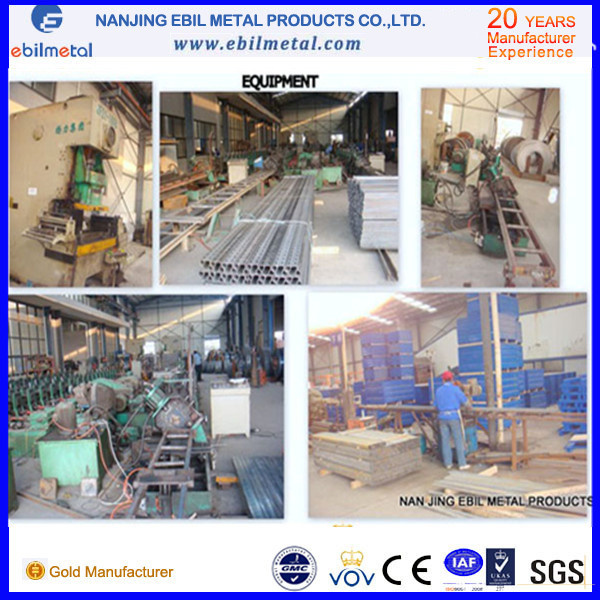

Ebil Metal Factory
Ebil Metal Team
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
For new and old import & export customers supply:
1. Solutions simple /regular warehouse rack/storage metal shelving, high-end warehouse / complete large-scale Intelligent Storage logistics system(6000MT/PER MONTH) warehouse planning, conveyance equipment; Various racking and storage management.; Optimize your warhouse; Economize space and cost.
2. A professional team, experienced engineers, advanced manufacturing equipment, particular production technology; Ebilmetal strictly implements ISO9001 Standard in all peration; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3. Supply Specialized installation guidance and after services that anytime and any country if customer need
4. Reply your inquiries within 24 hours anytime and anywhere
