Supply PP Adjustable Hollow Grid Plate Extrusion Plastic Mould
| Price: | US $ 10000-50000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Jx-005 |
|---|---|
| Structure: | Hanger-Style |
| Mould Material: | 45#, 40cr, P20... |
| Production Thickness: | 2-5mm |
| Bolts: | 12.9 Grades |
| Heating Control: | Heater |
| Zones: | 7 Zones |
| Production Shape: | Rice Shaped, Square Shaped, Multilayer Board.. |
| Use: | Building Templates |
| Warranty: | 1 Year |
| Delivery Detail: | About 50 Days Dfter Down Payment |
| Shaping Mode: | Extrusion Mould |
| Process Combination Type: | Single-Process Mode |
| Application: | Hardware |
| Installation: | Fixed |
| Certification: | ISO9001:2015,ISO14001:2015,GB/T28001-2011,SGS |
Product Description
FAQQ: Are you trading company and manufacturer?
A: Juxing mould is a manufacturer.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Shipping list
A: mould 1set, heater 1set, toolbox 1pc, plug 2 pcs,
heater ring 2 pcs, spanner each 1 pc, instruction manual 1 pc.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance shippment.
If you have another question, pls feel free to contact us.
PRODUCTION DESCRIPTION

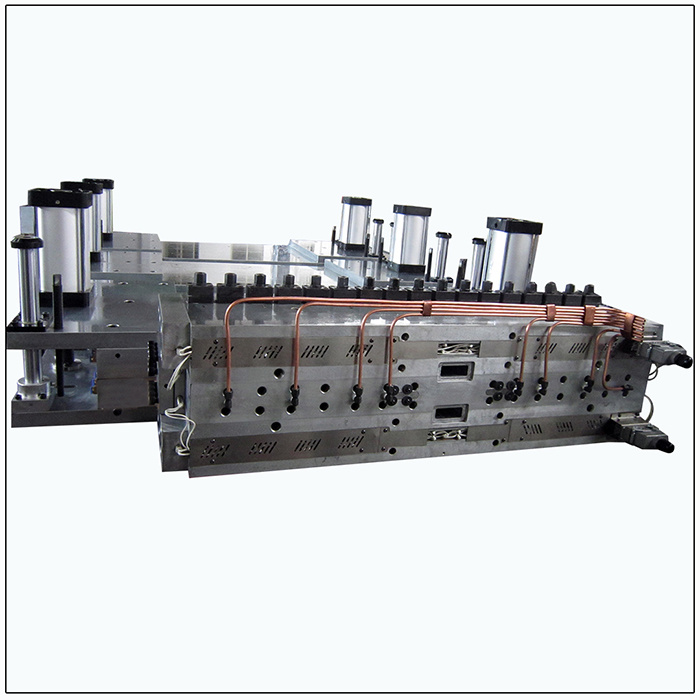

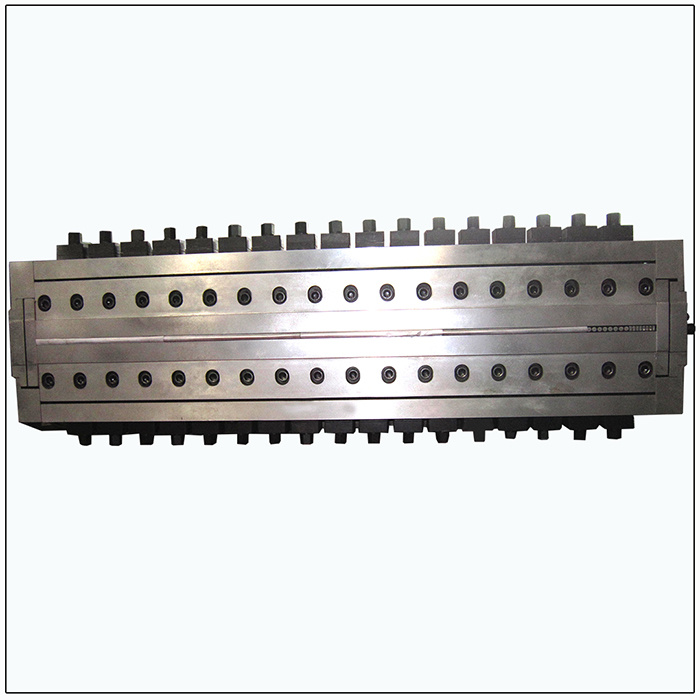

1. Hangers-style structure.
2. The upper and lower lips are flexible, the lower die lip thickness adjustable, can satisfy the different thickness of product demand, with blowing device.
3. All sides of the mould plated chromium and used high-strength bolts with 12.9 grades.
4. The heater make of nice stainless can be control heating.
5. Steady production, the structure is simple, easy to remove and cleaning.

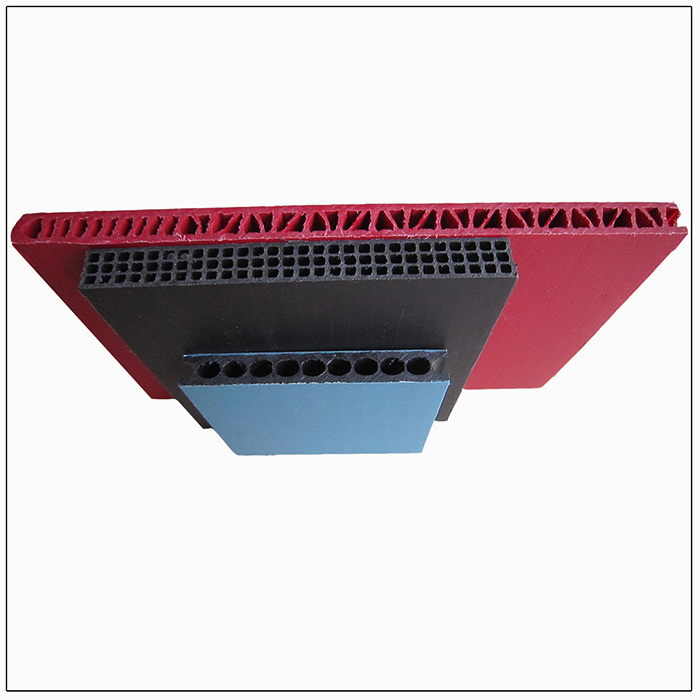

6. Production thickness: 2-5mm, the hollow sheets like rice shaped, square shaped, multilayer board products and so on.
7. Suitable for: PP materials.
8. Mould width:1500mm.
| Product Name | Supply PP adjustable hollow grid plate extrusion plastic molding |

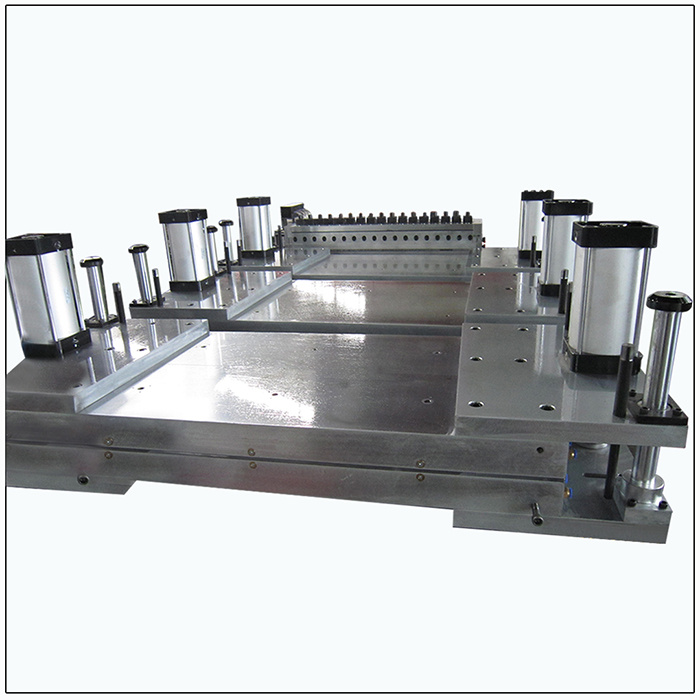

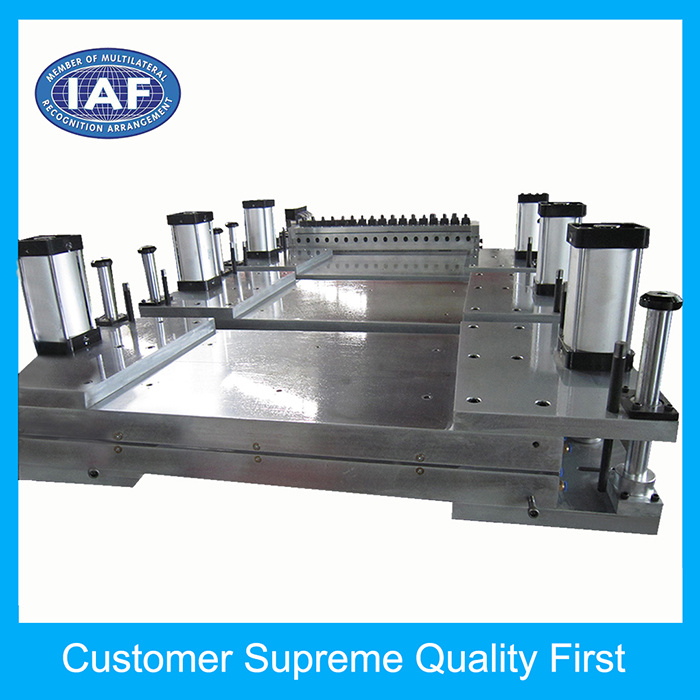

| Constitute | 1set mould and 2sets of stereotypes board |
| Mould Material | 45#, 40Cr, P20 or as customer's requirement. |
| Mould Width | 1500 mm |
| Prouct Width | 1250mm |
| Production Thickness | 2-5 mm |
| Use | PP material |
| Mould Treament | Mirror polishing, Electroplating |
| Bolts | High-strength bolts for 12.9 grades |
| Heat Control | Heater |
| Volitage | 220V |
| Mould Feature | Reasonable structure design, good surface treatment, long mould life, shorter deliver time, the best price. |
| Process Equipment | CNC, EDM, Drill, Wire Cutting, etc |
| Software | AutoCAD, UG, Pro/E, Cimatron... |
| Provides Service | Provides detailed product introduction and overall quotation service. |
| Design Team | We have a professional design team. Provides design plans as clients' request. |
| Professional Factory | We are factory, specializing in manufacturing plastic injection mould. |
| No. | Flow-process Diagram | |
| 1 | Sample/Drawing | We need your detail require clearly. |
| 2 | Negotiation | Material, cavity, price, delivery time, payment term ,etc. |
| 3 | Place order | According your own design or choose our design. |
| 4 | Mould design | We will communicate & exchange the opinion with you during making drawing. |
| 5 | Tooling mould | After customers approve the mould design will start making mould. |
| 6 | Mould process | Provide photos for customer show them tooling process. |
| 7 | Mold testing | Mold testing |
| 8 | Sample confirm | Send the samples to our client's confirmation. If not satisfied by customer, modify mold. |
| 9 | Delivery mould | Qualified samples after, arrange the shipment. |
