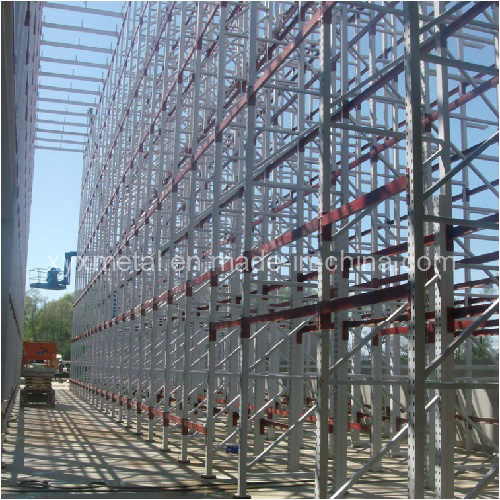

Supported Building Installation During Construction Pallet Rack
| Price: | US $ 50-800/Set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 10/Set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
|---|---|
| Delivery: | 20 Workdays Upon Receipt of The Deposit |
| Serviceability: | Common Use |
| Development: | Conventional |
| Closed: | Semi-closed |
| Mobility: | Combined |
| Structure: | Rack |
| Material: | Steel |
| Weight: | 700-4000kg |
| Height: | 2-11m |
Product Description
Heavy-duty storage rack is also called pallet rack, beam rack and storage shelf, they are most widely used which need to apply with forklift that can pick up freely any goods put on to the location with the feature of simply structure, easy operation, good storage and safety.Heavy-duty beam racks can be used companied with different kinds of accessories, such as support bars, wire cages, steel pallets, wood pallets, steel meshes, etc, to meet different demands.
Heavy-duty beam rack usually has following features:
1), Color and size can be adjusted according to your requirements.
2), Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section and hole distance 50mm or 75mm.
3), Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4), Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5), Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6), Stable structure, large loading capacity, convenient sorting.
7), compatible with most type of handling equipment and building structures.
8), First level pallets can be placed on the floor.
9), Easy to install and dismantle.
Our normal standard type storage racks as below sheet:
Refer to the sheet, we have several normal standard types for your choice.
If there are not suitable one for you, we also accept your customized design.
| Feature of Pallet racking (Sheet 1) | ||
| Meterial | High quality cold rolled steel. Q235b (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M) | |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. | |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. | |
| Length | 0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements. | |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0mm. | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
|
Loading capacity (per layer) |
700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. | |
| Layer | 2-5. or according to customer' s reqirement. | |
| Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then outside bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. | |
| Delivery detial: | 10-15 ton per 1x20ft container, 15-25 ton per 1x40ft container. 15-20 workdays after received the deposits. | |
| Loading Capability and beam Spec. (Sheet 2) | |||||||||
|
Length(mm) Beam Spec. |
1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | |
| Load capacity(kg) | |||||||||
| 80X50mm | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 | |
| 100X50mm | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 | |
| 120X50mm | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 | |
| 140X50mm | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 | |
XYX METAL Co., Ltd. is a specialized manufacturer of Storage Racks, display rack, logistic container, steel furniture and others metal products. Our products have been exported to North America, South America, Europe, Middle East and Asia since 2009 and win good reputation from world widely.
Our products are made of high quality steel materials and the surface is treated by automatic powder coating or galvanized to make them durable. With over 50 advanced automatics machines and equipments, outstanding technology and over 120 skillful workers, makes sure our products high quality, low pollution for the shorted time and reduced cost. Meanwhile, loading capacity is strictly tested to ensure safety. All our products have the features of good loading capacity, environmental protection and easy to assemble and disassemble.
Our main products kinds of storage racks, which can be used in storage and logistics centre etc. Wire cage can be used in workshops and warehouse for containing and carrying, storage more convenient. Shaped steel can be used in high-way segregating and profile of furniture and racks. Shelves can be used in supermarket and display goods. You can find what they want here according to their own requirement because our various kinds of products which can meet different needs for storage and display equipment.
Our factory covers more than 10, 000 square meters. You are warmly welcome to visit us whenever you are available. We can provide efficient and quality service and hope to support you around the world to win business. Welcome to contact with us to start business.
