Home LED Light Products Tempered Insulated Glass for Building Window Curtain Wall
Tempered Insulated Glass for Building Window Curtain Wall
| Price: | US $ 1-50/Square Meter |
|---|---|
| Min Order: | 2500/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | TG06 |
|---|---|
| Material: | Float Glass, Patterned Glass |
| Glass Grade: | a++++ Grade |
| Glass Processing: | Toughening, Acid Etched, Sandblasting, etc. |
| Edge Work: | C-Edge, Flat Edge, Polished Edge |
| Transparency: | Ultra Clear, Clear or Opaque |
| Shape: | Flat |
| Appearance: | Flat Tempered |
| Steel Degree: | Tempered Glass |
| Fragment State: | I |
| Technics: | Physically Tempered |
| Flatness: | High Class |
| Usage: | Military |
| Standard: | CCC, En12150, Ansiz97.1 |
| Thickness Of Flat Tempered Glass: | 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm |
Product Description

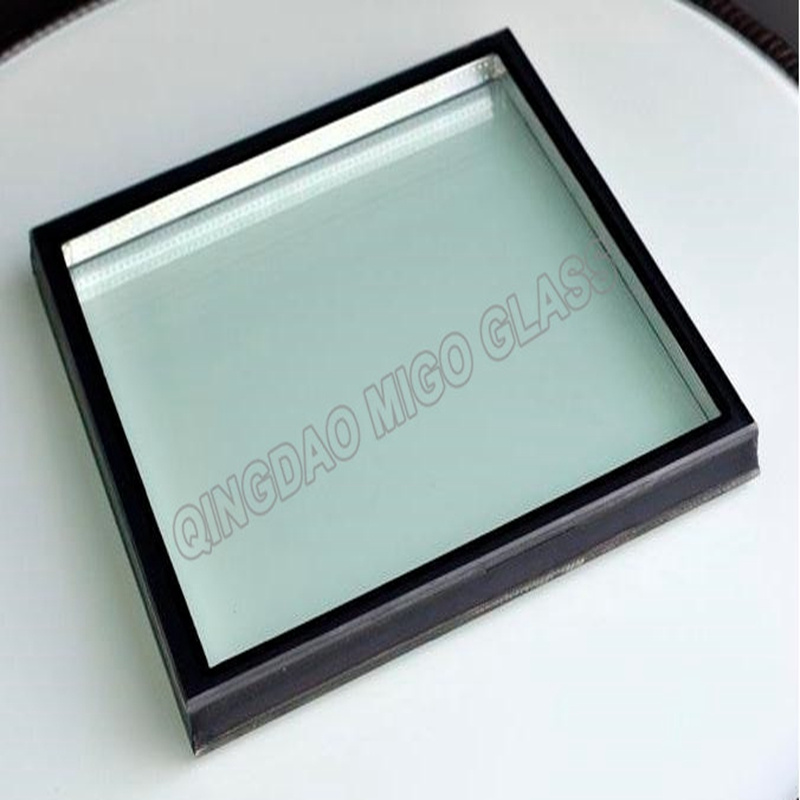

Tempered Insulated Glass For Building Window Curtain Wall

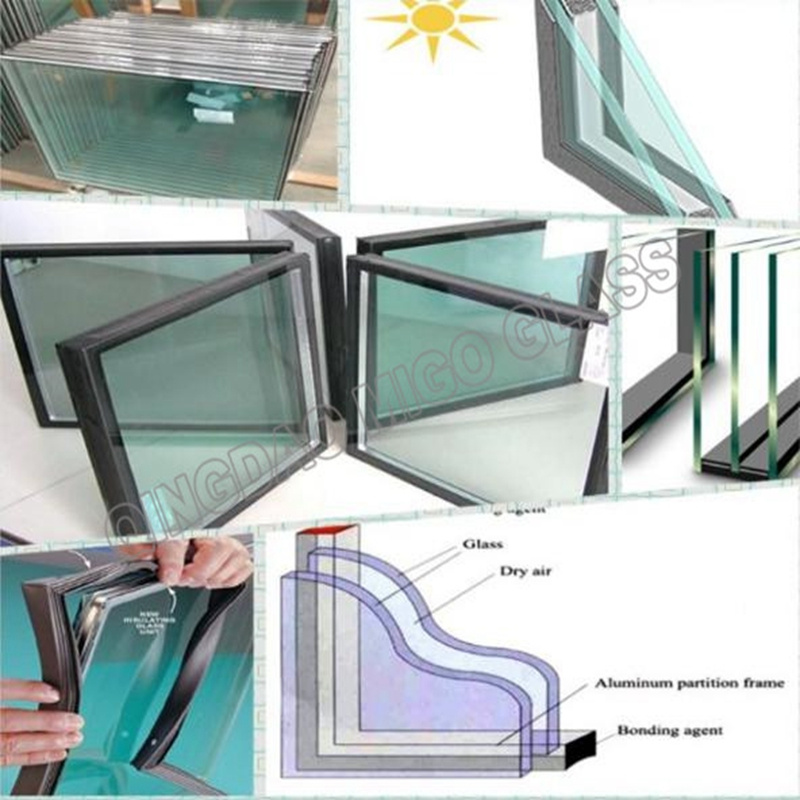

Tempered insulating glass is composed of two or more sheets of float glass. Between the two sheets of glass is an aluminum spacer filled with desiccant. The aluminum spacer and sheets of glass are adhered and sealed by butyl and then polysultide or silicon.
Specification:
1.Min size: 300mmx300mm Max size: 2700mmx5000mm
2.Thickness of glass sheet: 4-22mm. Thickness of gas layer: 6A, 9A, 12A, 16A
3.Certificate: ISO9001 and CCC
4. Adopting the dual-tight, continuous intervals and molecure sieve keeps the insulating glass having the longest expectancy.
Product Features:
1. Low energy consumption, comfortable indoors environment, heat insulation and dew condensation prevention.
2. The heat and sound insulation effects could be further improved if Argon or other inertial gases are filled between the glasses.
3. Insulating Glass with LOW-E coating effectively insulates heat radiation.
1. Specifications:
Thickness | 3~25mm |
Min Size | 50 mm×50mm |
Max Size | 3300mm×18000 mm |
Purity | 99.8% |
Mohs hardness | 8 |
Density | 2.5g/cm3 |
Menlting point | 723ºC |
annealing point | 544ºC |
Pressure point | 504ºC |
Coefficient of thermal conductivity | 36.9 |
2. Features:
1) High intensity:
The strength is 3-5 times of ordinary annealed glass in same thickness;
2) High thermostability:
Tempered glass can withstand the large temperature difference(200°), the thermostability is 3 times of ordinary annealed glass;
3) Wind pressure resistance
The wind pressure resistance is 1.5-3 times of ordinary annealed glass;
4)High safety
Once breakage occurs, the glass breaks into small cubical fragments, which are relatively harmless to human body.
5) Considering the characteristics of tempered glass, glass size should be confirmed before making production. Once tempered glass size is confirmed, tempered glass can not be made mechanical treatment any more, otherwise, it will be broken.

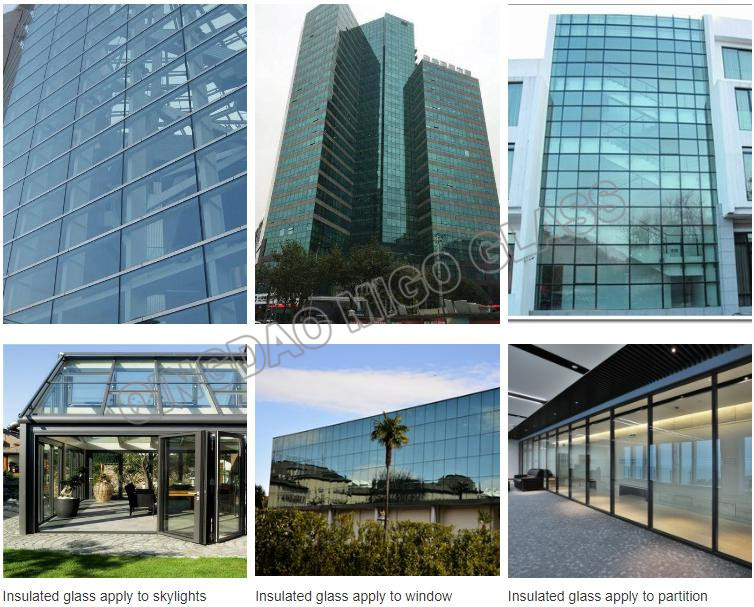

3.Applications:
Flat tempered and curved tempered glass are belong to safe glass. Widely used on high-rise building Plat window and door,,glass curtain wall,,indoor partition,lighting ceiling,Sightseeing elevator channel,furniture ,glass railing and so on

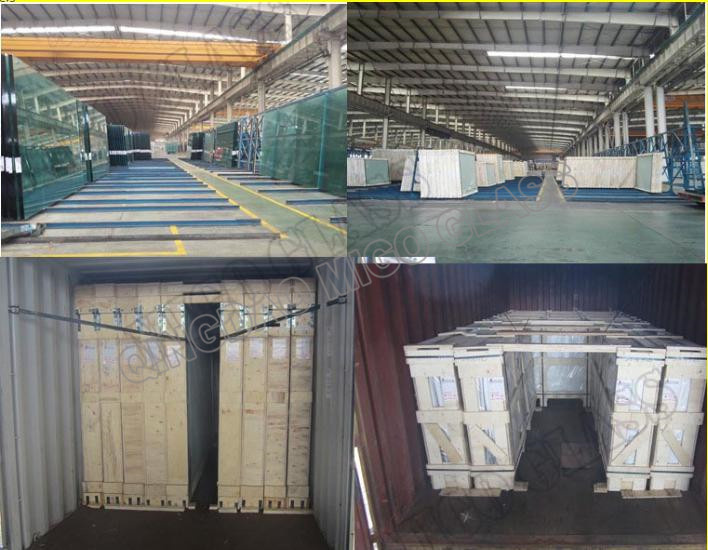

Packing & Delivery
Packing: Wooden Crates with Paper Between Glass
Delivery: Within 30 days after receiving your deposit
MigoGlass Competitive Advantages:
a. 20 years experience in glass production and export.
b. Direct factory price, quick delivery, professional package and container loading design.
c. Quality assurance. ISO 9001:2008 Quality System Certification. Glass products with CE certification,
SGS test reports.
d. Full range of glass supply, offering one-stop purchase.
e. Excellent sales team, offering personalized and dedicated pre-sale and after-sale service.
FAQ
| 1. What is the delivery time? |
| A: Normally our delivery time is within 30 days after receiving your deposit or L/C. If your Quantity is very big or have abnormal quality demand, we will need more time to prepare the goods. |
| 2. What is your MOQ? |
| A: Our MOQ is 1 x 20ft cotainer. |
| 3. How many colors can you load in one container? |
| A: You can email to till us the descriptions and pictures or send us samples, our professional stuff will work on it and make samples for your confirm ASAP. |
| 4. If we don't fine what we want on your website, what should we do? |
| A: You can email to till us the descriptions and pictures or send us samples, our professional stuff will work on it and make samples for your confirm ASAP. |
| 5. Can we get samples for quality testing? |
| A: Yes, we are glad to send some pcs for quality testing if we have the item you need in stock. |
| 6. What is your payment term? |
| A: T/T 30% in advance or L/C, to save money and more easy, we prefer T/T term. |
