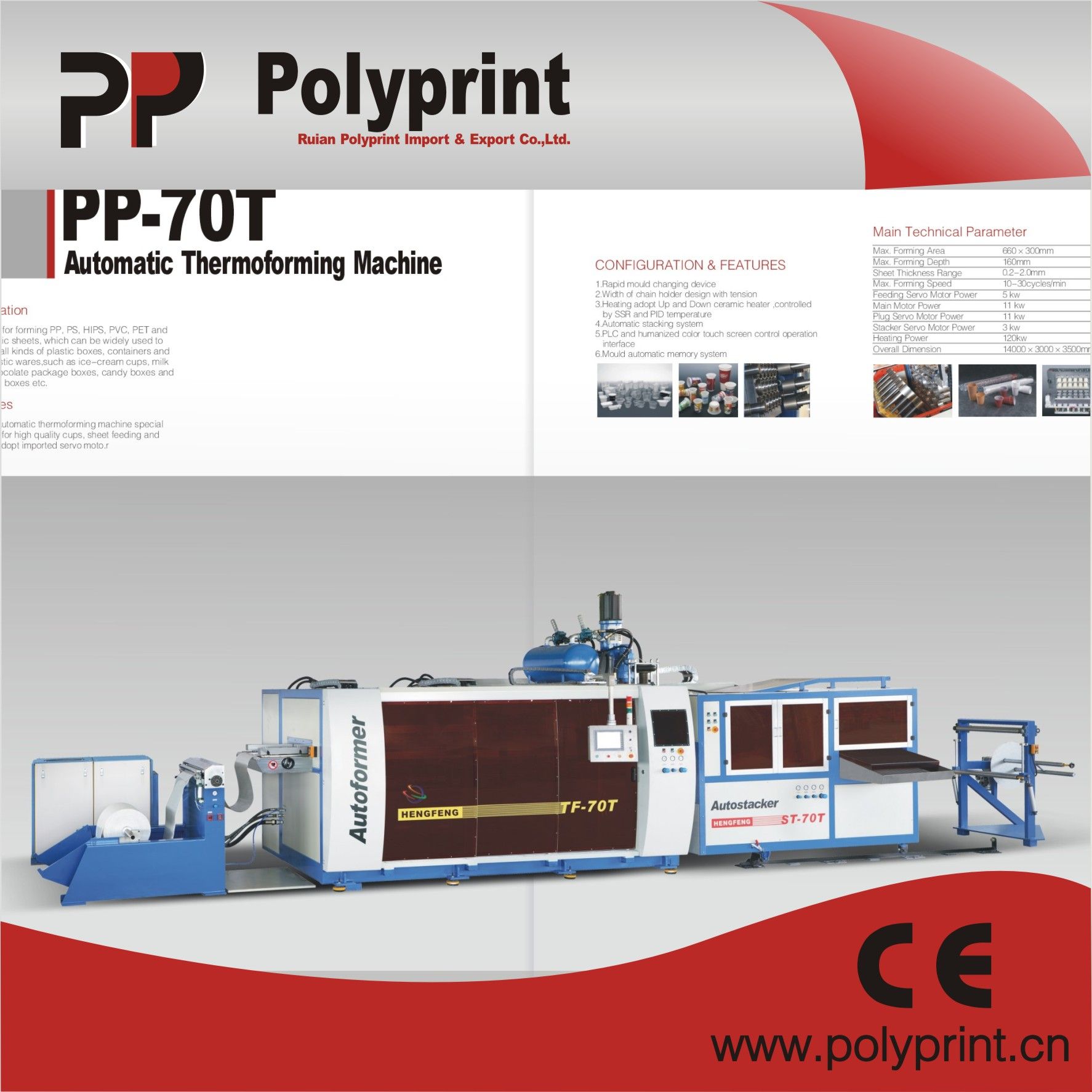

Tilt Cup Thermoforming Machine (PP-HFTF-70T)
| Price: | US $ 180000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | PP-HFTF-70T |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Electricity Consumption: | High Speed |
| High Usage: | All Servo Motor |
| Automatic Counting: | Automatic Stacking |
| Automatic Forming: | 3-Row Mould |
| PP Cups: | PS Cups |
| Pet Cups: | 180mm Depth Cups |
Product Description
APPLICATION:PP-HFTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
FEATURE:
Rapid mould changing device
Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
Automatic stacker system
PLC and humanized color touch screen control operation interface.
Mould automatic memory system.
| 1- Max. Forming Area | 680×325mm |
| 2- Max. Forming Depth | 160mm |
| 3- Sheet Width Range | 550-720mm |
| 4- Sheet Thickness | 0.4-2.0mm |
| 5- Max. Roller Diameter | Φ1500mm |
| 6- Air Pressure | 0.68-0.8mpa |
| 7- Water Consumption | 50L/min |
| 8- Air Consumption | 3000L/min |
| 9- Speed | 10-35 Cycles/min |
| 10- Power (Three Phase Four Wire) | 3×380V+NP+PE.50HZ |
| 11- Heating Power | 120kw |
| 12- Main Motor Power | 11kw |
| 13- Feeding Motor Power | 4.4kw |
| 14- Scrap Rewinding Motor Power | 0.55kw |
| 15- Machine Weight | 10000kg |
| 16- Diameter | 14000×3000×3500mm |
