Top Quality Metallic Vna (very narrow aisle) Pallet Racking
| Price: | US $ 0.8-1.3/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | BEILMETAL - VPR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | According to Your Request |
| Colour: | Red, Blue, Orange, Green, etc |
| Aisle Width: | 1.6-2m |
| Finishing: | Powder Coating, Galvanized |
| Feature: | Rust & Corrosion Protection |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-4500kg |
Product Description
Top Quality Metallic VNA (very narrow aisle) Pallet Racking
VNA(Very Narrow Aisle) Pallet Racking is another style of pallet racking, which could increase the pallet positions by saving the width of the forklift aisles.
1. VNA pallet racking is a special pallet rack with narrow aisle(1.6m to 2m);
2. VNA pallet racking can save more aisle to largen storage space, space utilization improves 20%;
3. VNA pallet racking is easy install/dismantle;
4. VNA pallet racking can load 1-2T/pallet, each level can load 4000kgs max;
5. Level height can be adjusted by 75mm per pitch freely;
6. VNA pallet racking suits almost all types of palletized goods;
7. Rapid through put and handling;
8. Lowest level pallets can be placed on the floor;
9. VNA pallet racking need special forklift (three-way forklift or magmetic guided forklift) match it;
11. Height of VNA Racking can be as high as 15m;

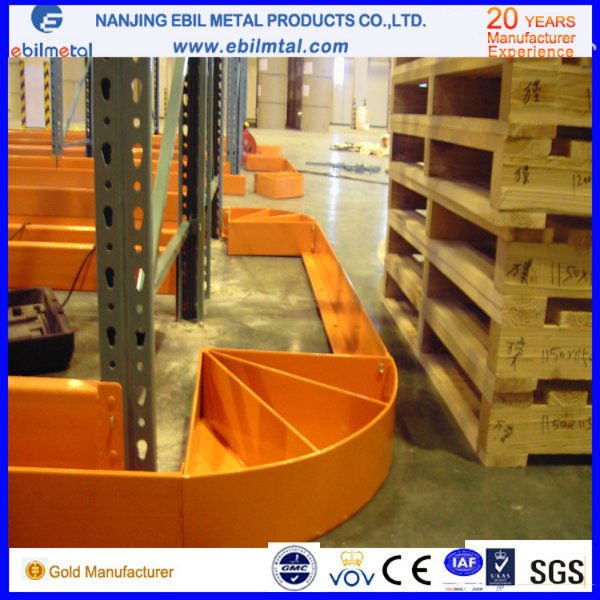

12. Guiding guard rail shall be set along the two sides of the aisle to guide the forklift.
Specification:
Product Name | VNA Racking Very Narrow Aisle Storage Systems, Warehouse Pallet Racking system |
Material | Q235B |
Color | Red, Orange, Light grey,blue, Pea green, Milk White |
Loading Capacity | up to 4000kgs per layer |
Racking Depth | 0.7-1.2m |
Beam Length | up to 4m |
Racking Height | up to 15m |
Racking Finish | Powder Coated Finish or Glavanized Finish |
Accessory | Upright, Beam, Foot Plate, Row Spacer, Drum Support, Post Protector, Pallet Support, Steel Panel, Guide Rail |
Main Feature:
1. Easy to assemble and disassemble
2. Height of each layer is adjustable by pitch 75mm.
3. Max. Loading capacity per layer is 4000kg.
4. Strength and rigidity prevents compression damage to goods; pallets can be located, accessed and moved individually
5. VNA Pallet racking suits almost all types of palletized goods
6. Easy relocation or addition of load supporting beams to accommodate new load sizes and / or additional levels
7. Rapid through put and handling
8. Compatible with most types of handling equipment and building structures
9. Available as individual components or as complete system
10. Lowest level pallets can be placed on the floor
11. Made of high grade steel
5. Components: Upright, Beam, Foot Plate, Row Spacer, Drum Support, Post Protector, Pallet Support, Steel Panel, Guide Rail
Please inform us of the following information for quick quotation:
a) AutoCAD drawing (if available)
b) Size of your warehouse?
c) Size of the racking (height x width x depth)?
e) How many levels of the racking?
f) Loading capacity of each level?
g) (RAL) Color you want?
If you don't have the drawing, we could provide you the CAD design for your warehouse according to your request.

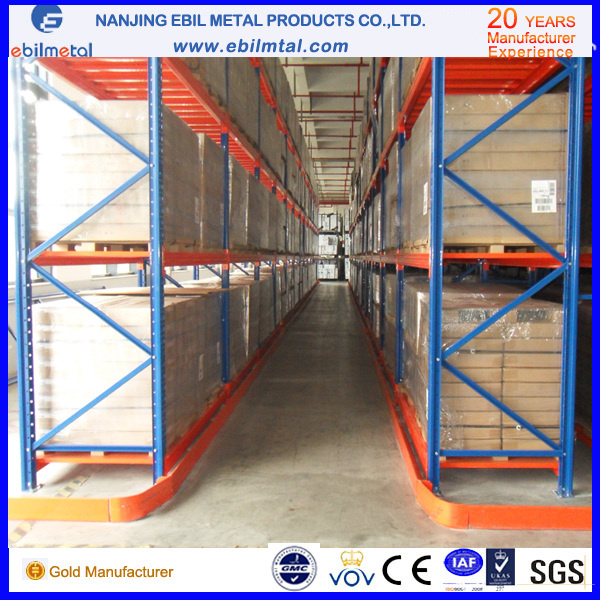

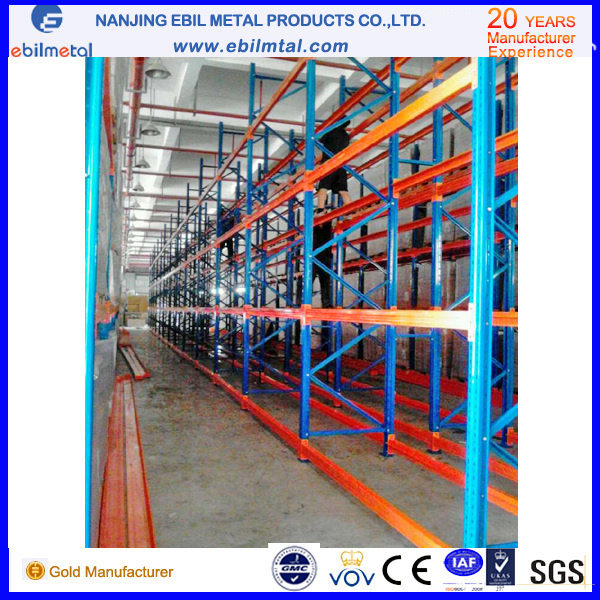

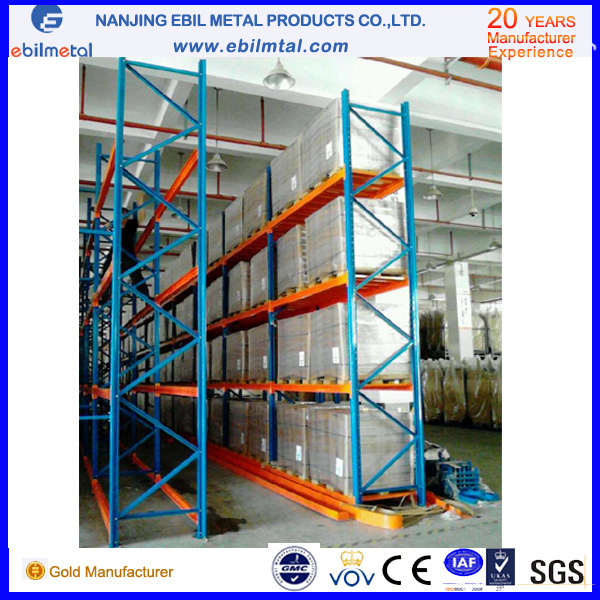

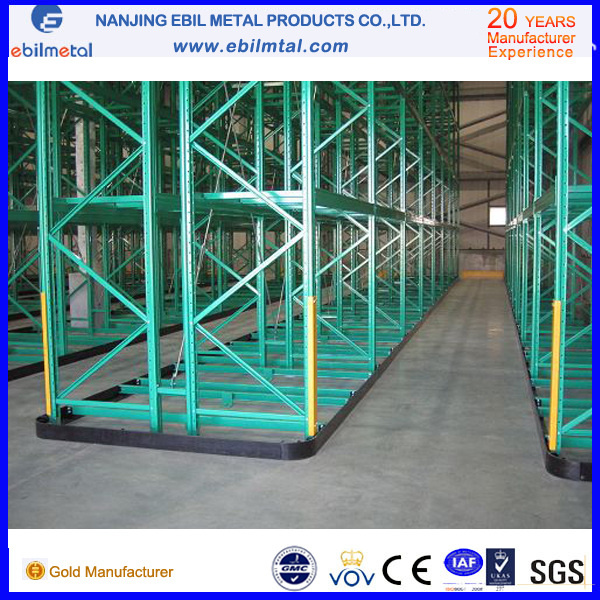

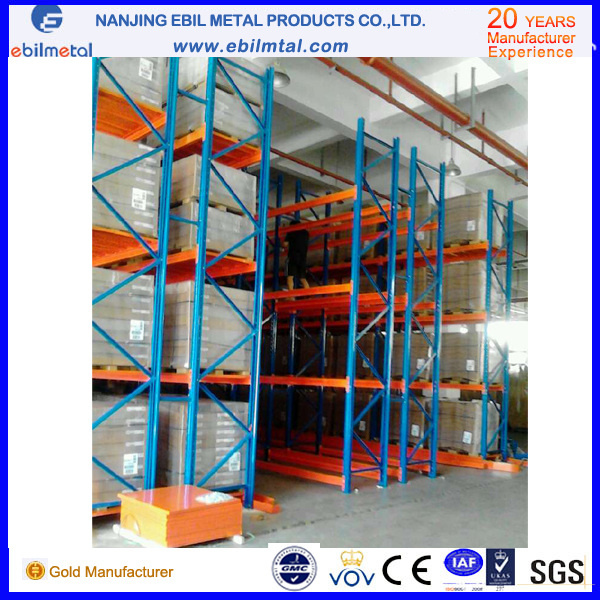

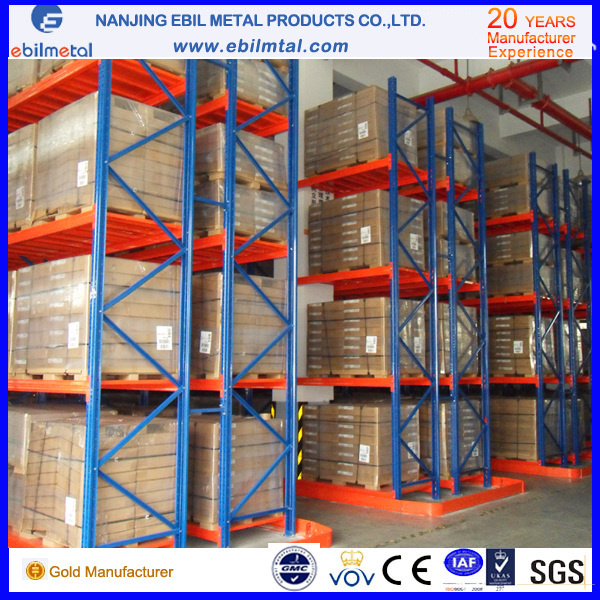

PHOTOES OF VNA RACK:
OUR SERVICE
For new and old import and export customer supply :
1. Solutions simple and regular warehouse rack/metal shelving ,high-end warehouse / complete large-scale Storage logistics system(5000MT/PER MONTH) warehouse planning, conveyance equipment, various racking and storage management.; Optimize your warhouse shipshape; Economize space and cost.
2. A professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology ;Ebil Metal strictly implements ISO9001 Standard in all pperation; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3.Supply Specialized installation guidance and after services that anytime and any country if customer need.
4.Reply your inquiries within 24 hours anytime and anywhere.
Customer need is the most important;customer benefit is our benfit;our grow from company credit and working duty for our new and old customers
Nanjing Ebil Metal Products Co., Ltd
---- Professional and leading manufacturer & exporter for storage racking systems,logistic matchings and other relateed products over 20 years.
---- About 95% of products are exported to more than 100 countries and regions with over 10 years' experience. Over 6000sets project cases designed,manufactured and assembled succesfully.
---- 2 owned manufactories are following as ISO9001:2000 & ISO9001:2008 required systems with 5s management systems,and are audited by SGS corporation successfully.
---- The products have got CE certificates form vov testing laboratiory,european certifying orginization & SGS corporation in series,and products also has passed the testing by TUV.
---- OEM &ODM styles are available.
For new and old import and export customer supply :
1. Solutions simple and regular warehouse rack/metal shelving ,high-end warehouse / complete large-scale Storage logistics system(5000MT/PER MONTH) warehouse planning, conveyance equipment, various racking and storage management.; Optimize your warhouse shipshape; Economize space and cost.
2. A professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology ;Ebil Metal strictly implements ISO9001 Standard in all pperation; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3.Supply Specialized installation guidance and after services that anytime and any country if customer need.
4.Reply your inquiries within 24 hours anytime and anywhere.
Customer need is the most important;customer benefit is our benfit;our grow from company credit and working duty for our new and old customers
FAQ:
1. What makes you different with others?
1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4)Our Export Experience
We are a manufacturer which wholesales storage rack in large quantity for over 20 years.
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.
3.What is the term of payment?
1) T/T payment.
2) LC
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
