Home LED Light Products Top Quality Updated New Glass Ball Plastic Bearings
Top Quality Updated New Glass Ball Plastic Bearings
| Price: | US $ 1.15-100/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | 6300 |
|---|---|
| Structure: | Deep Groove |
| Number Of Row: | Single Row |
| Sample: | Offer |
| Lubrication: | Self-Lubrication |
| Quality: | High Quality |
| Feature: | Long Life,High Speed,Low Noise |
| Materical: | POM Peek PTFE Nylon |
| Tolerance Codes: | ABEC-1,ABEC-3,ABEC-5 |
| Stock: | Large |
| Ball Material: | Zro2 Si3n4 Glass |
Product Description

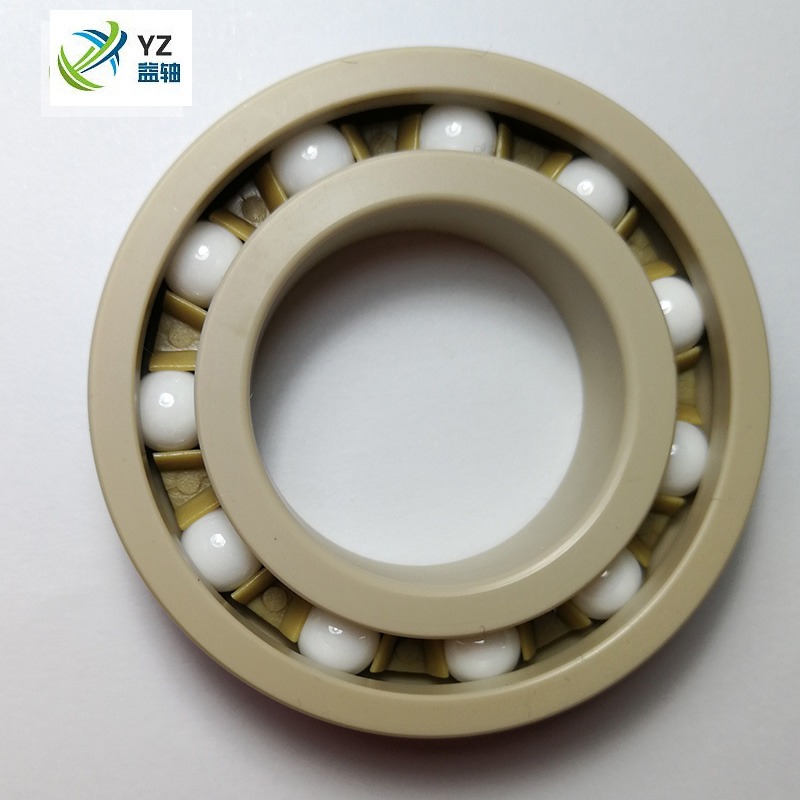

Top quality updated new glass ball plastic bearingsFeature
1.Corrosion resistant:Ptfe and PVDF are excellent corrosion resistant materials which can be used in strong acid and concentrated alkaline occasions.Ptfe has a high temperature of 180 degrees, and PVDF can withstand 150 degree heat.Ptfe has a good comprehensive performance, generally inside and outside the circle, the holder adopts ptfe or PVDF, ball ceramic or glass ball.
2.Resistance to acid and alkali:Pp, hdpe, upe have the advantages of oil free self-lubrication, electrical insulation and anti-magnetic properties.It is easy to deform, the mechanical strength is low, not suitable for heavy load and high speed..But he applies to a relatively weak acid base cross environment, most used in acid, alkali, salt, seawater corrosive environment.Upe has high strength, low friction and low temperature characteristics.
3.High temperature resistance:Peek USES the temperature of about 260 degrees for a long time, and PI USES about 300 degrees for a long time.A material with optimal corrosion resistance in plastic material, suitable for bearing in the corrosive environment of moderate acid and alkali.The material price is more expensive, the use cost is relatively high.
4.Precision plastic bearing:Good self-lubricating, low friction coefficient, high mechanical strength, corrosion resistance and so on.Suitable for operation of precision and high speed bearing.
Deep groove ball bearing typer,material is ceramic bearing
| Type | d | D | B |
| 6000ce | 10mm | 26mm | 8mm |
| 6001ce | 12mm | 28mm | 8mm |
| 626ce | 6mm | 19mm | 6mm |
| 6200ce | 10mm | 30mm | 9mm |
| 6201ce | 12mm | 32mm | 10mm |
| 6202ce | 15mm | 35mm | 11mm |
| 6203ce | 17mm | 40mm | 12mm |
| 634ce | 4mm | 16mm | 5mm |
| 6300ce | 10mm | 35mm | 11mm |
| 6301 | 12mm | 37mm | 12mm |
| 6302 | 15mm | 47mm | 13mm |
| 6700ce | 10mm | 15mm | 4mm |
| 684ce | 4mm | 9mm | 2.5mm |
| 6800ce | 10mm | 19mm | 5mm |
| 694ce | 4mm | 11mm | 4mm |
| 6900ce | 10mm | 22mm | 6mm |
| 6901 | 12mm | 24mm | 6mm |
| 16100ce | 10mm | 28mm | 8mm |
| 16001ce | 12mm | 28mm | 7mm |
Thrust ball bearing Type,material is ceramic bearing or plastic bearing
| Type | d | D | T | r | d1 | D1 |
| 51100 | 10mm | 24mm | 9mm | 0.3mm | 24mm | 11mm |
| 51200 | 10mm | 26mm | 11mm | 0.6mm | 26mm | 12mm |
| 51101 | 12mm | 26mm | 9mm | 0.3mm | 26mm | 13mm |
| 51201 | 12mm | 28mm | 11mm | 0.6mm | 28mm | 14mm |
| 51202 | 15mm | 32mm | 12mm | 0.6mm | 32mm | 17mm |
| 51102 | 15mm | 28mm | 9mmm | 0.3mm | 28mm | 16mm |
| 51103 | 17mm | 30mm | 9mm | 0.3mm | 30mm | 18mm |
| 51203 | 17mm | 35mm | 12mm | 0.6mm | 35mm | 19mm |
| 51204 | 20mm | 40mm | 14mm | 0.6mm | 40mm | 22mm |

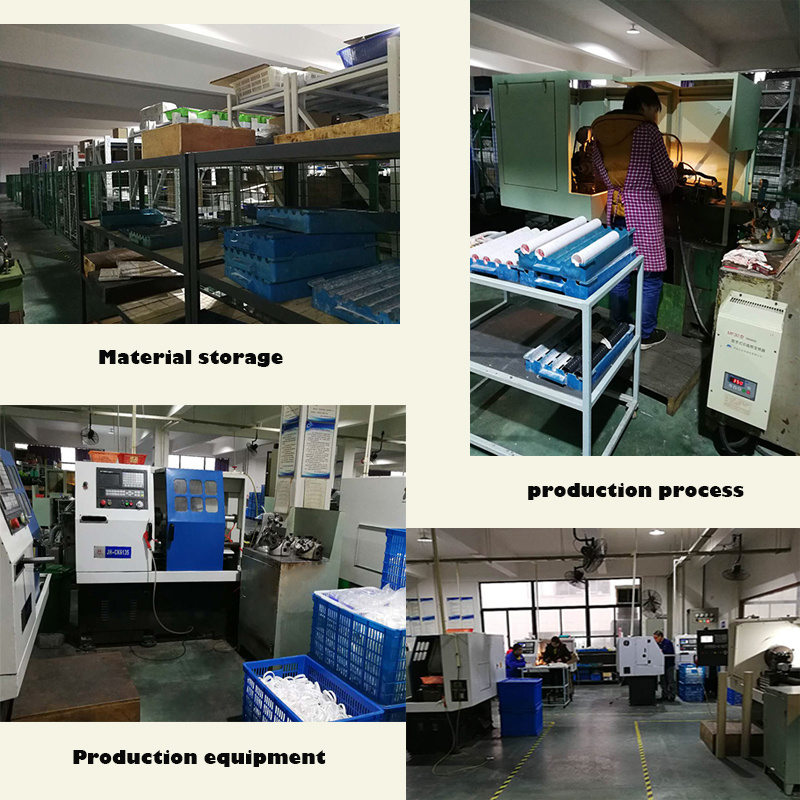

Our Factory Workshop:
Why chose us?
1.FREE SAMPLES:We will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.
Company Information:
Company Name:Hangzhou Yizhou Mechanical And Electrical Equipment Co., Ltd.
Established:Year 2009.
Location:Jianggan District,Hangzhou City,Zhejiang Province.
Main Products:Automotive bearings,industrial bearings,electric bearings,toy bearings,brake discs and so on.
Scale:256 employees,nearly 80 senior professionals.
Service:OEM,customized product,provide the solution
We have advanced automation equipment, perfect testing equipment and methods, standardized process technology, superb technical development team and staff.
Yizhou has established more than 10 domestic and international sales and distribution networks, and our solution is also accepted by many fortune 500 enterprises. Customers' demand and product innovation are the unremitting pursuit of donghuang bearing. Customer expectation and social responsibility are the driving force for the development of Yizhou
FAQ:
1.Can the size and color be customized?
Yes, the size and color can be customized as you like.
2.How about the quality of bearings?
Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
3.Do you offer samples? And is it free or not?
Yes, we will offer the samples and it is free.
How long is your delivery time?
We will deliver the goods within 15 days after your payment.
Hangzhou yizhou electromechanical equipment Co., Ltd. Was established in 2009 in the scenic hangzhou jianggan district.
It is a company specialized in producing and selling bearing machinery for many years.
The main products include automotive bearing, industrial bearing, electrical bearing, toy bearing and brake disc.
The product variety is complete, the precision is high, the quality is superior, can meet the domestic and international customer's demand.
At the same time, in the spirit of good faith, customers' interests first, the pursuit of guarantee service policy, is your choice of reliable partners.
