Top Sale Storage Shelving System From Hegerls
| Price: | Negotiable/Ton |
|---|---|
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | Storage shelving |
|---|---|
| Color&Size: | Optional |
| Raw Material: | Q235 Cold Rolled Steel |
| Width: | 800-3600mm |
| Surface Treatment: | Powder Coating |
| Base Foot: | Removable |
| Upright: | 80/90/100/120/140 |
| Beam: | 80/100/120/140/160 |
| MOQ: | 10 Units |
| Sample: | Available |
| Leading Time: | 5-15 Days |
| Material: | Steel |
| Mobility: | Adjustable |
| Height: | >15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Structure: | Steel Shelving |
| Weight: | 500-5000kg/Layer |
Product Description
Heavy duty pallet steel shelving system in warehouseDescription:
Heavy duty pallet steel shelving. It composed by beams and uprights. Steel shelving is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
| 1. | Feature | A. Pallets can be located, accessed and moved individually. B. Rapid handling of almost all types of pallet used goods. C. Infinitely adjustable and offering a wide range of options and components to accommodate specific needs. D. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. E. Strength and rigidity prevents compression damage to goods. F. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| 2. | Loading capacity & Specification | A. Loading capacity: 500-4000 kgs UDL/layer. B. Height: 1000-30000mm C. Depth: 400-1500mm D. Length: 1500-3600mm E. Special sizes also available to specific storage needs |
| 3. | Parts | A. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. B. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., C. Adjusted by 50-75mm pitch D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components |
| 4. | Material | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China |
| 5. | Finish | Epoxy power coated / Glavanize |
| 6. | Quick Delivery | Within 20 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| 7. | SGS test | Union's racking can be tested by international authority test organization, most of our customers like to be tested by it. It is also a trend of it in the future |

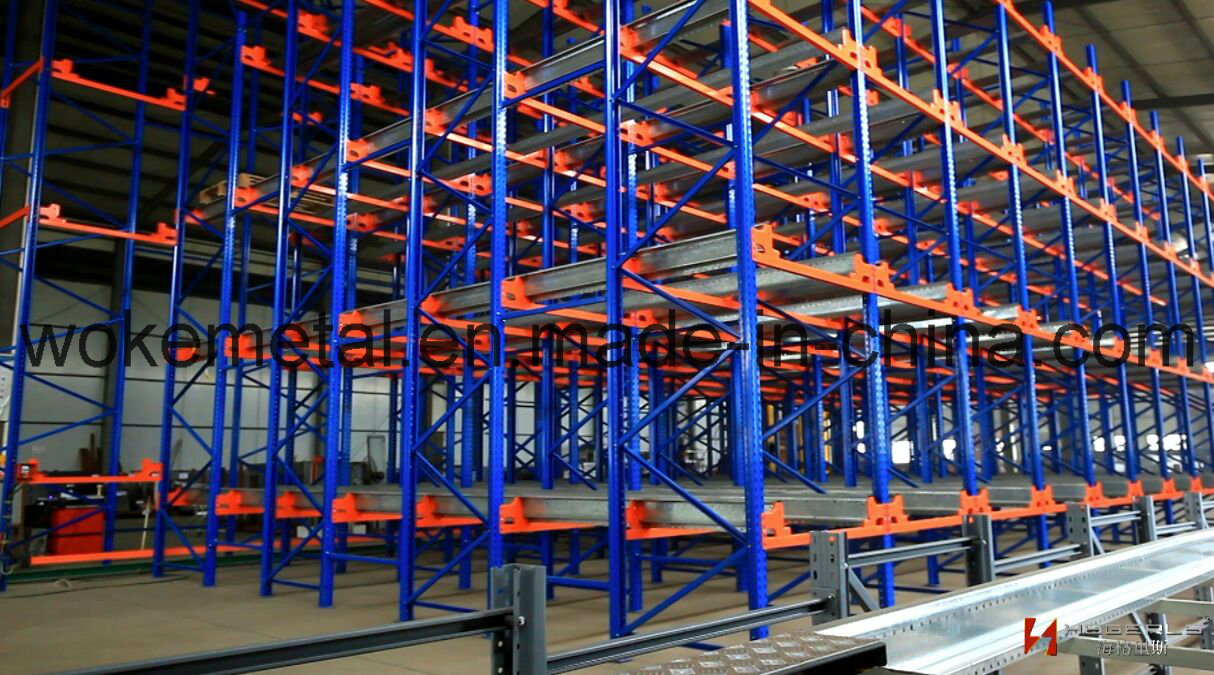

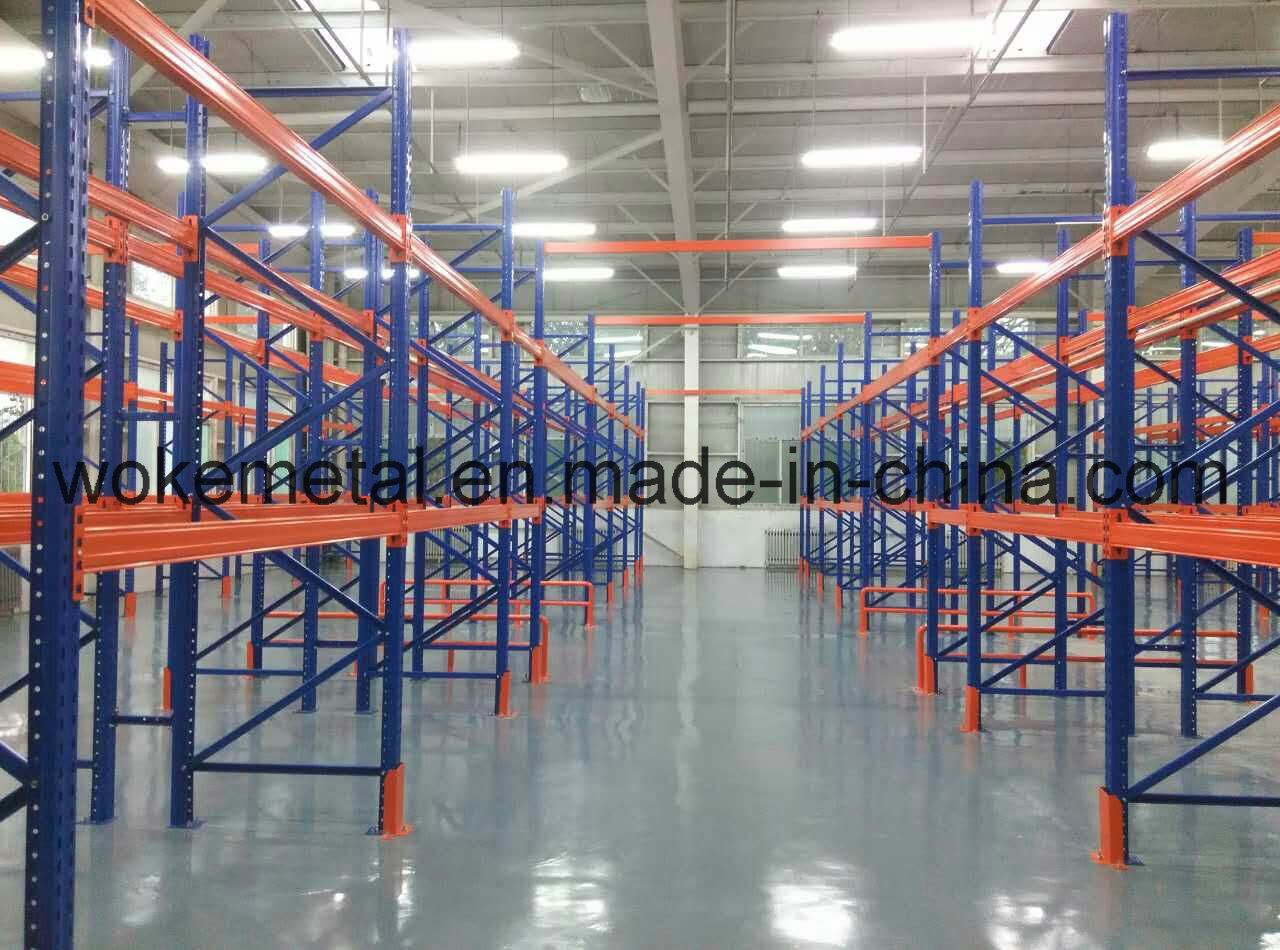

Sample pictures

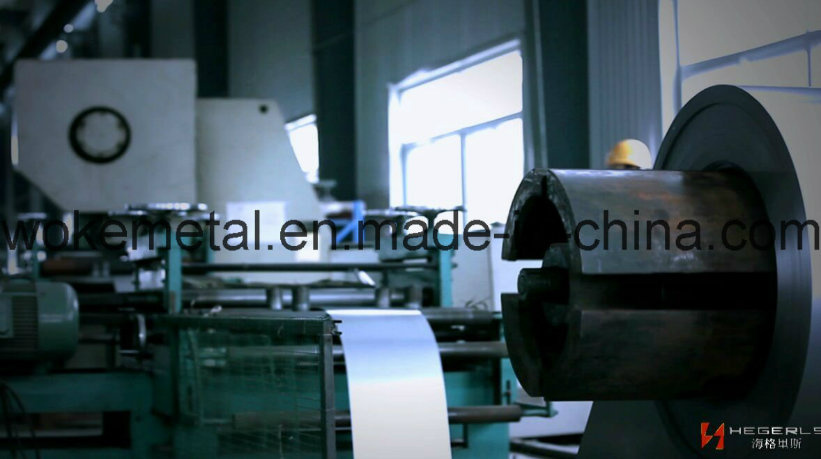

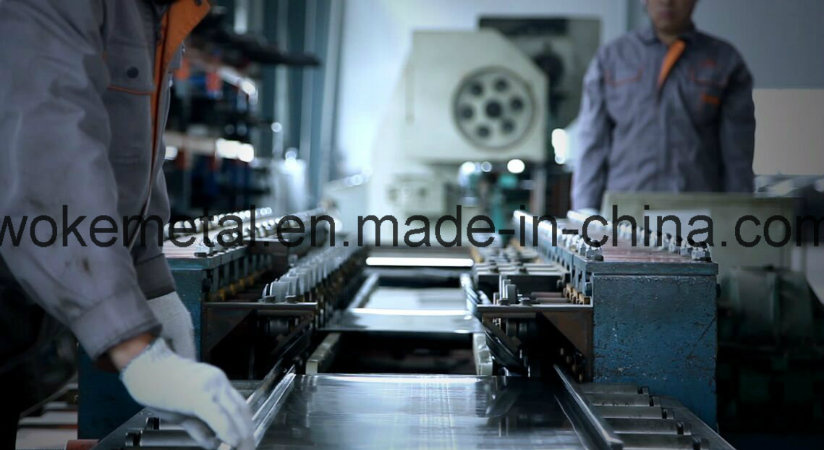

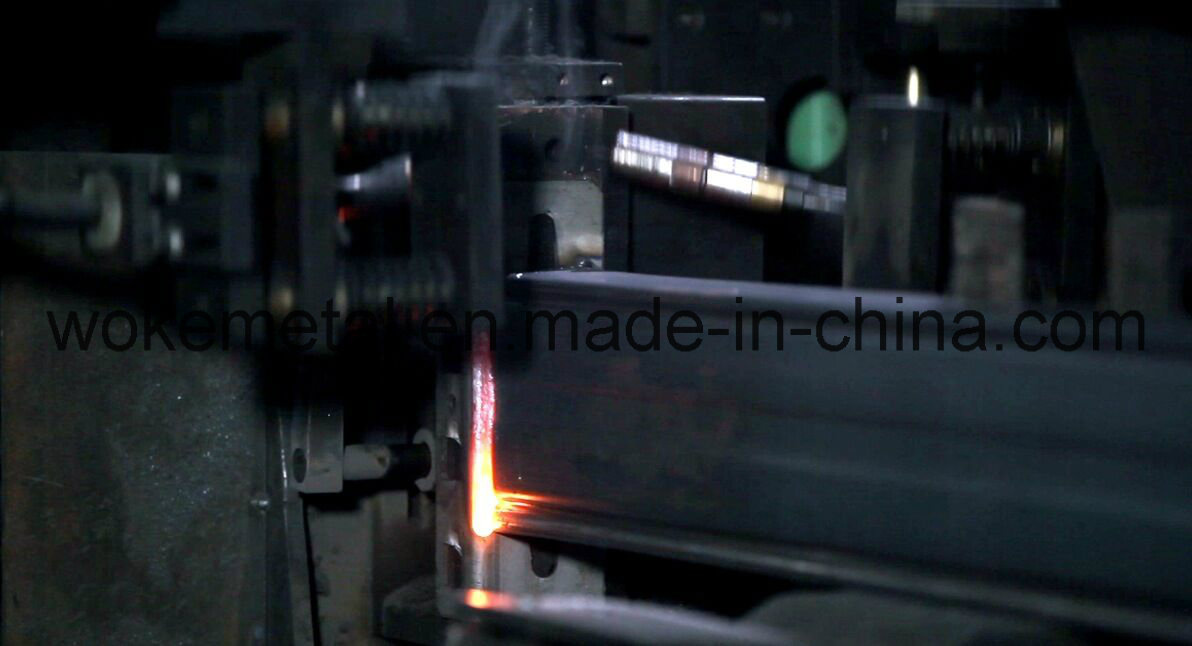

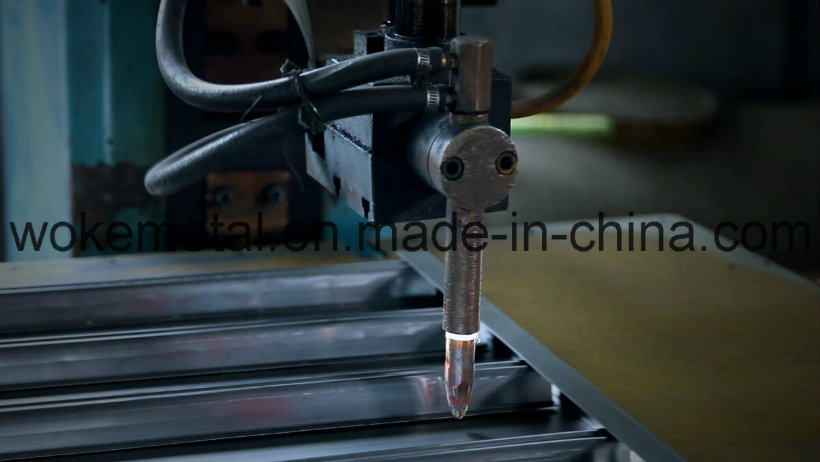

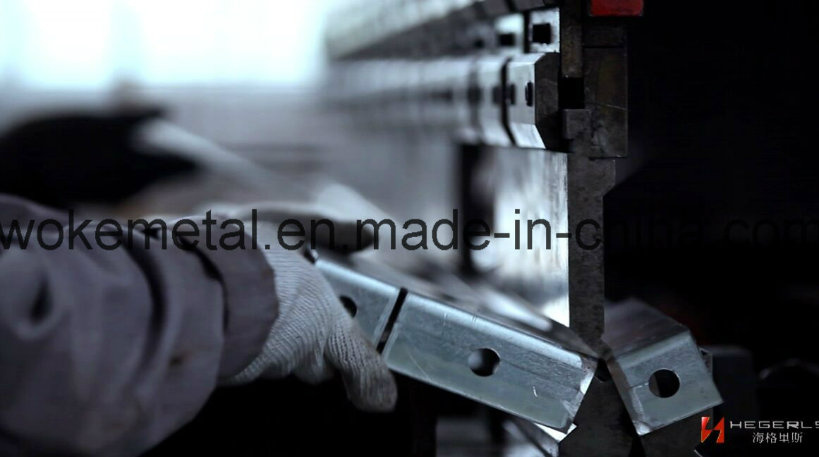

Production line
Ewa Zhang
Hebei Woke Metal Products Co,.Ltd
Website :www.woke-hercules.com
Address: North of Shidai Road, Xinhe County, Hebei Province.
Mobile +8615830980952
Hebei Woke Metal Products co Ltd founded in 1996, the headquarters and two sales company is located in Shijiazhuang hebei province, the production base is located in Hebei Xinhe industrial zone. We are partisan council unit of the China Storage & Distribution association/Hebei province modern logistics association and Hebei province e-commerce association. "HEGERLS" is ours registered trademark.
We can supply project plan design, supermarket and storage equipment and facilities installation, operation and management personnel training, supply series products, business planning and after-sales service, e-commerce etc. Our products and services has covered nearly 30 domestic provinces, cities and autonomous regions, products are exported to Europe, America, Middle East, Latin America, southeast Asia and other countries and regions. Annual sales of nearly 230 million yuan. More than 300 staffs, own production base and experimental centre, equipment research and development team, installation and after-sales service team, with senior technicians and senior engineer titles nearly 60. Company production base has the world advanced production assembly line 48.10 national patents of radio shuttle cart, stacker, mobile shelves, won the SGS, TUV certificate and ISO9001 certification.
In recent years, completed the domestic projects including: Sinopec storage project, Shanxi YunCang storage & distribution project, JiLin Long-Mart storage and distribution center project, Anguo Zhengtai Storage & distribution center project, Beiguo Goup supermarket chains, Guoda chain convenience stores, Hebei province expressway service area series of convenience stores and distribution centers, Junlebao dairy warehousing projects, etc.
Overseas projects: Sweden SwedMart warehouse project, Chile fisheries association Oscar refrigeratory AS/RS projects, Algeria FACTO storage projiects, Thailand JM Group AS/RS projects, FX Group South Africa AS/RS projects, AALM company UAE AS/RS projects. Automatic sorting stacker in FX Group South Africa AS/RS projects is domestic initiative within international leading level.
