Ultrasonic Paper Tea Cup Machine (JBZ-S12)
| Price: | US $ 6999-8999/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JBZ-S12/S16/S22 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Jbz-S12 |
| Capacity: | 45-55PCS/Min |
| Cup Size: | 2.5-12oz |
| Raw Material: | Single and Double PE Coated Paper |
| Power Source: | 380V.50Hz/220V, 60 Hz |
| Total Power: | 6.5kw |
| Net Weight: | >1600kg |
| Package Size: | 2800*1350*1800mm& 800*750*1300mm |
| Air Source: | 0.18m³/Min;0.6MPa |
| Package: | Stable Wooden Case |
| Speed: | 40-60pcs/min |
| Required Paper: | Single Side PE Coated Paper |
| Certification: | CE |
| Condition: | New |
| Cup Size(',Ounce): | 2.5-16oz |
| Logo Printing: | as Cuttomer Required |
Product Description

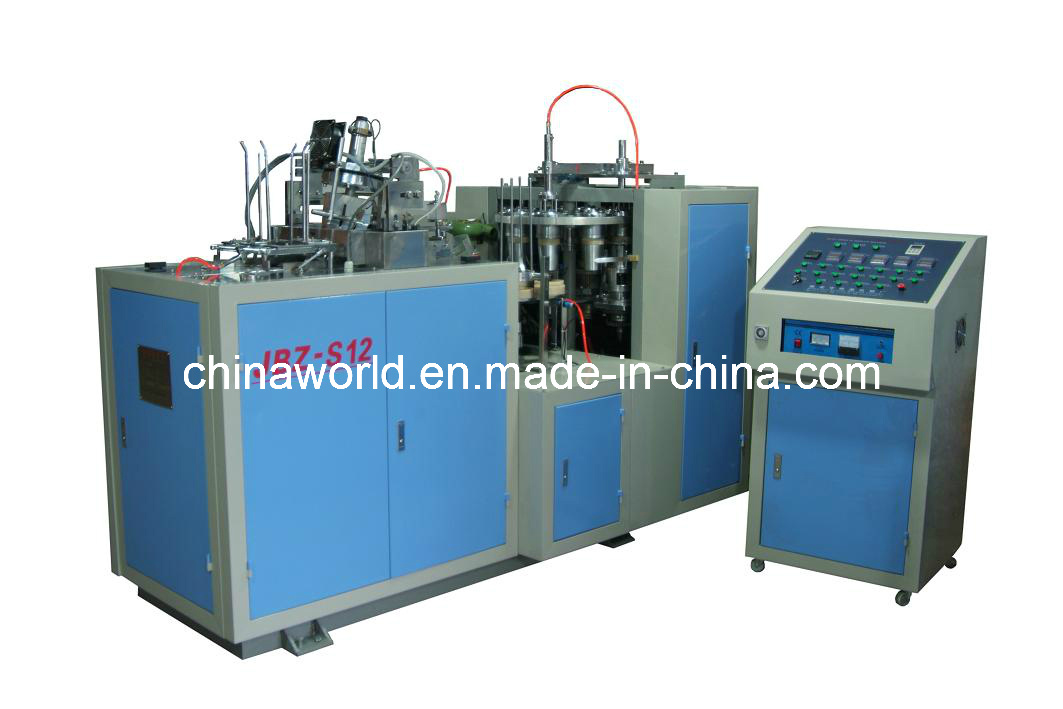

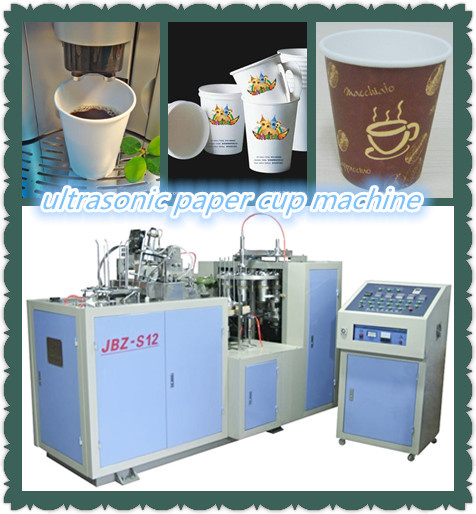

JBZ-S12 Model Ultrasonic Paper Cup Making Machine
JBZ-S12 double-sided PE coated paper cup forming machine is a multistation full-automatic machine producing double-sided PE coated drink cups, ice cream cups or conical vessels of other food through continuous process of paper feed, ultrasonic medium welding, tube forming, cup rabbet lubrication, oil injection, bottom flushing, duplex bottom heating, bottom knurling, upper mouth hemming and finished product stacking. Because of ultrasonic adhesion technology, the product is suitable for double-sided PE coated paper full printed drink cups, ice cream cups and other conical vessels.
Main Characteristics:
1. Adopt ultrasonic wave technology bonding, which ensures high bonding strength and handsome appearance.
2. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
4. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)
5. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
6. The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.
7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
8. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/, and is free of water seepage and water leakage.

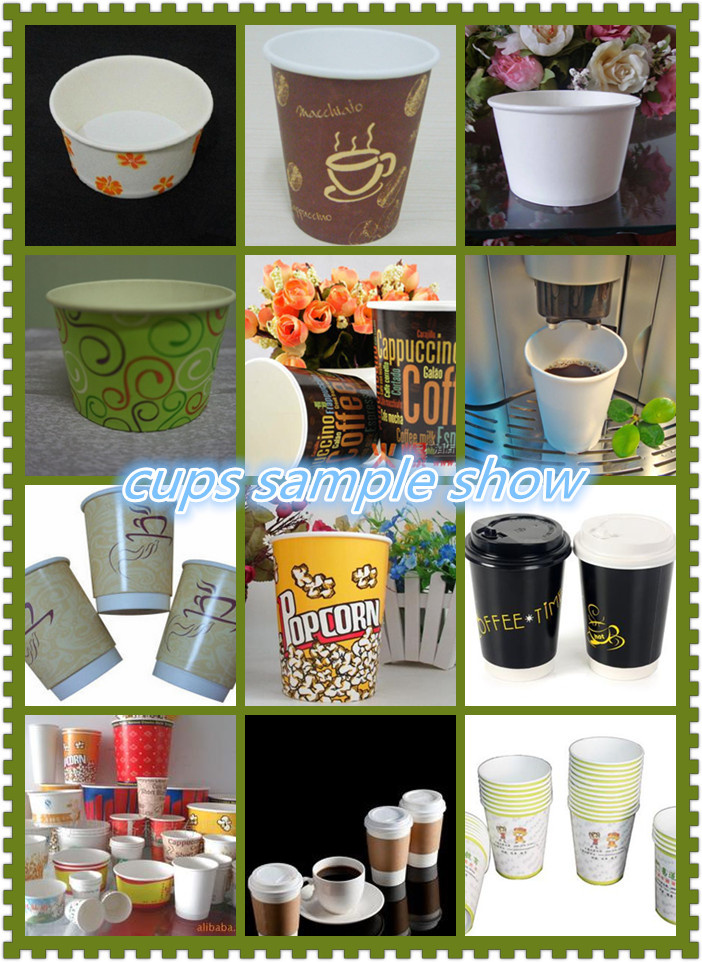

PRODUCTS SAMPLES Show
| Model | JBZ-S12 | JBZ--S16 | JBZ-S22 |
| Specification of paper cup | 6oz,8oz,12oz | 12oz ,14 oz ,16oz | 16oz, 22oz |
| Paper material | Single-sided or double-sided PE coated paper | Single pe or double pe coated paper | Single pe or double pe coated paper |
| Outer diameter of cup rabbet | 50-95 | 50-95 | 50-95 |
| Outer diameter of cup bottom | 35-70 | 35-70 | 35-70 |
| Cup height | 50-120 | 100-150 | 100-175 |
| Bottom depth | ≤10 | ≤10 | ≤12 |
| Conicity | 2-8o | 2-8o | 2-8o |
| Rated productivity | 40-50pcs/min | 35-45pcs/min | 30-40pcs/min |
| Power supply | 380v 50HZ | 380v 50HZ | 380v 50HZ |
| Total power | 6.5KW | 8KW | 8KW |
| Weight | 1600kg | 1700kg | 1900kg |
| Packing size(L*W*H) | 2800x1350x1800mm (main body) 800x750x1300mm (panel board box ) | 3000×1450×1900mm(main body) 800×750×1350mm(panel board box ) | 3300×1450×2000mm(main body) 800×750×1350mm(panel board box ) |
| Air Pressure Request | 0.2m3/min;0.6MPa (provided by customer) | 0.2m3/min;0.6MPa (provided by customer) | 0.2m3/min;0.6MPa (provided by customer) |
Package and shipping

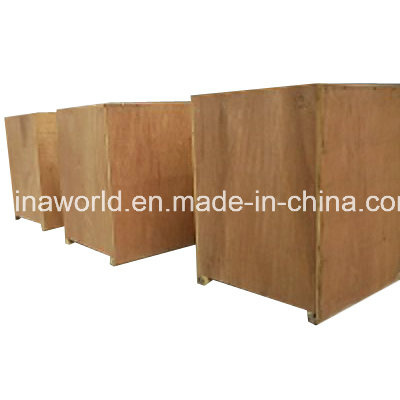

The Machine are packed in stable export standard wooden case
Guarantee terms:
12 month guaramtee , Long term technique support!
The seller guarantee the machines are new (or unused) and the guarantee period will be given 12 (twelve) months which starts from the date of the machine's arrival. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the round trip tickets and accommodation expenses for seller's technicians.
We support technical support for long term.
