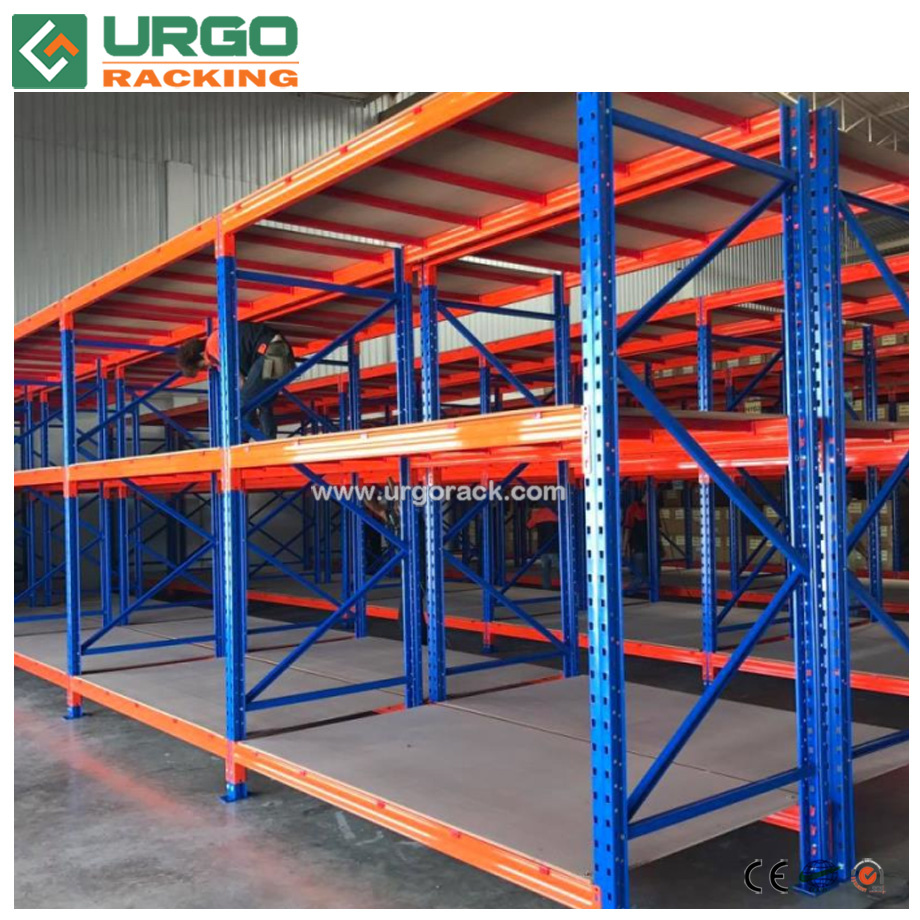

Price: | Negotiable/Set |
---|---|
Min Order: | 20/Set |
Pay Type: | L/C,T/T |
Prod Model: | PR201706 |
---|---|
Material: | Steel |
Structure: | Rack |
Mobility: | Adjustable |
Height: | 5-15m |
Closed: | Open |
Development: | New Type |
Serviceability: | Common Use |
Weight: | 500-4000 |
Features | 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. |
Beam & Frame | 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck |
Main Parts Specs | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
Load Capacity & Dimension | 1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Specail sizes also avaiable to specific storage needs. |
Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |

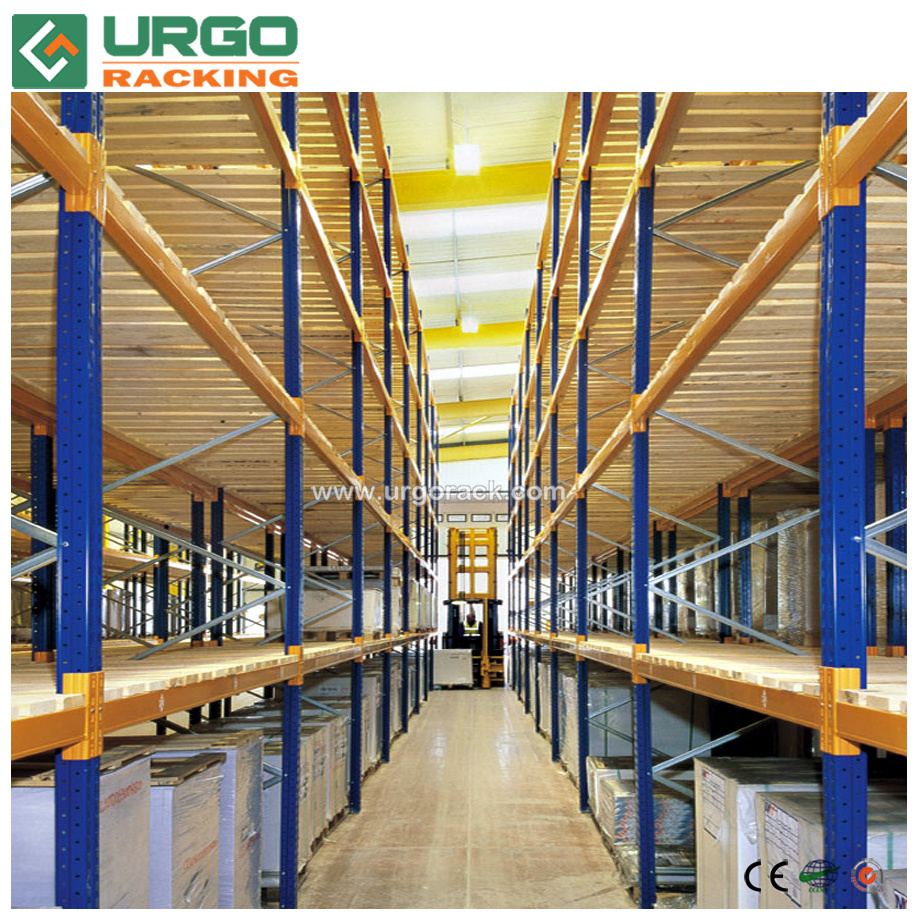

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.

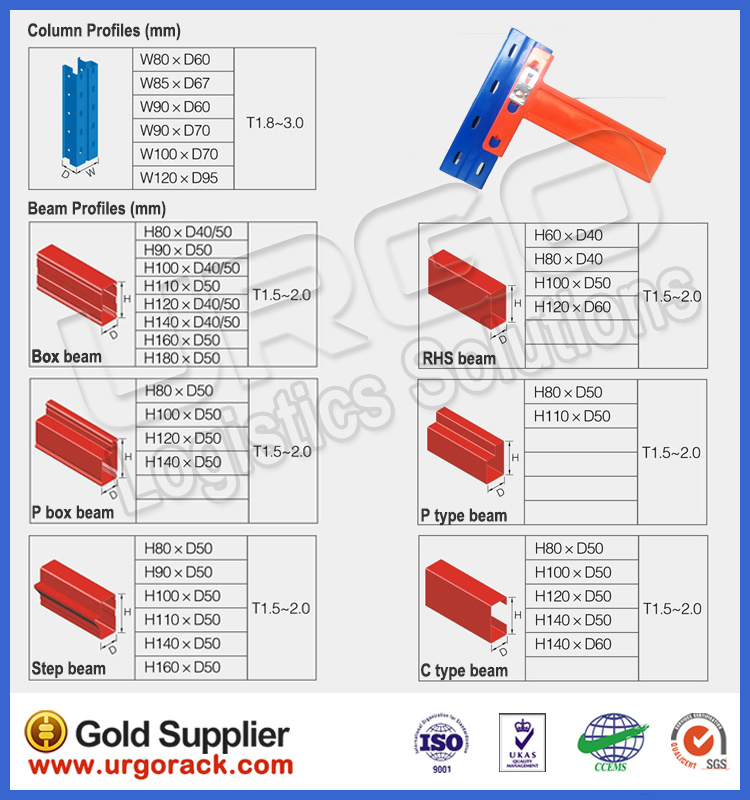

Column Profiles:
Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
W80 x D60 | 1.8-2.0 | 4000-6000 KG |
W85 x D67 | 1.8-2.3 | 7500-12500 KG |
W90 x D60 | 1.8-2.5 | 8000-10000 KG |
W90 x D70 | 1.8-2.5 | 10000-12000 KG |
W100 x D70 | 2.0-2.5 | 11000-14000 KG |
W120 x D95 | 2.3-3.0 | 17000-21000KG |

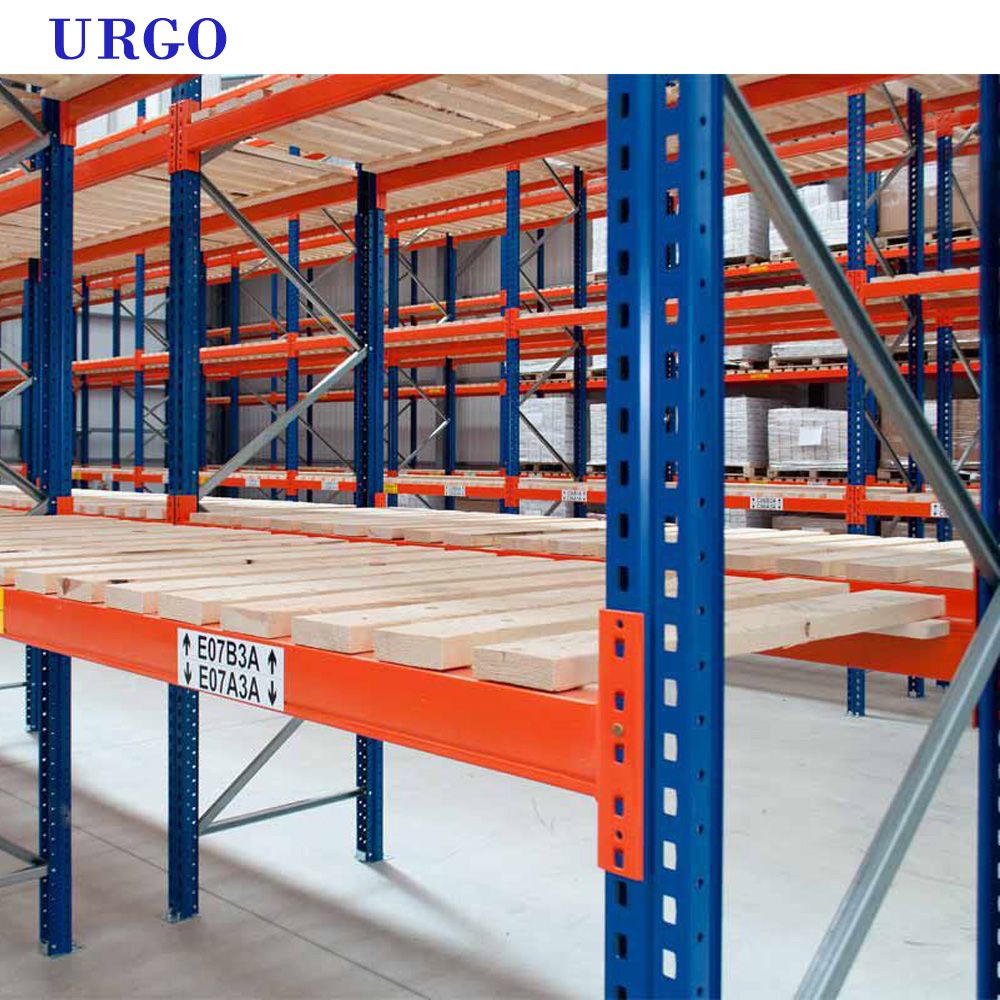

Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 |
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

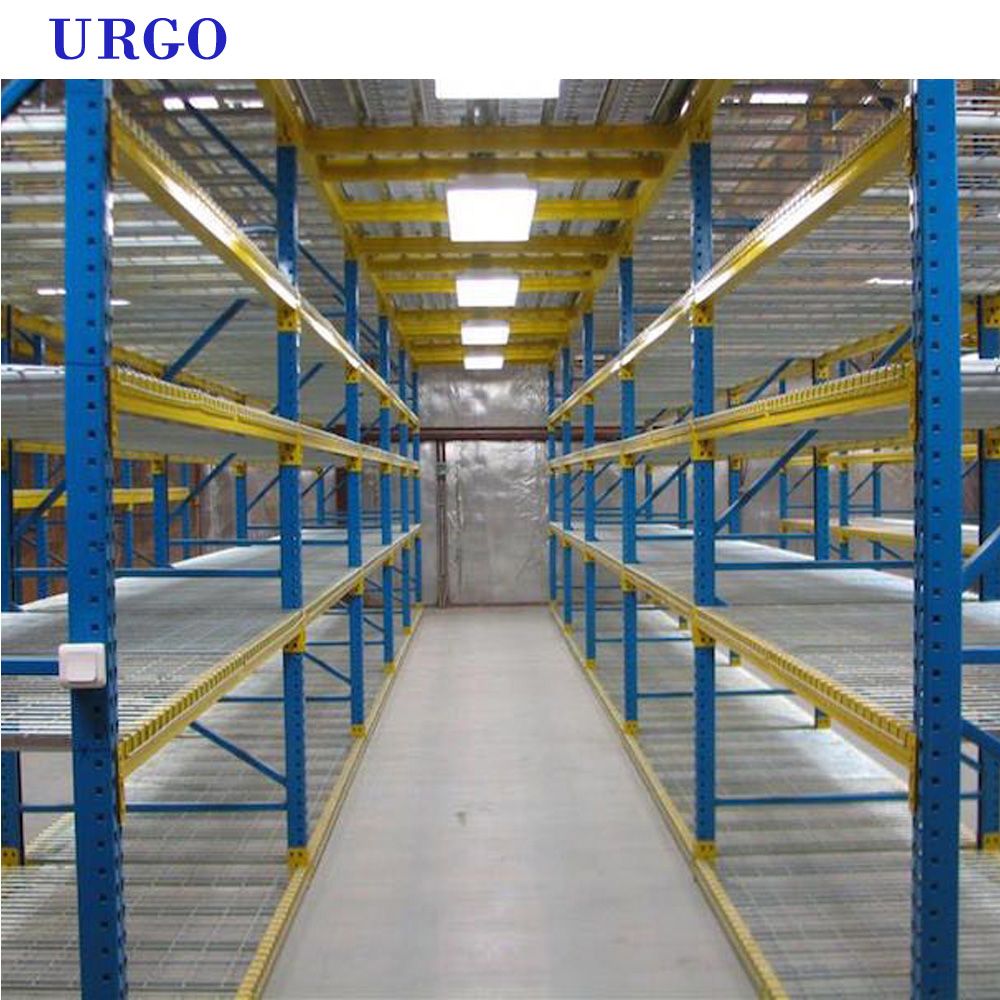

Main Spare Parts Profiles:

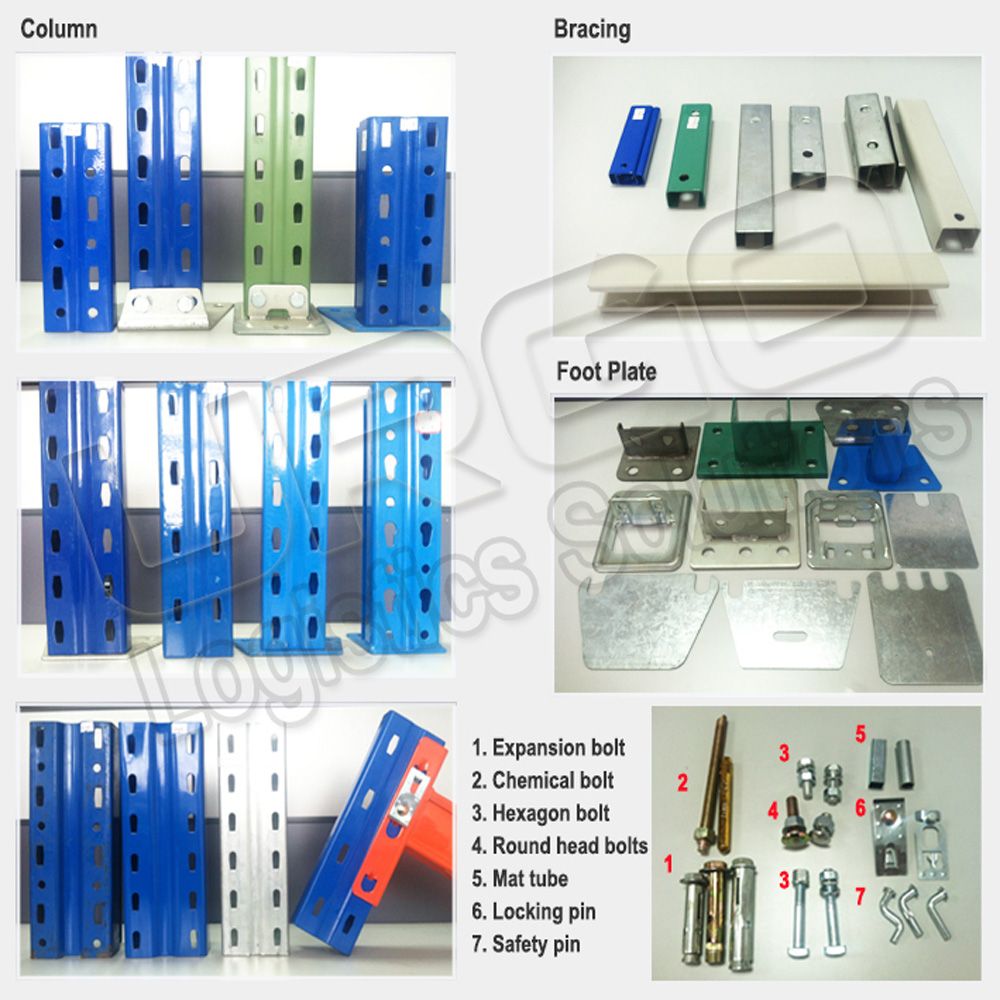

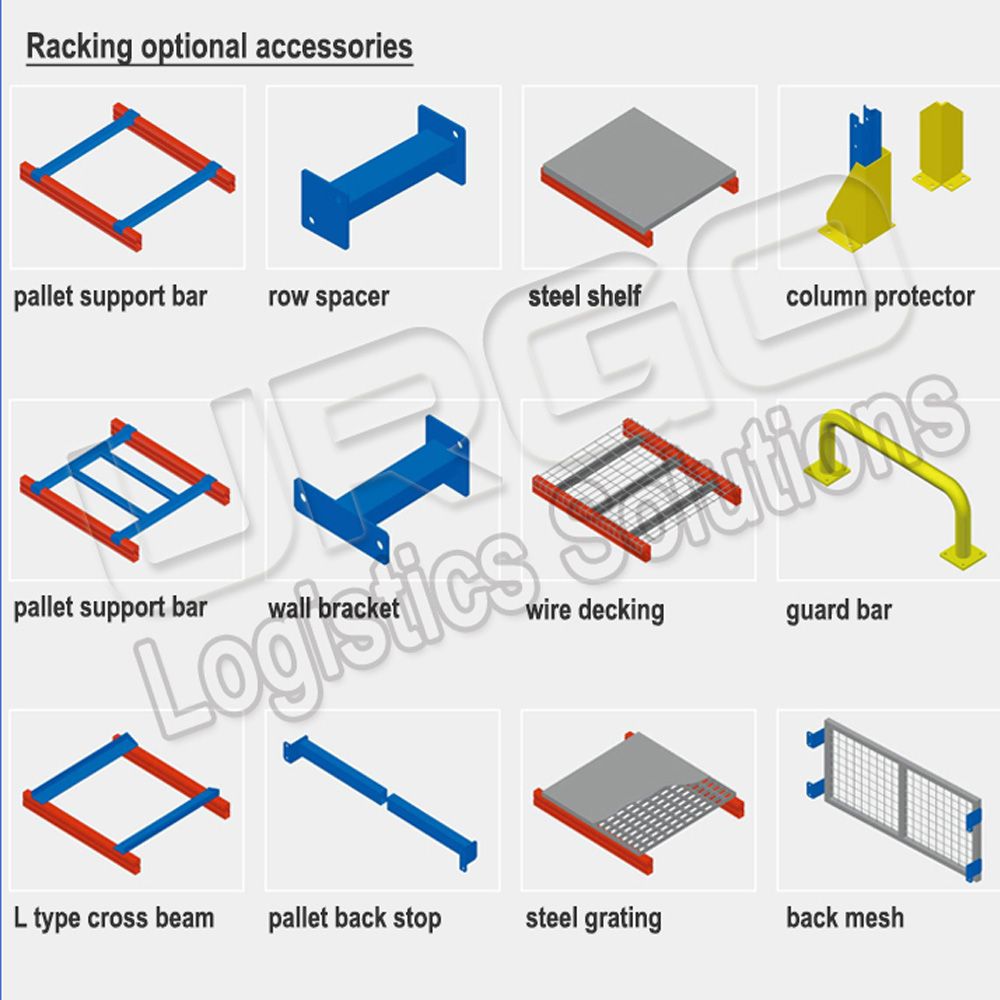

Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
